Page 44 December 2007
Rough Terrain Scissors
Component Identification (Special Options) Operation - Section 3
3.6 Component Identification (Optional
Equipment/Attachments)
This following descriptions are for identification,
explanation and locating purposes only of optional
equipment.
3.6-1 Generator/Outrigger Control Console
(If Equipped)
The outrigger control console is located next to the
platform control console. These switches control the
outriggers’ extension and retraction.
5
1
2
4
3

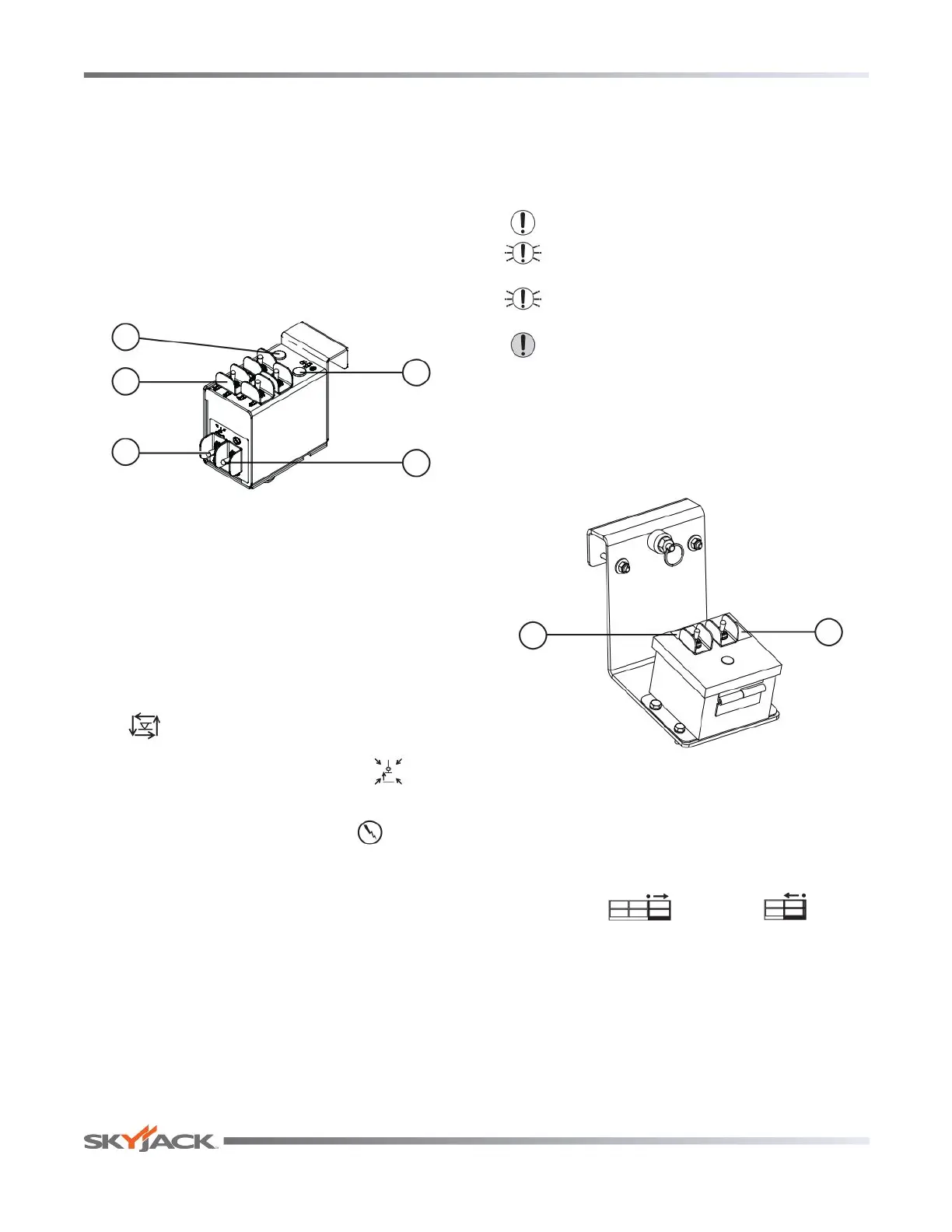

Figure 3-5. Outrigger Controls with All Options on
Auxiliary Control Console
1. Generator Switch - This switch activates the
generator.
2. Outrigger Extend/Retract Switches - These
switches control the extension and retraction of
each individual outrigger.
3. Auto-Level Switch - When this switch is in the
extend position, each outrigger will extend
and automatically adjust until the aerial platform
is level. When the switch is in the
retract
position, the outriggers will retract.
4. Outrigger Enable Switch - This outrigger
enable switch, when in the extend or retract
position, activates the functions on the auto-
level switch and the outrigger extend/retract
switches.
5. Leveling Indicator Light - This light functions
when the auto and manual level functions are in
use and illuminates to display the status of the
auto-leveling outriggers. The indicator light has
the following states:
Off: The outriggers are fully retracted.
Flashing Rapidly: The outriggers are extending
or retracting.
Flashing: Not all outrigger legs have firm
ground contact or aerial platform is not level.
On: The outriggers are extended and the
platform is level.
3.6-2 Powered Extension Control Console
(If Equipped)
This control console is mounted on one of the extension
platform guardrails. It contains the following controls:
2
1
Figure 3-6. Powered Extension Control Console
1. Enable Switch - This switch, when activated and
held, allows the extension platform extend/retract
switch functions to operate.
2. Extend/Retract Switch - This switch, when
activated, “ ” extends or “ ” retracts
the powered extension platform. Refer to
Section 3.8-8 on how to extend/retract the powered
extension platform.
