Rough Terrain Scissors
Floor Loading Pressure

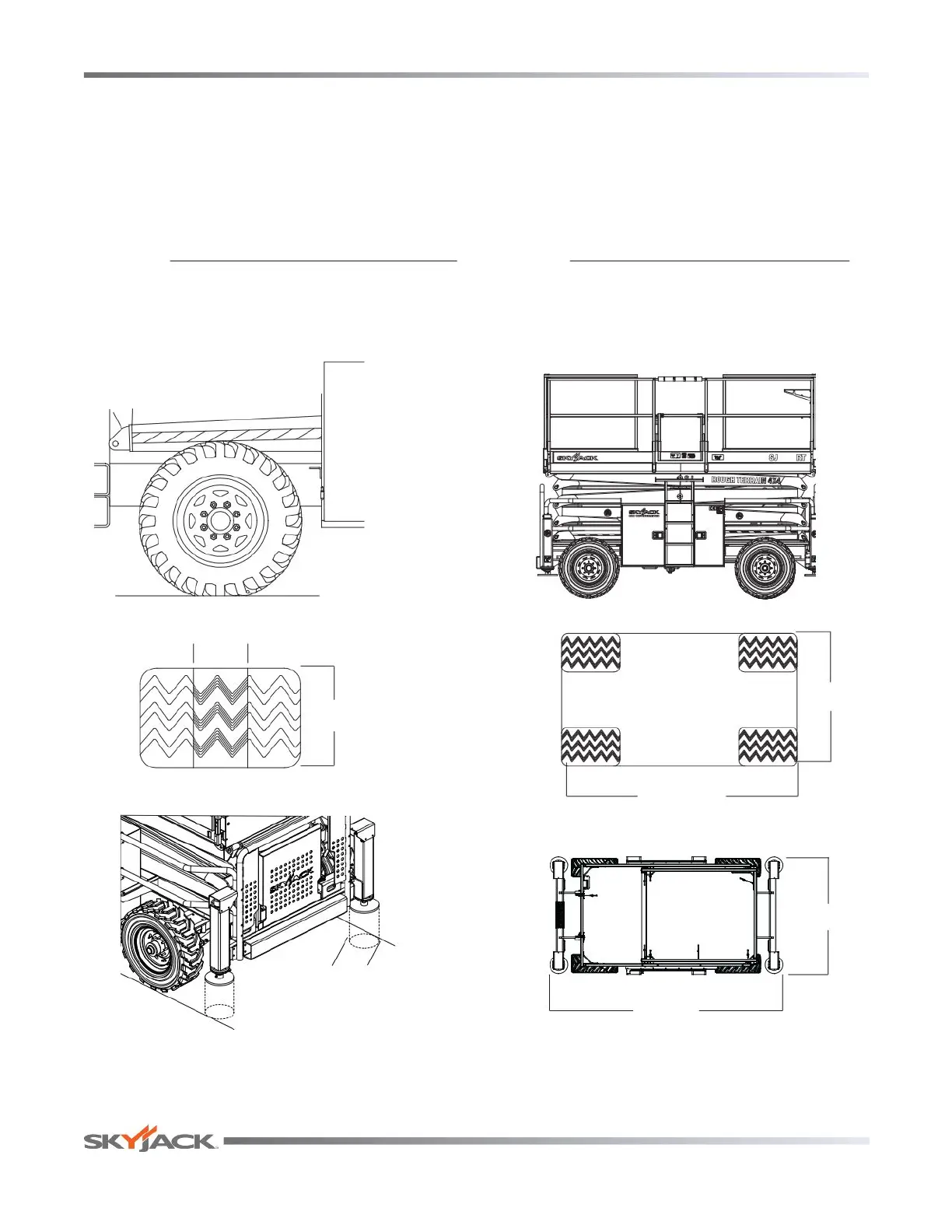

Locally Concentrated Pressure (LCP): Overall Uniform Pressure (OUP):
Foot Print Area = Length x Width
= πr
2
Base Area = Length x Width
LCP =
Weight of Aerial Platform + Capacity
Foot Print Area x 4 (Tires)
OUP =
Weight of Aerial Platform + Capacity
Base Area
Width
Length
Length
Width
Diameter (D)
Length
Width
