SKYLUX Climalux - Gutter Rafter for Roof with Overhang

01/05/2020
33/56
E_MH_Mounting_instructions_Skylux_Climalux
Gutter rafter for roof with overhang
Components
gutter combination (with reinforced profile)
GDX + GDCX (+ V14105)
Preparation
* The reinforcement profile V14105 is not supplied. It can be bought at any local hardware store.
We recommend treating the reinforcement profiles with an anti-corrosion product.
117
190
100
140
GDX
GDCX
V14105

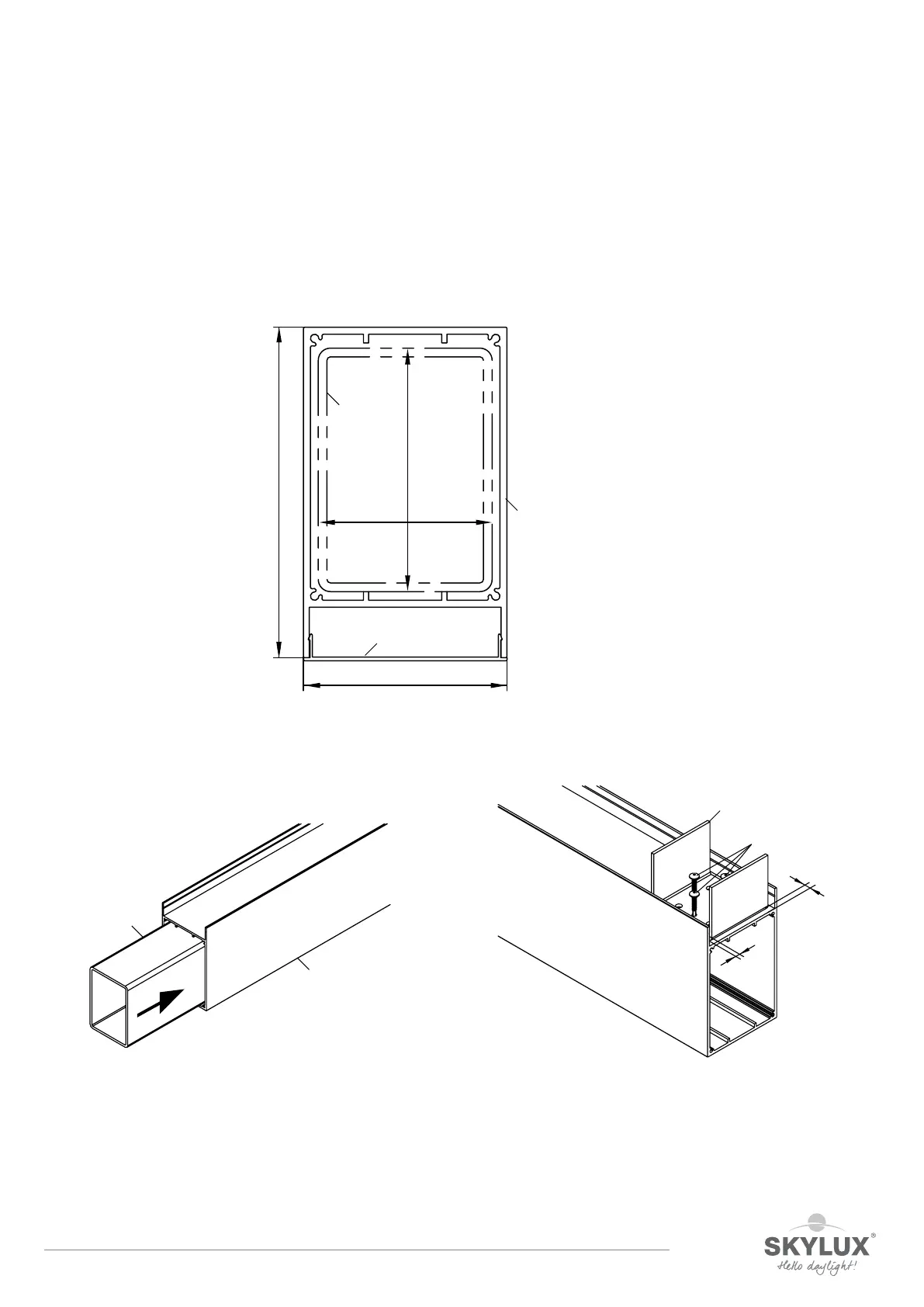

Installation of the U-bracket PUX.Slide in the reinforcement profile V14105 (not supplied).
Fixing the reinforcement profile V14105 on to the GDX (top
and bottom) has a favourable influence on the solidness.
V14105
GDX
3,8
7,7
PUX
ZSB (4x)
