4.2.1 ITRAY-200R Pin-out
Note: In the following figures, Bay B refers to the upper bay connector (with 106 pins), and Bay A
refers to the lower bay connector (with 30 pins).
The following figures illustrate the ARINC 404 pin callouts using drawings, pin names, and pin
descriptions.

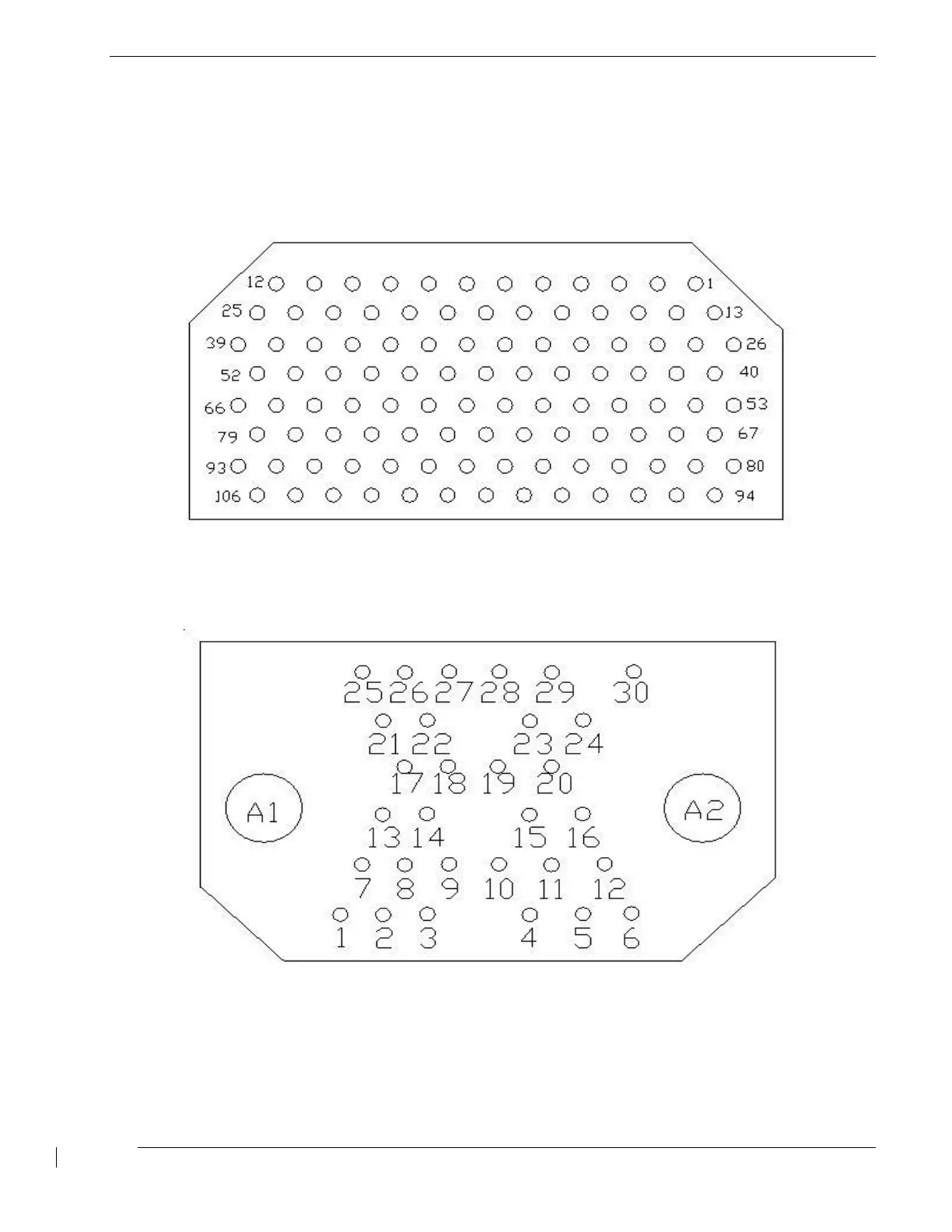

Figure 3— ARINC404 Bay B: 106 pin-out drawing
Figure 4 — ARINC404 Bay A: 30 pin-out drawing
