Skytrak 6042 - Flange Code (FL61 & FL62) - Inch Fasteners

General Information and Specifications
2-75
6036, 6042, 8042, 10042, 10054 31211015

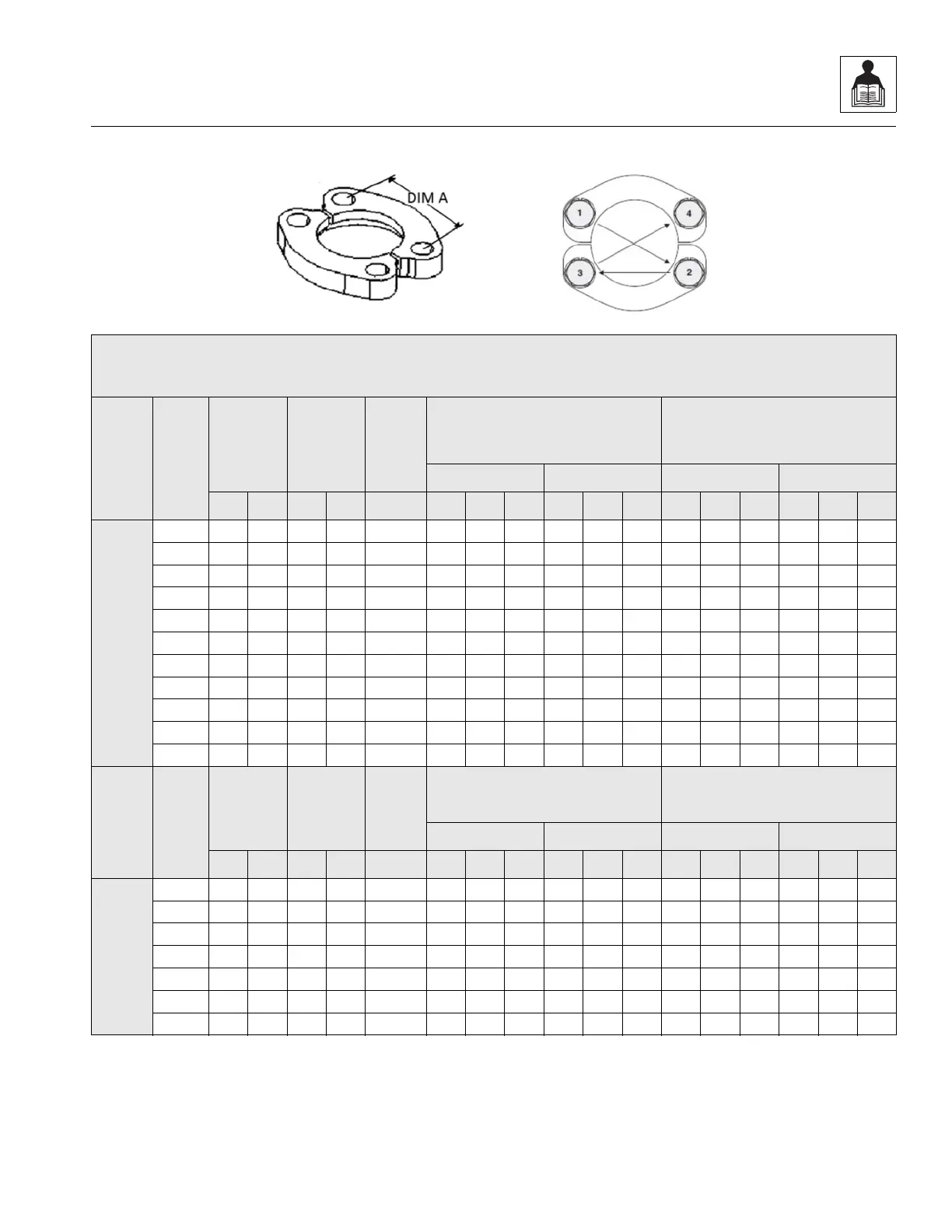

a. Flange Code (FL61 & FL62) - Inch Fasteners
TYPE/FITTING IDENTIFICATION
STEEL 4-BOLT FLANGE SAE J518
(INCH FASTENERS)
Type
Inch
Flange
SAE
Dash
Size
Flange
Size
A*
Bolt
Thread
Size
Fastener Torque for
Flanges Equipped with
GRADE 5 Screws
Fastener Torque for
Flanges Equipped with
GRADE 8 Screws
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(in) (mm) (in) (mm) (UNF) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
CODE 61
SPLIT
FLANGE
(FL61)
8 0.50 13 1.50 38.10 5/16-18 18 19 19 24 25 26 24 25 26 32 34 35
12 0.75191.8847.753/8-16323335434547444649606366
16 1.00252.0652.323/8-16323335434547444649606366
20 1.25 32 2.31 58.67 7/16-14 52 54 57 70 74 77 68 71 75 92 97 101
24 1.50 38 2.75 69.85 1/2-13 77 81 85 105 110 116 111 116 122 150 158 165
32 2.00 51 3.06 77.72 1/2-13 77 81 85 105 110 116 111 116 122 150 158 165
40 2.50 64 3.50 88.90 1/2-13 77 81 85 105 110 116 111 116 122 150 158 165
48 3.00 76 4.19 106.43 5/8-11 155 163 170 210 221 231 218 228 239 295 310 325
56 3.50 89 4.75 120.65 5/8-11 155 163 170 210 221 231 218 228 239 295 310 325
64 4.00 102 5.13 130.30 5/8-11 155 163 170 210 221 231 218 228 239 295 310 325
80 5.00 127 6.00 152.40 5/8-11 155 163 170 210 221 231 218 228 239 295 310 325
Type
Inch
Flange
SAE
Dash
Size
Flange
Size
A*
Bolt
Thread
Size
Fastener Torque for Flanges
Equipped with GRADE 5 Screws
Fastener Torque for Flanges
Equipped with GRADE 8 Screws
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(in) (mm) (in) (mm) (UNF) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
CODE 62
SPLIT
FLANGE
(FL62)
8 0.50 13 1.59 40.39 5/16-18 -- -- -- -- -- -- 24 25 26 32 34 35
12 0.75 19 2.00 50.80 3/8-16 -- -- -- -- -- -- 44 46 49 60 63 66
16 1.00 25 2.25 57.15 7/16-14 -- -- -- -- -- -- 68 71 75 92 97 101
20 1.25 32 2.62 66.55 1/2-13 -- -- -- -- -- -- 111 116 122 150 158 165
201.25322.6266.55-- ------------------------
24 1.50 38 3.12 79.25 5/8-11 -- -- -- -- -- -- 218 228 239 295 310 325
32 2.00 51 3.81 96.77 3/4-10 -- -- -- -- -- -- 332 348 365 450 473 495
NOTE: * A dimension for reference only.
MAE9480
