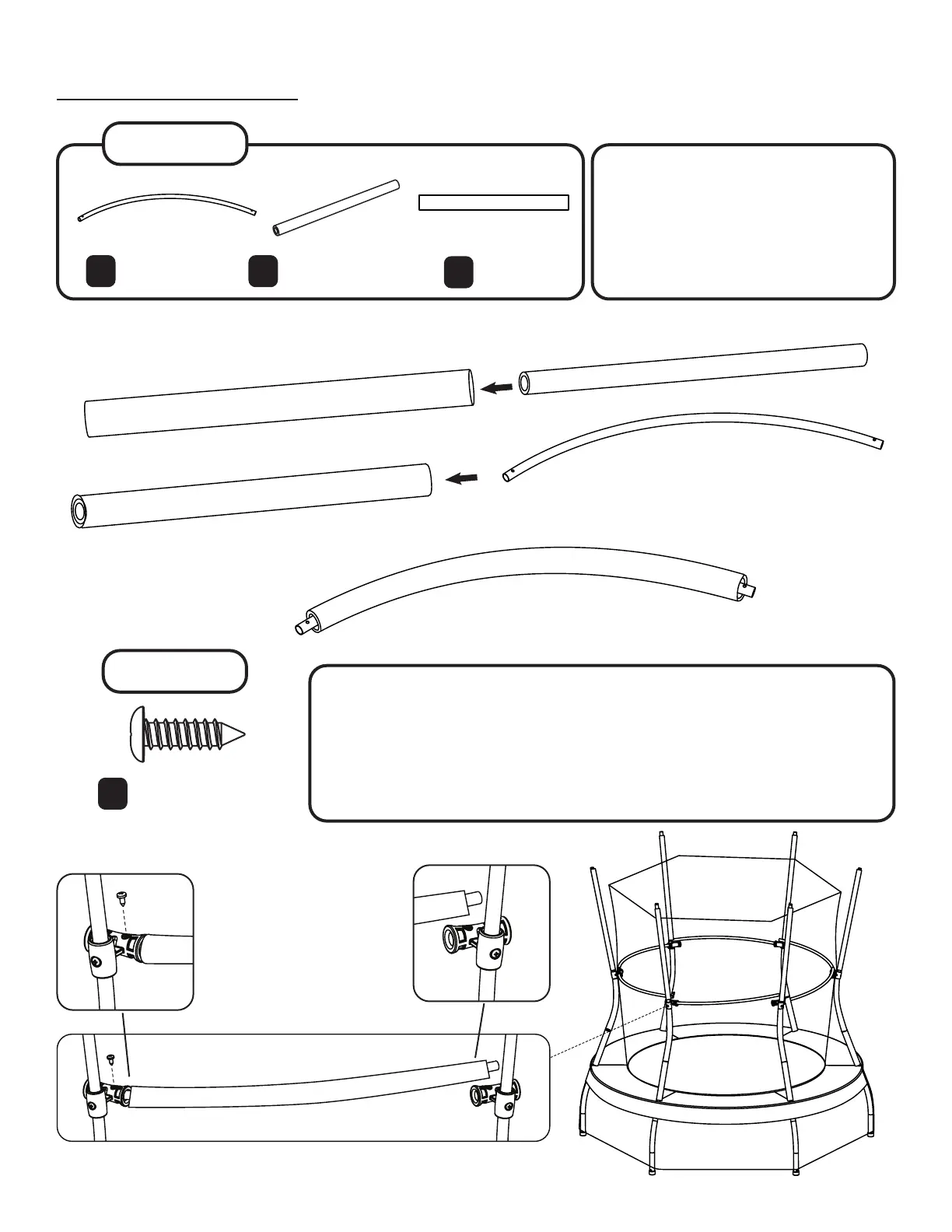

STEP 15
4
12
13
ASSEMBLY
14
Insert a rail foam (12) into a sleeve (13).
Then insert a rail (4) into the foam you
just placed inside the sleeve.
Rail (x6)
Rail Foam 23.4” (595 mm)
(x6)
Sleeve (x6)
STEP 16
Self-tapping Screw (x6)
16
Now insert one end of the rail (2) into a joint (5) on an enclosure tube. Secure
with a screw (16). Note: Do not attach the other side of the rail (2). You will
secure in a later step.
Repeat step 15 and 16 to attach the remaining five rails. Remember to attach
only one side.
