16

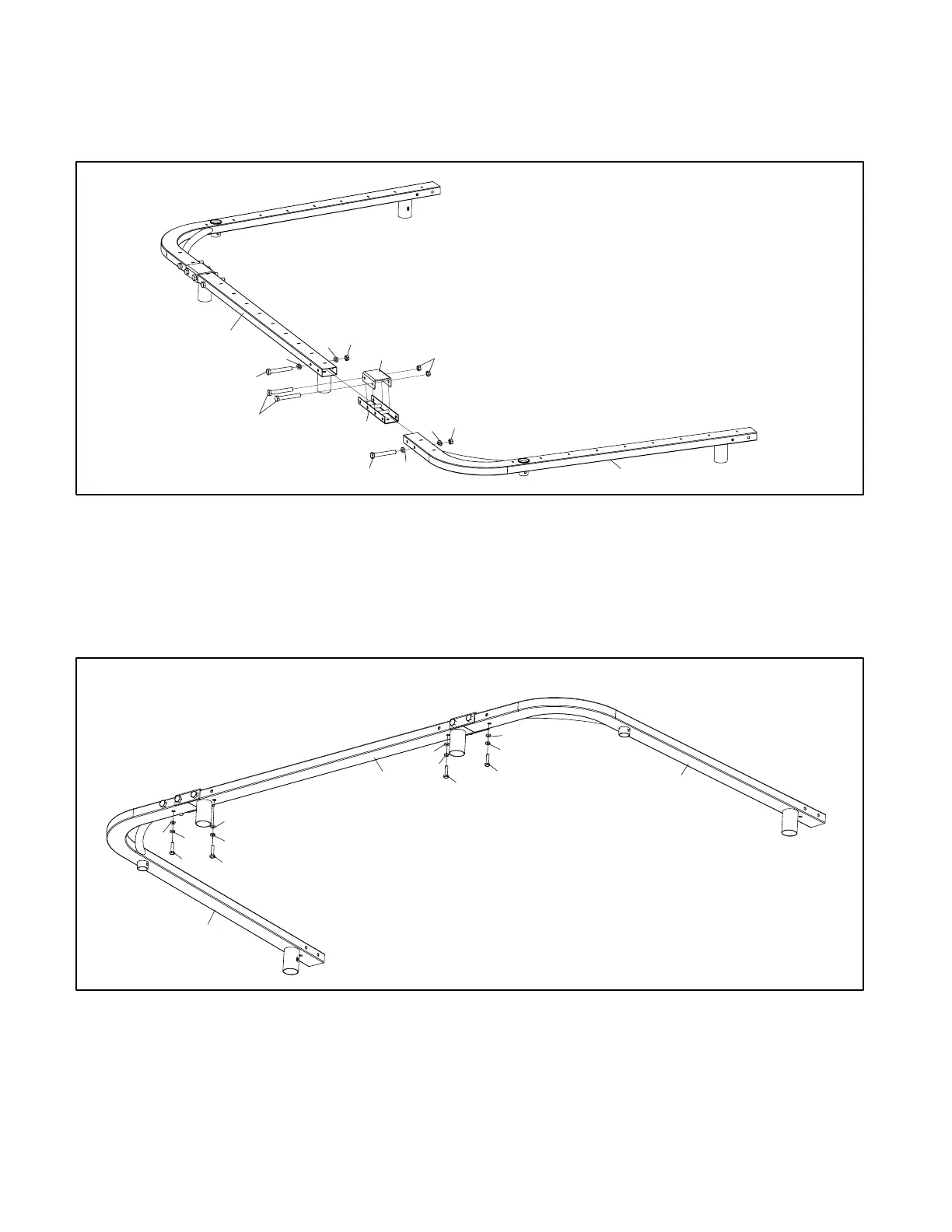

3. Identify one Right Frame Tube(3) which has a sticker “R”. Connect the Right Frame Tube(3) to the Straight
Frame Tube(11) in the same manner as step 1 and step 2 on page 15 shown.
Do not tighten the Locknuts yet.
4. Turn over the assembly you just finished on step 3.
Then secure the assembly with four M10x20mm Bolts(21) and four M10 Spring Washers(28) and four M10
Washers(16).
Do not tighten the Bolts yet.
11
3
12
16
16
16
14
12
16
14
13
14
24
25
11
3
3
Bottom Review
21
28
21
28
16
16
16
16
21
28
21
28
