Skywalker STRC149G09 - PARTS LIST

24

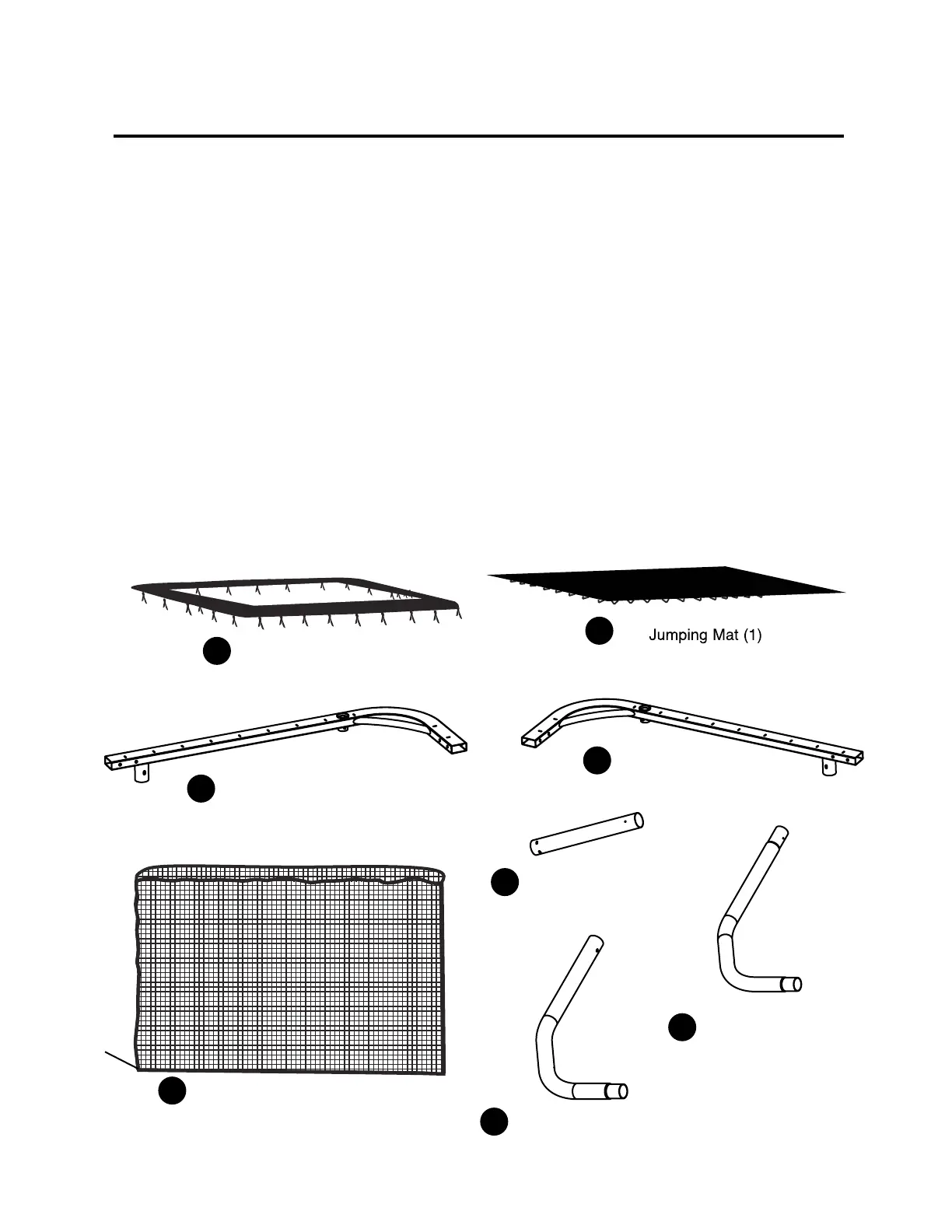

PARTS LIST
Spring Pad(1)
1
2
3
Key No. Descrption Qty.
1 Spring Pad 1
2 Jumping Mat 1
3 Right Frame Tube 2
4 Left Frame Tube 2
5 Enclosure Net 1
6 Spring 82
7 Leg Extension 8
8 Curved Leg with Male Ends 4
Key No. Descrption Qty.
11 Straight Frame Tube 2
12 M10x90mm Bolt 16
13 M10x98mm Bolt 16
14 M10 Locknut 32
15 M4.8x16 Screw 18
16 M10 Washer 48
22 Tools 1Set
23 Pole Cap 6
24 Outer U-Joint 8
25 Inner U-Joint 8
26 Inner Cap 6
27 M5x50mm Bolt 6
28 M10 Spring Washer 16
17 Lower Enclosure Tube 6
18 Upper Enclosure Tube 6
19 Foam Tube 12
20 Pole retaining pin 6
21 M10x20mm Bolt 16
Right Frame tube (2)
9 Curved Leg with Female&
Male End 4
10 Frame Tube with Slight Bend 2
Enclosure Net (1)
4
Left Frame tube (2)
5
Zipper
Leg Extension (8)
7
8
9
Curved Leg with Male Ends(4)
Curved Leg with Female&Male End(4)
# Placard Sewn 1
