Skywalker STRC149G09 - Page 18

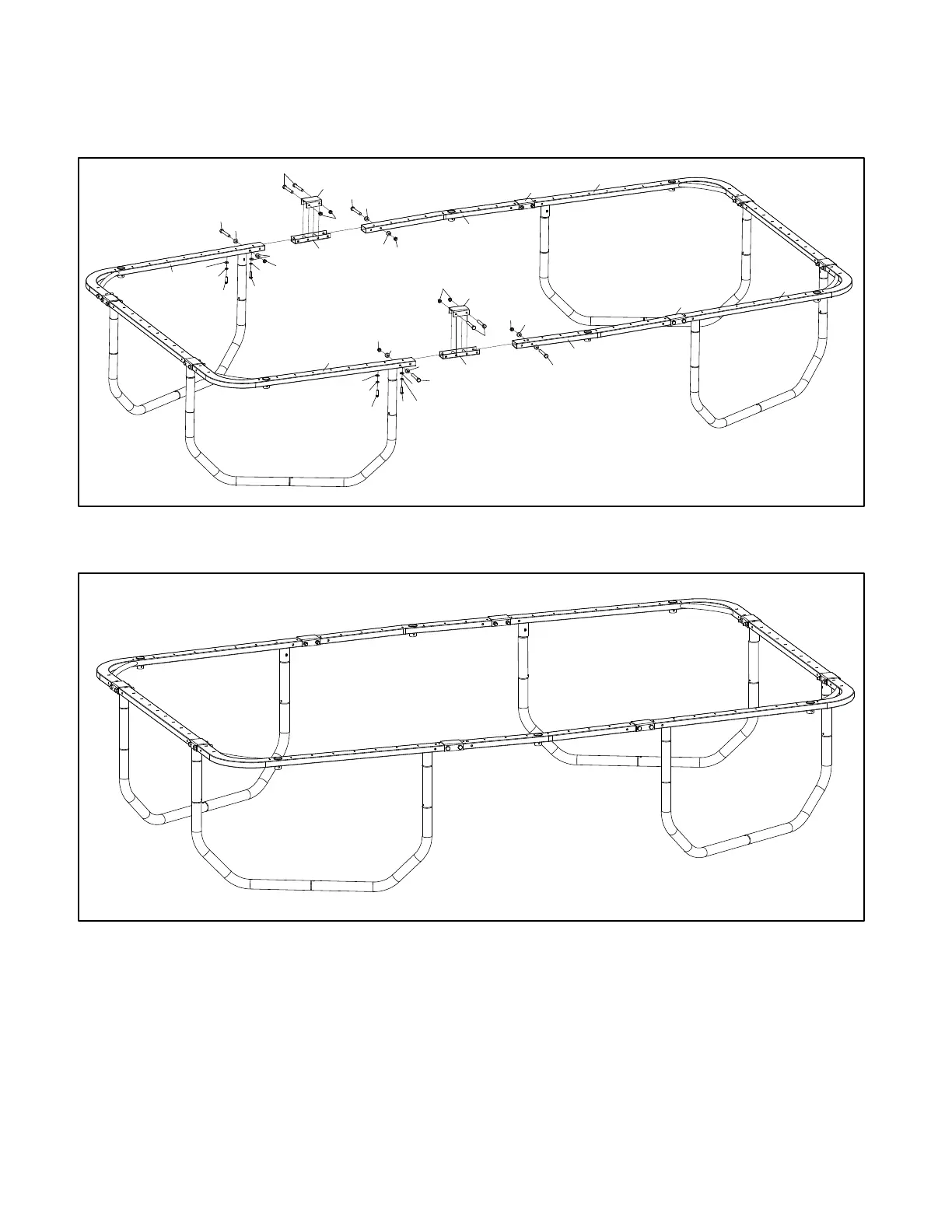

8. Connect the two assemblies you finished on step 7 on page 17 with two Frame Tube with slight Bend(10), four
Inner U-Joints(25), four Outer U-Joints(24). Secure with eight M10x98mm Bolts(13), eight M10x90mm Bolts(12),
twenty-four M10 Washers(16), sixteen M10 Locknuts(14), eight M10x20mm Bolts(21) and eight M10 Spring
Washers(28).
9. Tighten all the Bolts and Locknuts. Now you finish the frame assembly as shown below.
