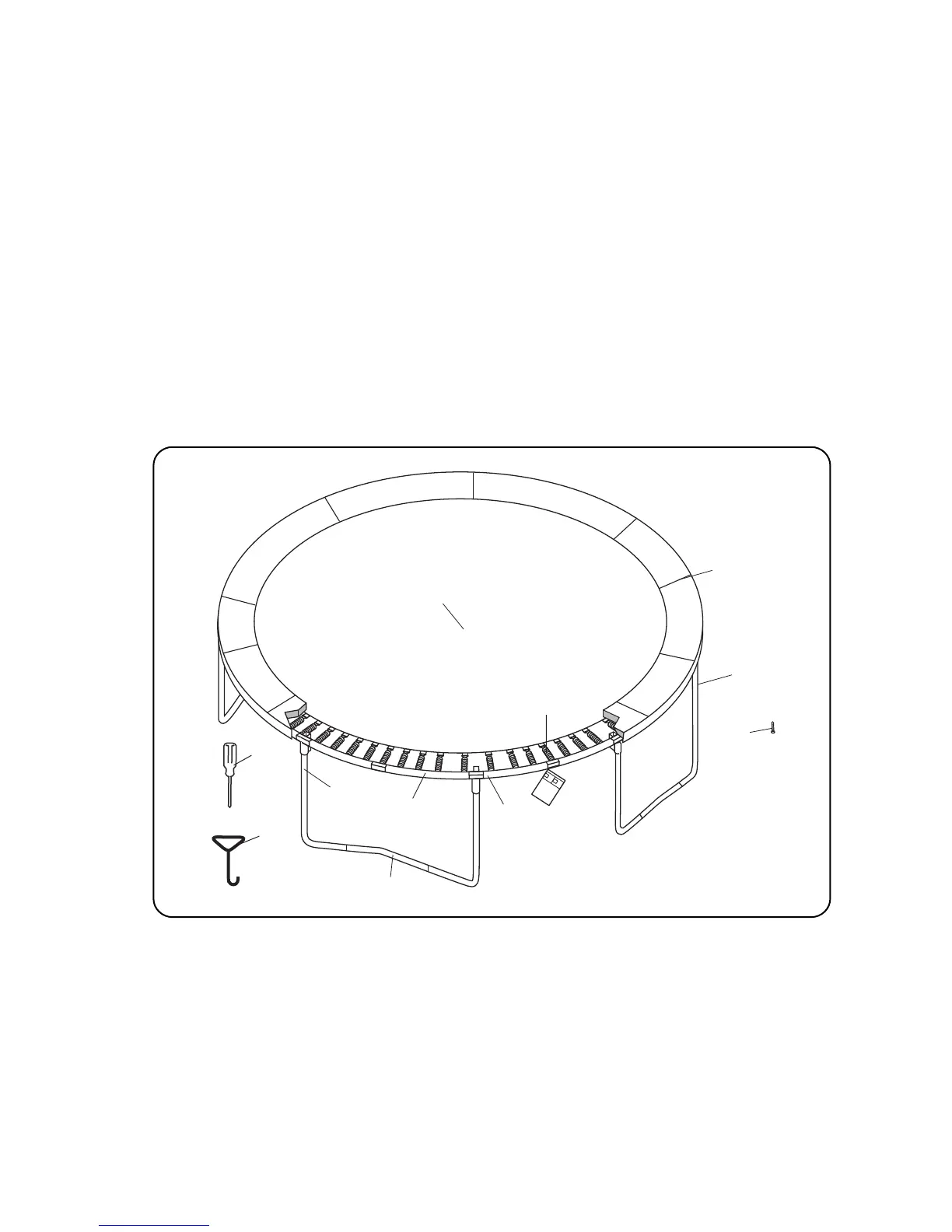

EXPLODED DRAWING AND PARTS LIST
# These parts are not illustrated.
Specifications are subject to change without notice.
ORDERING REPLACEMENT PARTS
To order replacement parts, visit our web site at www.skywalkertrampolines.com or call our toll-free Customer Care
Hot Line at 1-866-603-Jump (5867), Monday through Friday, 8 a.m. until 5 p.m. Mountain Time (excluding holi-
days). To help us assist you, please provide the following information when calling:
• the MODEL of the trampoline (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part (see the PART LIST above)
• the quantity needed
• the desired method of shipping
16
Key
No. Qty. Description
1 8 Top Tube
2 8 Top Tube with Socket
3 8 “J” Shaped Leg tube
4 4 Brace
6 1 Frame Pad
Key
No. Qty. Description
5 1 Jump Mat
8 96 Springs
9 1 Spring Tool
10 1 Screw Driver
11 8 Socket ( pre assembled to
Key # 2 top tube in the box. )
# 1 Set of ASTM Frame Labels
