Instaling the fuse and battery cables.
1. Remove the nuts and all the washers.
2. Install the fuse on top of the pre- tted conductors and washer.
3. Assemble the washers, battery cables and end washer and nuts.
4. Tighten the end nut to torque as shown above. (NB: Be cautious tightening the brass conductors as they are softer than steel bolts.)
Fitting the thruster cables.
5. Remove the nuts and washers.
6. Fit the cable/ cables as shown directly onto the pre- tted conductor.
7. Assemble the washers in the sequence shown.
8. Tighten the end nut.
Manual override button.
9. Pull OUT for ON.
10. Push IN for OFF.
11. Leave the switch in ON position when onboard.
12. Ensure the switch is in the OFF position when leaving the boat for long periods or when installing or servicing the thruster system.
MG_0323
1
2
3
4
5 - 8 9 - 12
Pull out
ON
Nut
Nut
Nut
Spring washer
Spring washer
Spring washer
Fasten
20 Nm
(14.5 lb/ft)
Washer
Washer
Washer
Washer
Washer
Washer
Washer
Fuse
Fuse
Cable
Cable
Push In
OFF
MC_0276
Electrical Installation
EN
WARNING
Check the following with the main switch is set to off :
After all electrical connections have been completed check with an ohm meter that there is no electrical connection between
1. electro-motor fl ange and the positive terminal on the motor
2. electro-motor fl ange and the battery negative terminal on the motor
If unsure contact skilled personnel.
ON/ OFF confi guration
Use a 4-lead control cable between the thruster and the automatic main switch. (NB: Only 3 leads are used, The red wire is not connected into the
automatic main switch.)
Proportional confi guration
Use 5-lead control cables between the automatic main switch and control panels. (NB: use 5-lead Y-connectors to branch off to all controls fi tted.)
Refer to the table in the thrusters manual for deciding the main cable sizes, the lengths are the total of positive and negative from the battery.
! Please refer to the graphic for special considerations relating to your model !

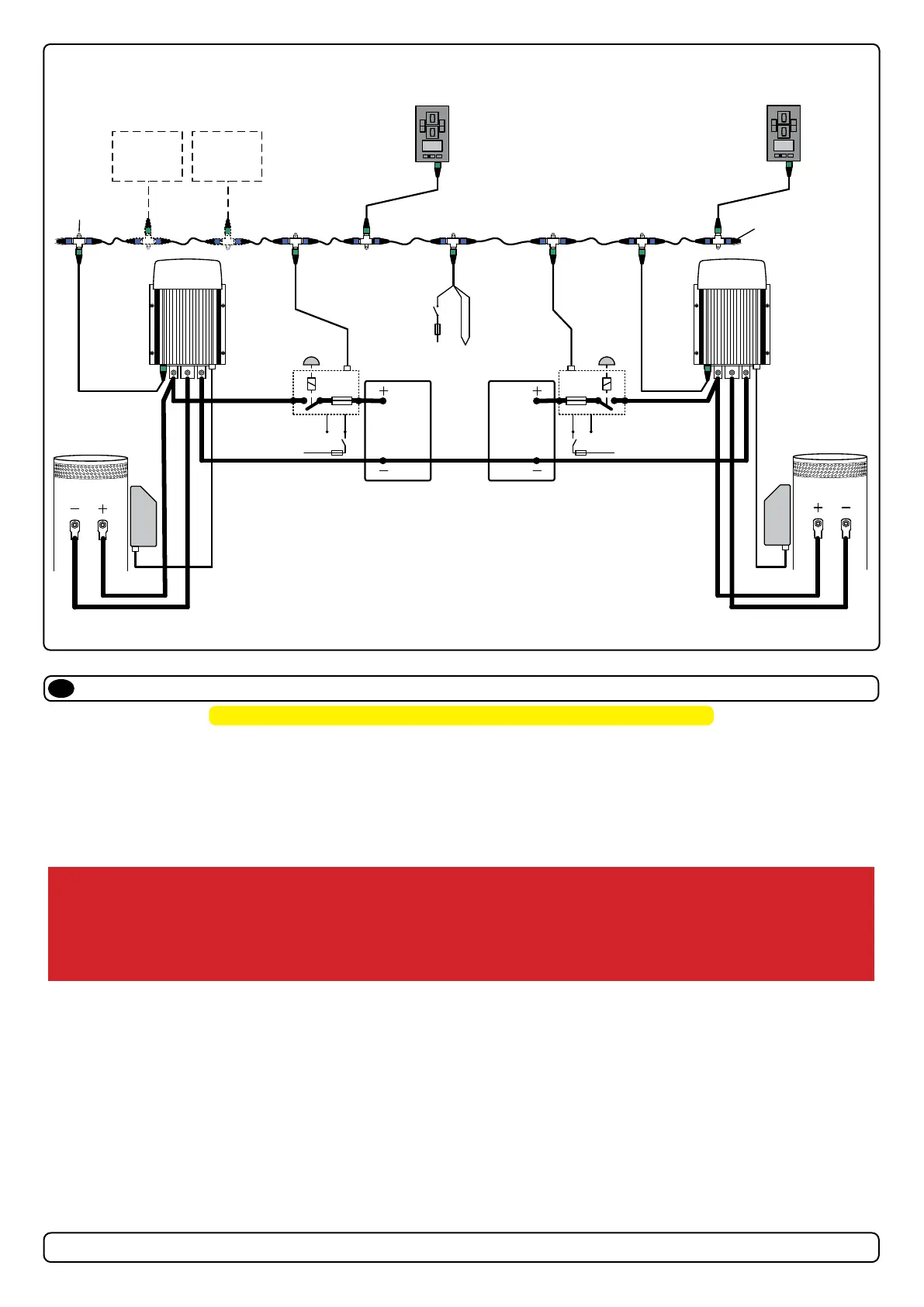

MG_0328
+12/24V
-
5A
S-link on/off
switch
red
yellow
black
12/24V12/24V
Stern thruster
battery
Bow thruster
battery
Bow thruster
(SEP model)
Stern thruster
(SEP model)
-
black
+
red
B+
-
black
+
red
B+
Fixed multicable 5m
Fixed multicable 5m
5A
+12/24
5A
+12/24
PPC
PPC
Proportional
Power Controller
Proportional
Power Controller
PJC 212
Proportional
joystick
control panel
Bow and stern
Station 1
Automatic Main Switch
8977 12 / 8977 24
or
Manual main switch
w/ANL fuse
Automatic Main Switch
8977 12 / 8977 24
or
Manual main switch
w/ANL fuse
S-link control system
End terminator
End terminator
PJC 212
Observe PPC battery
terminal polarity !
S-link supply
S-link external
switch interface
and remote
(optional)
S-link external
switch interface
and remote
(optional)
Proportional
joystick
control panel
Bow and stern
Station 2
