SLEIPNER MOTOR AS Side-Power Automatic Main Switch - Wiring Diagram

8
516 9
2 2020
-
MG_0329
DESCRIPTION OF WIRING DIAGRAMS:
- Install the correct main fuse depending on thruster model fitted.
- Coil feed can be taken from any 12V or 24V battery source. If the coil is fed from a source that already has a main switch, an
on/off switch is not required.
- The S-Link cable must be connected to the S-Link network on the Automatic Main Switch assigned to be bow or stern
IMPORTANT
Fit only one thruster to each
automatic main switch.

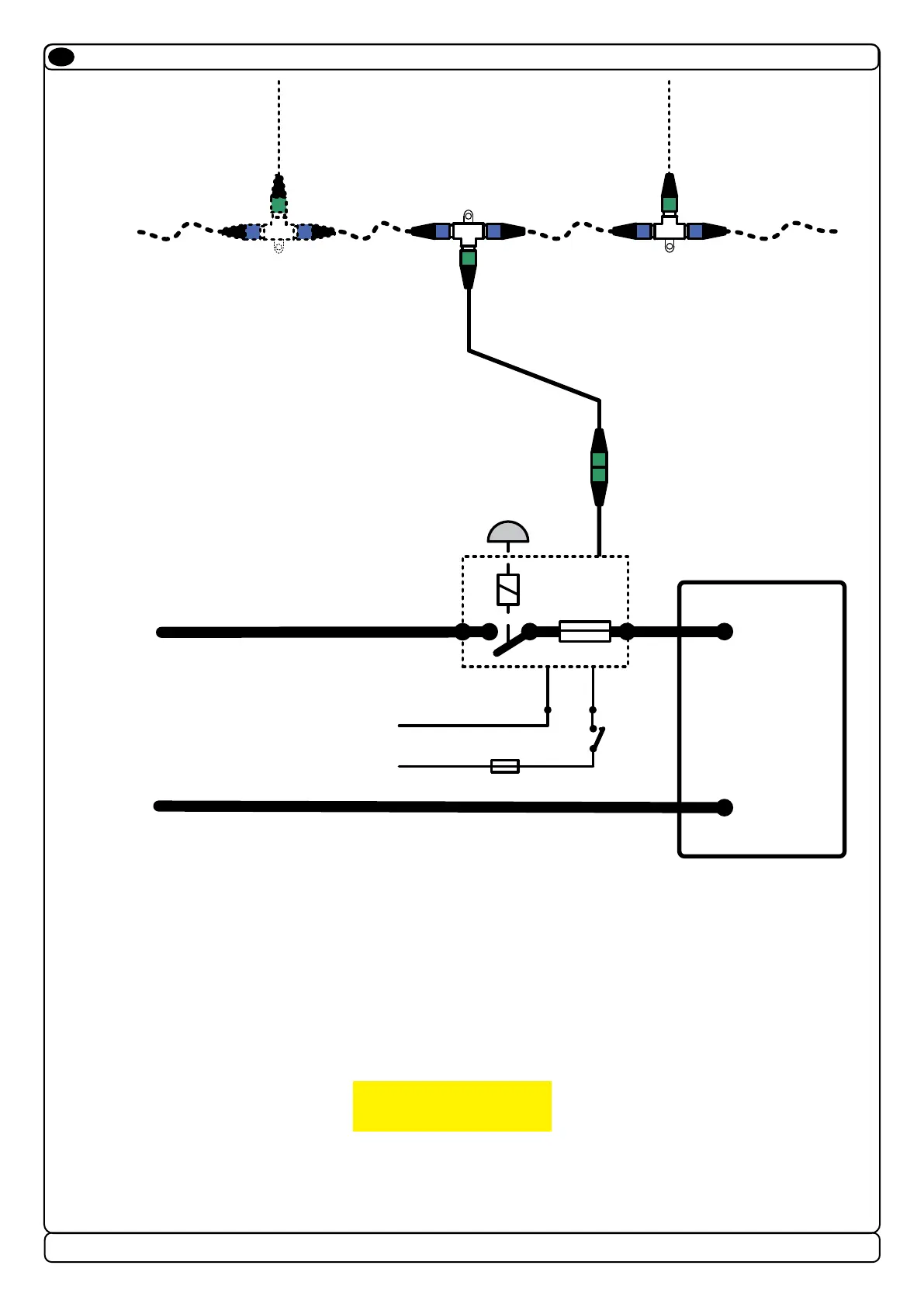

Technical Wiring Diagram
EN
Thruster
Battery
12/24V
-
black red
«B+»
5A
+12/24V
Automatic Main Switch
8977 12 (12V)
8977 24 (24V)
Side-power S-link
network cables
«Thruster+»
To
SEP thruster
or
RETRACT thruster
+
-
+
-
on/off
Switch
(optional)
Main
fuse
Coil feed
