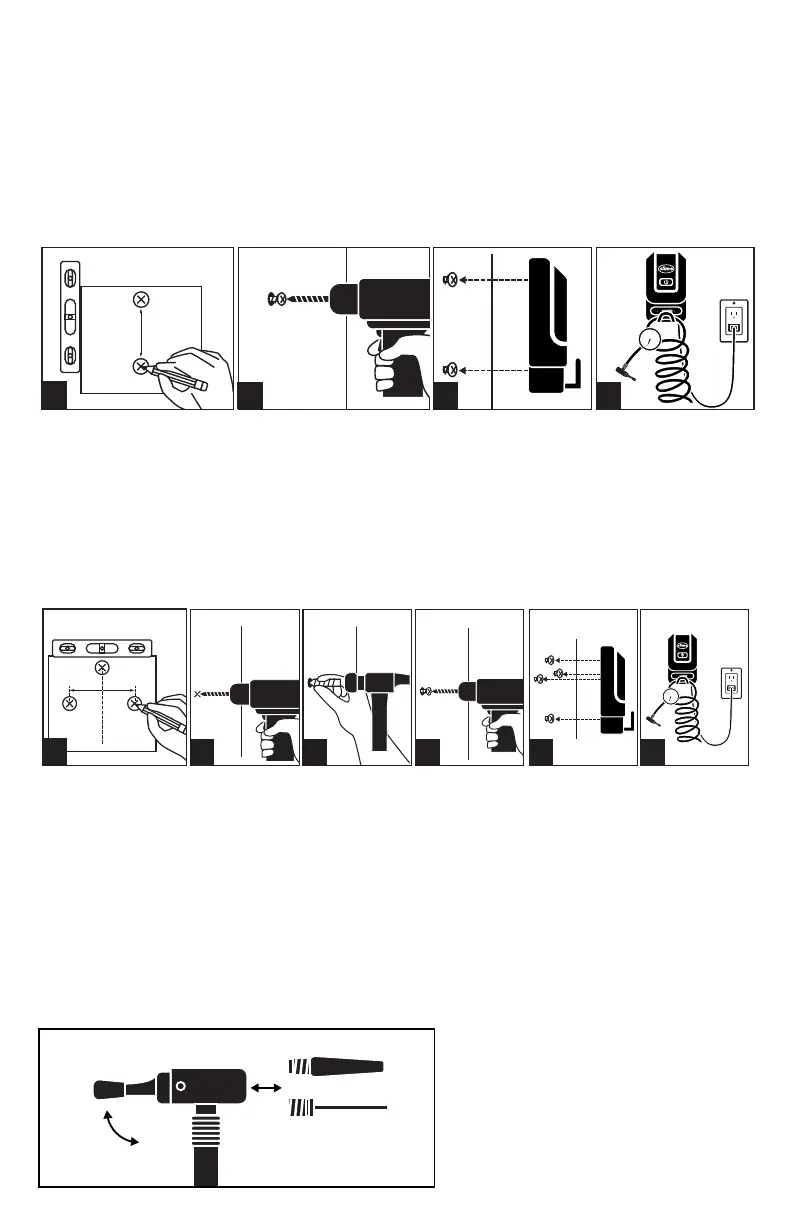

WALL MOUNTING INSTRUCTIONS
Your inflator has built-in features for conveniently wall-mounting the unit. Use the
template located on the last page of this booklet and the included hardware to wall-
mount the unit. Take extra care to ensure there is no wiring, plumbing, or other objects
located within the wall behind your chosen mounting location. Manufacturer is not
responsible for any damage or loss incurred from complications in wall-mounting.
For Stud Mounting: Inflator should be securely mounted to stud if possible. For
stud mounting, the vertical mounting option (133mm) on the template will be used.
1. Using the template on the last page of this booklet, mark your vertical mounting locations.
Use a bubble level to aid in ensuring holes are vertical.
2. Using a screw gun, install supplied screws at the marked locations, leaving approximately
3/8" protruding from the wall.
3. Hang the inflator on the screws using the recesses located on the back of the inflator body.
4. Plug in the inflator. It is ready for use.
For Drywall Mounting:
1. Use the template on the last page of this booklet to mark mounting locations on wall.
If using the horizontal mounting option, use the 56mm locations, if using the vertical
mounting option, use the 133mm locations. Use of a bubble level to aid in mounting level.
2. Using 1/4" drill bit, drill holes at the chosen marked locations.
3. Using a hammer, tap in the supplied wall anchors until flush with wall.
4. Using a screwdriver or screw gun, install the supplied screws into the wall anchors,
5. Hang the inflator on the screws using the recesses located on the back of the inflator body.
6. Plug in the inflator. It is ready for use.
1
2 3
4
2 3 4
6
1
5
USING THE ADAPTERS
PULL
UP TO
UN LOCK
PULL
DOWN
TO LOCK
1. To unlock the hammerhead
valve, pull handle upward.
2. Place in adapter and push
down on handle to lock in
adapter.
