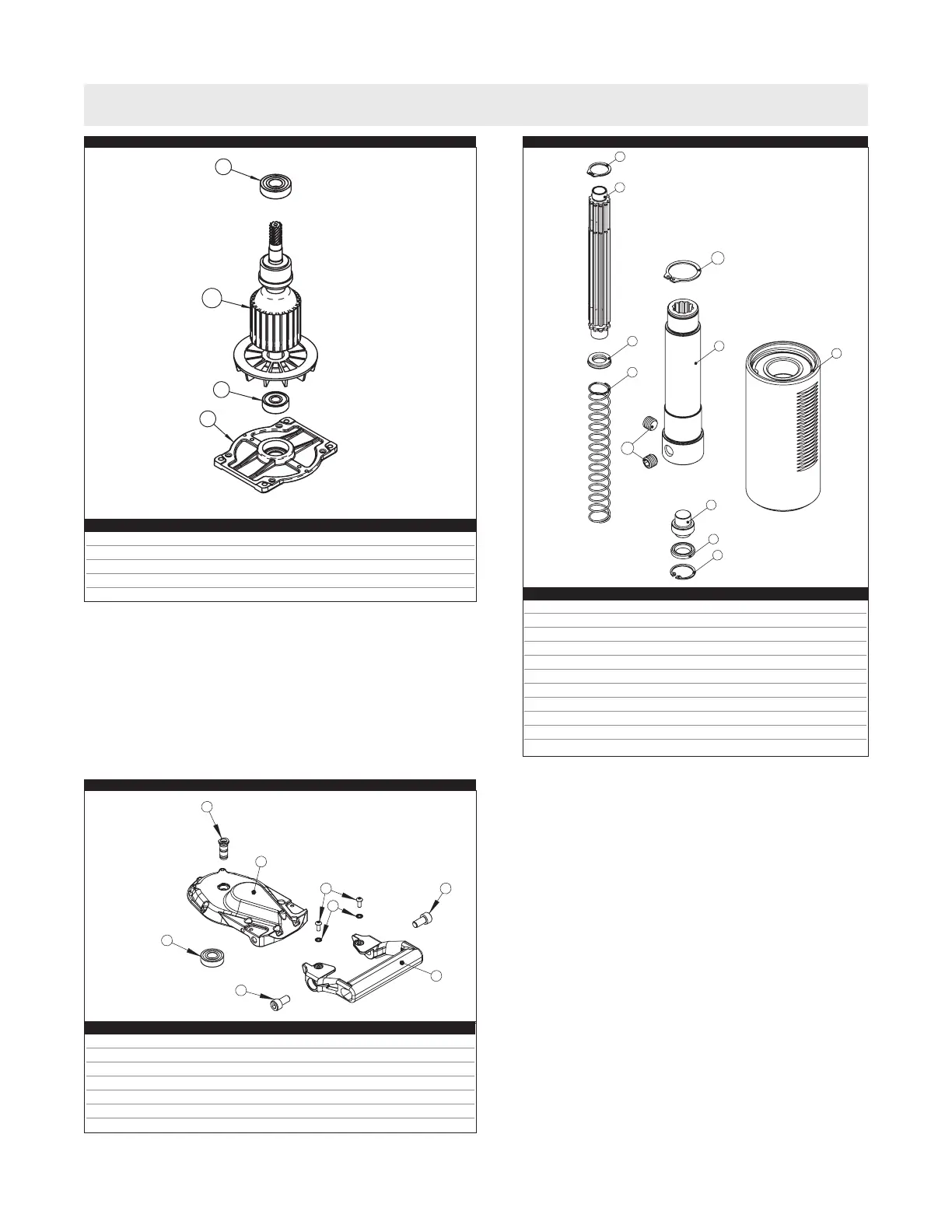

Slugger Magforce 06920 - Armature, Quill, Gearcase Cover Parts List

14
armature, quill and gearbox cover brakedown and parts list
item description part # qty
1 ARMATURE SUPPORT BRACKET 06324 1
2 BALL BEARING UH3024 1
3 ARMATURE, 120V 06582 1
ARMATURE, 220V 06586
4 BALL BEARING UH3039 1
item description part # qty
1 COVER 06304J 1
2 HANDLE 06305 1
3 COOLANT FITTING ASSEMBLY 06916 1
4 BALL BEARING UH3039 1
5 M4 LOCK WASHER UH2044 2
6 M4 X 10 BHSCS UH0406 2
7 M8 X 10 SHCS UH0810 2
3
4
1
2
10
4
1
2
5
6
7
8
9
11
3
7
2
3
4
6
1
5
7
ARMATURE ASSEMBLY - 120V (06914) - 220V (06915) QUILL ASSEMBLY (06908)
item description part # qty
1 SPLINE DRIVE SHAFT 06210 1
2 HYDRAULIC SEAL 06706 1
3 QUILL SHAFT 06208 1
4 EXTERNAL RETAINING RING UH4016 1
5 SPRING 0151431 1
6 QUILL PISTON 06212 1
7 LIP SEAL 06704 1
8 INTERNAL RETAINING RING UH4119 1
9 QUILL CARRIER ASSEMBLY 06906 1
10 EXTERNAL RETAINING RING UH4025 1
11 M10 X 8 FPSSS UH0900 2
GEARBOX COVER ASSEMBLY (06944)
