5.2.5 Setting Limited Export

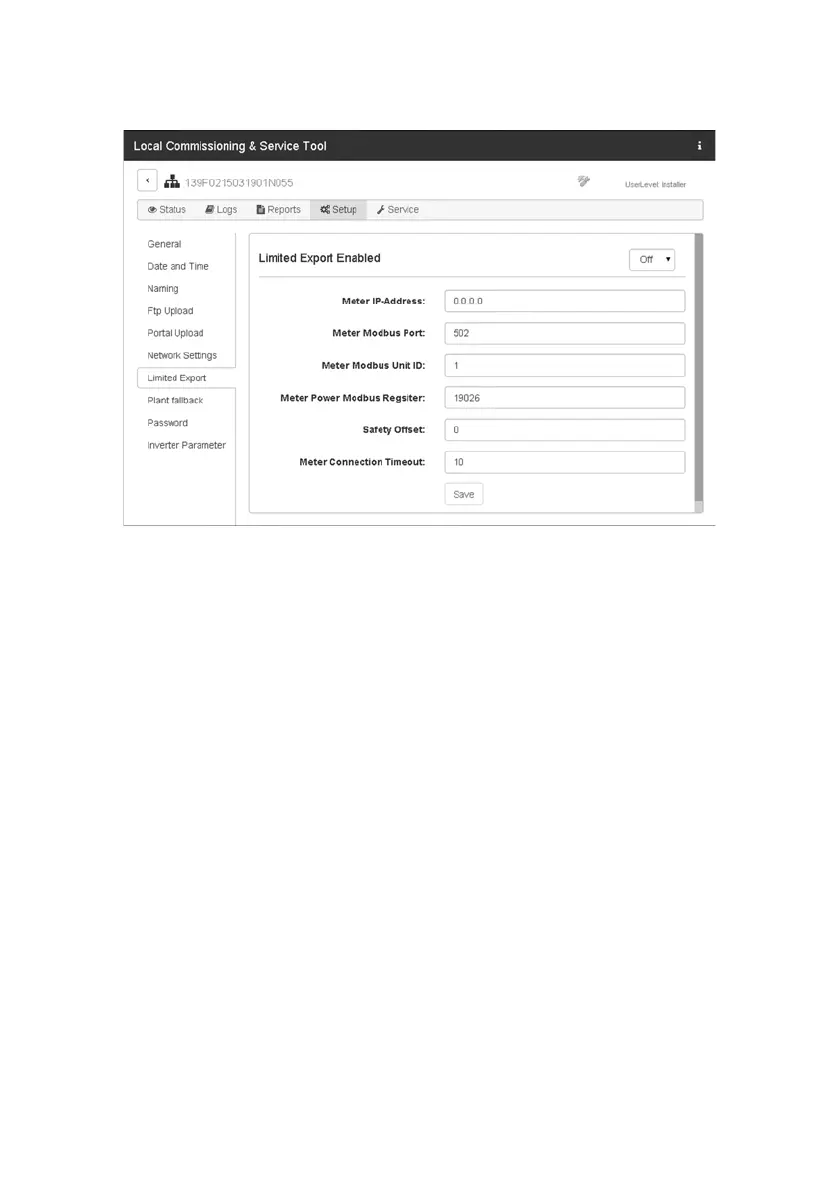

Figure 5.14 LCS tool - setting Limited Export
With the Limited Export feature in connection with an energy
meter, a maximum AC output power can be made available
at the grid-connection point. To setup the Limited Export
feature, use your SMA Grid Guard code under the user
group Installer (see section 5.2.2, page 20).
Procedure:
1. Open the LCS tool.
2. Log in as an Installer.
3. Call up the menu Setup.
4. Enter the respective values under Limited Export.
5. Select [Save] to save the changes.
