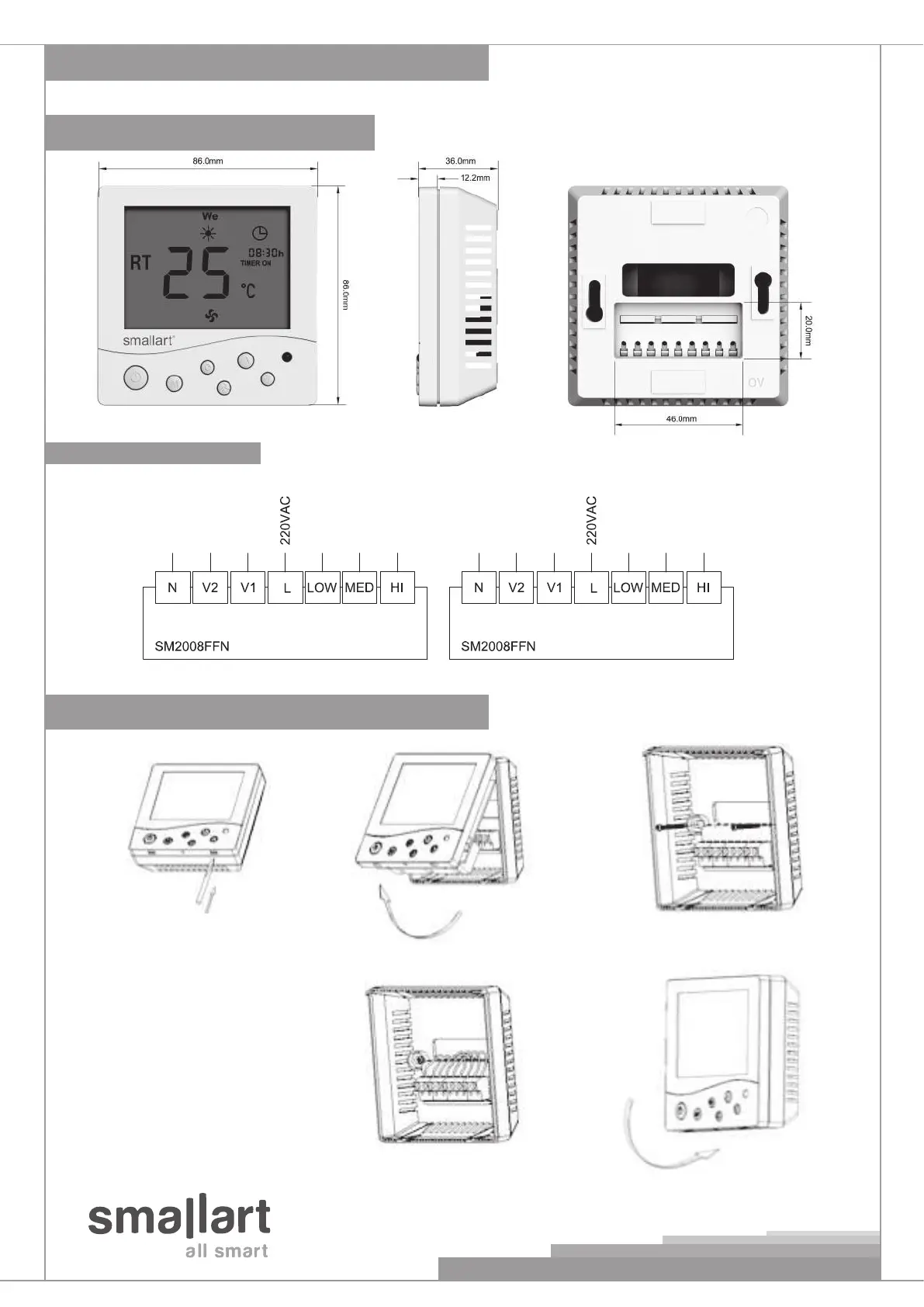

Mounting Instruction
Neutrel
4 pipe system
2 pipe system
Heat Valve
Cool Valve
Low
Medium
High
Low
Medium
High
Neutrel
Heat/ Cool Valve
Dimensions (mm)
Wire diagram
Climate Control and Building Automation Systems
www.smallart-controls.com
Points to take care during the installation
1.
Taking the upper part apart:
put the screwdriver (3.5mm
wide) into slot
2.
Push up by force, open the clip
3.
Fix by the two screws in the packing box.
4.
As per wiring drawing, connect with
terminals, fix it by screwdriver.
5.
Push the downside by force, lock the up
panel, and finish the installation.
