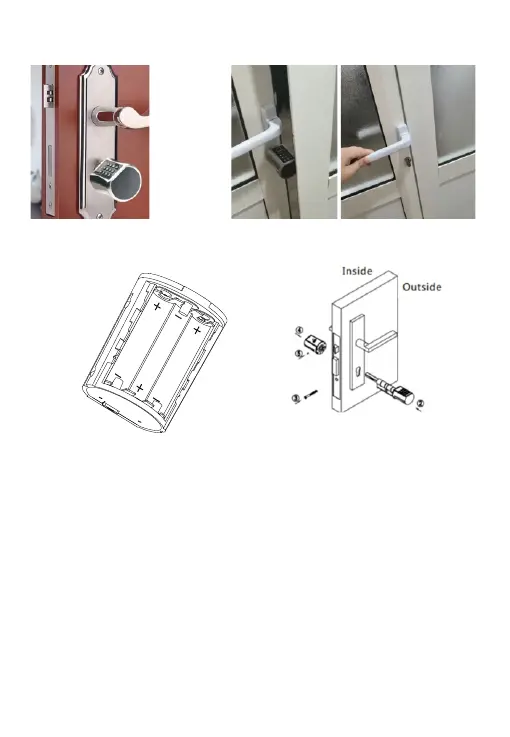

4.2 Product installation drawing
1. Install 3 pcs AAA alkaline batteries with the correct positive and negative electrodes
(Figure①).
2. Insert the smart cylinder from outside and adjust the position properly (Figure②).
3. Install the screw through the fixed core screw hole on the side of the cylinder
(Figure ③).
4. Install the rear handle from inside, adjusting the position and tighten the screw
(Figure④,⑤).
4.3 Check after the installation
1.Check whether the rear and front handle is smooth, and whether the key can open
the lock latch, otherwise loosen the screws, fine-tune the handle, and tighten the
screws until the latch move freely.
2.Power on check if the lock cylinder work normal.
3. Please follow the voice prompts to register your administrator account.
①
