Overview
10
Overall vehicle
Introduction of smart fortwo electric drive (3rd Generation) • Model Series 451
Model 451 Model Motor
smart fortwo electric drive coupé 451.390 780.993
smart fortwo electric drive cabrio 451.490 780.993

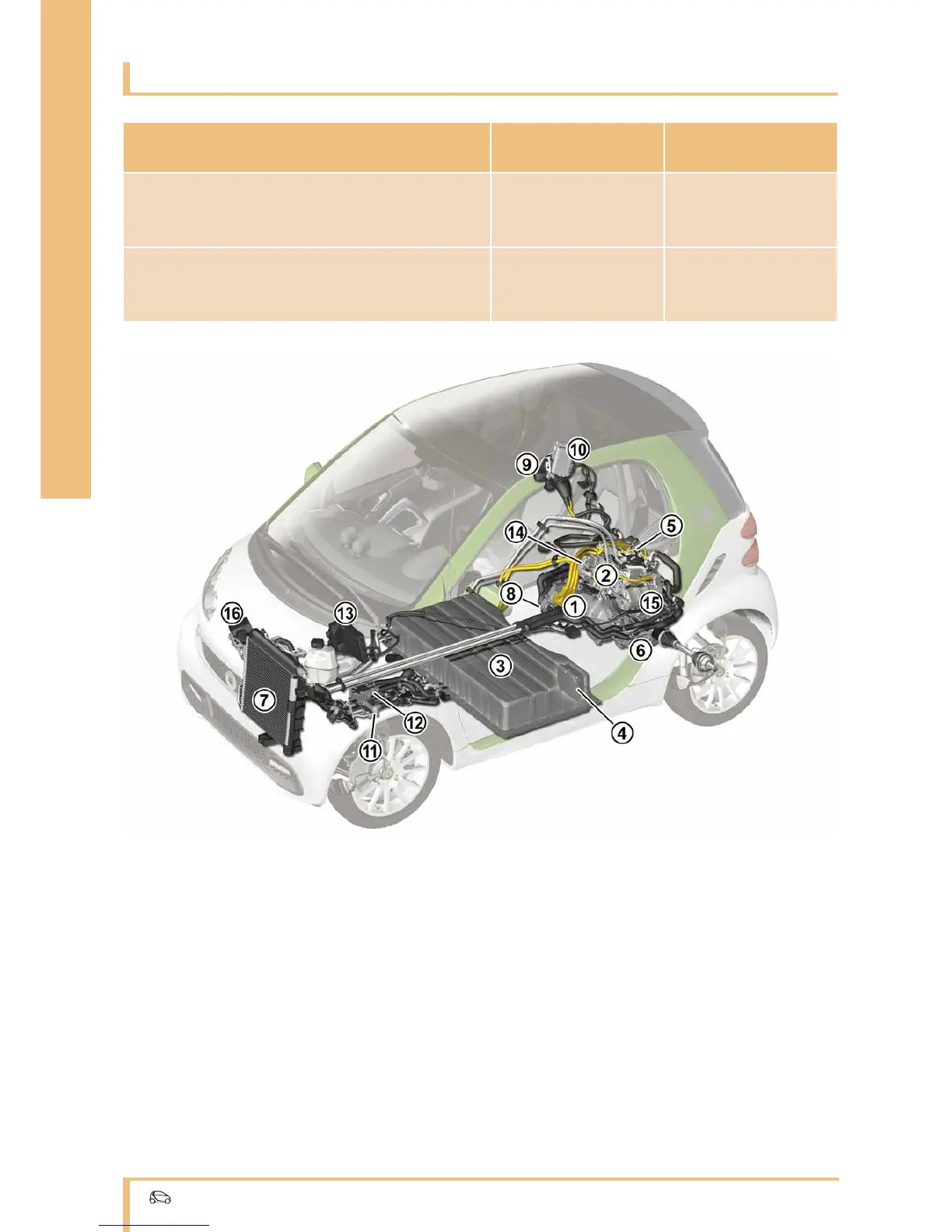

P00.00-4813-00
smart fortwo electric drive coupé
1 Electric motor
2 Power electronics control unit
3 High-voltage battery
4 Battery management system control unit
5 On-board charger
6 Transmission
7 Cooling module
8 Brake booster vacuum pump
9 Charger feed-in socket
10 Drivetrain control unit
11 High-voltage battery heat exchanger (chiller)
12 High-voltage battery heater
13 Interior high-voltage PTC heater
14 High-voltage adapter plate fuse box
15 Electric refrigerant compressor
16 Electric vehicle sound generator
