Overall network
Electrical system
55
Introduction of smart fortwo electric drive (3rd Generation) • Model Series 451
P00.19-5201-00

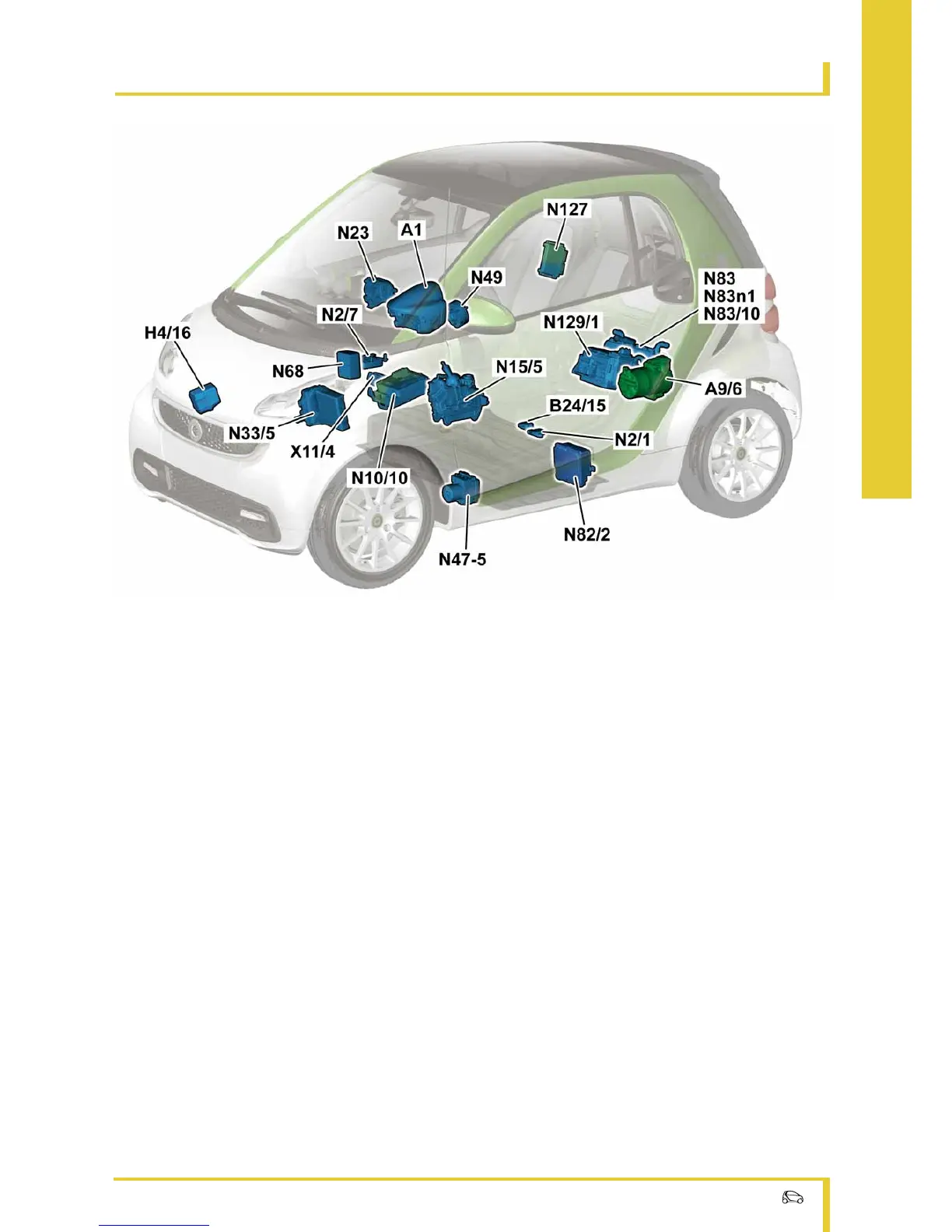

Overall network (ECE version)
A1 Instrument cluster
A9/6 Electric refrigerant compressor
B24/15 Yaw rate and lateral acceleration sensor
H4/16 Electric vehicle sound generator
N2/1 High-voltage crash sensor control unit
N2/7 Restraint systems control unit
N10/10 SAM control unit
N15/5 Electronic selector lever module
N23 Heater/AC operating unit
N33/5 High-voltage PTC heater
N47-5 ESP control unit
N49 Steering angle sensor
N68 Power steering control unit
N82/2 Battery management system control unit
N83 On-board charger 3kW
N83n1 Powerline Gateway control unit
N83/10 On-board charger 22 kW
(with code (908) 22 kW on-board charger)
N127 Drivetrain control unit
N129/1 Power electronics control unit
X11/4 Data link connector
