Design
Introduction of smart fortwo electric drive (3rd Generation) • Model Series 451
Additional instruments
The function of the two additional instruments on
the center of the instrument panel has been modi-
fied: The additional instruments are actuated by
the drivetrain control unit via LIN EV.

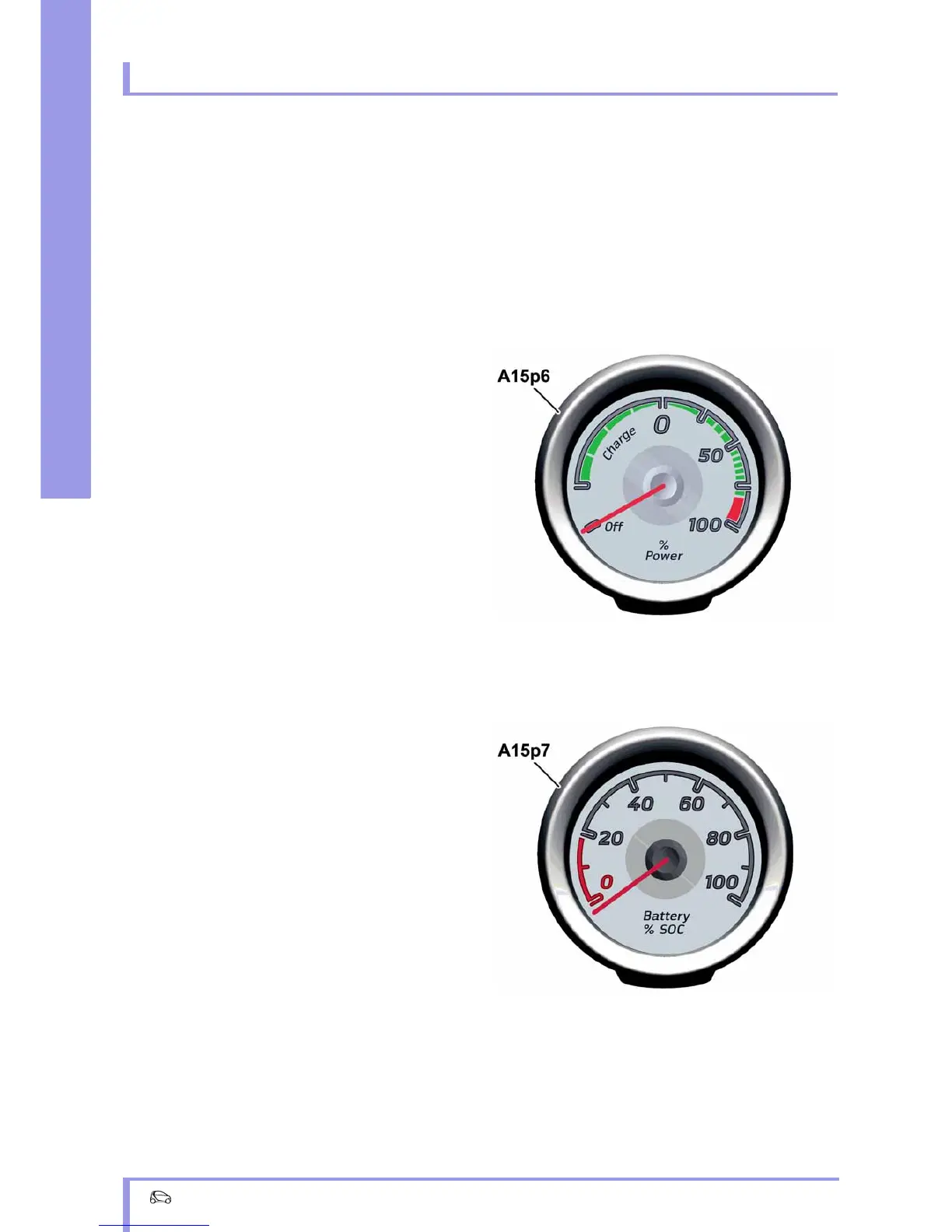

The right additional instrument (Powermeter)
shows the power flow of the high-voltage battery
and has the following functions:
• Rest condition = OFF
• Level of regenerative braking (Charge)
• Power use (0 - 100%)
P54.33-2051-00
Right additional instrument
A15p6 High-voltage battery energy flow
The left additional instrument shows the high-
voltage battery state of charge (SOC)
P54.33-2052-00
Left additional instrument
A15p7 High-voltage battery state of charge (SOC)
indicator
