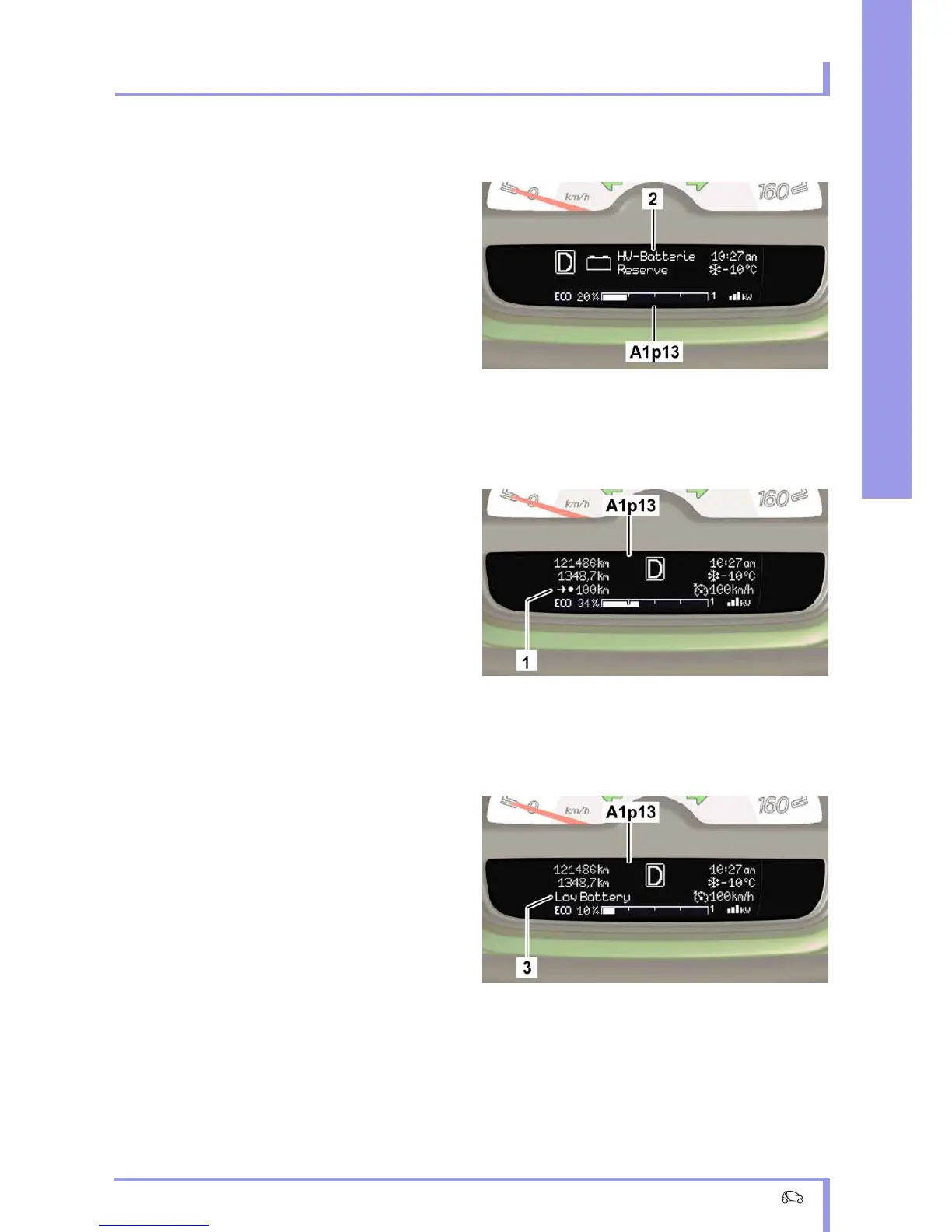

Display of state of charge of high-voltage battery on multifunction display
When the remaining charge level of the battery is
20%, the text message "HV battery reserve"
appears.
When this is acknowledged by pressing the "OK"
button on the right multifunction control lever,
the remaining range is displayed again.
P54.33-2158-00
2 "HV battery reserve" indicator
A1p13 Multifunction display
The remaining range is displayed on the multi-
function display down to a battery charge level of
10%.
P54.33-2157-00
1 Remaining range indicator
A1p13 Multifunction display
When the remaining charge level of the battery is
10%, the text message "HV battery reserve"
appears again. After this, "Low Battery" is
displayed permanently on the multifunction
display instead of the remaining range indicator.
As of 5% SOC, an warning tone sounds and the
power display on the multifunction display starts
to flash.
P54.33-2159-00
3 "Low Battery" indicator
A1p13 Multifunction display
