On-board electrical system/power supply
20
Electrical system
Introduction of smart fortwo electric drive (3rd Generation) • Model Series 451
Overview of high-voltage components
The high-voltage on-board electrical system on
the smart fortwo electric drive consists of the
following high-voltage components:
•Electric drive motor
• Power electronics control unit
• High-voltage battery
• Electric refrigerant compressor
• High-voltage PTC heater
• High-voltage adapter plate fuse box
• On-board charger

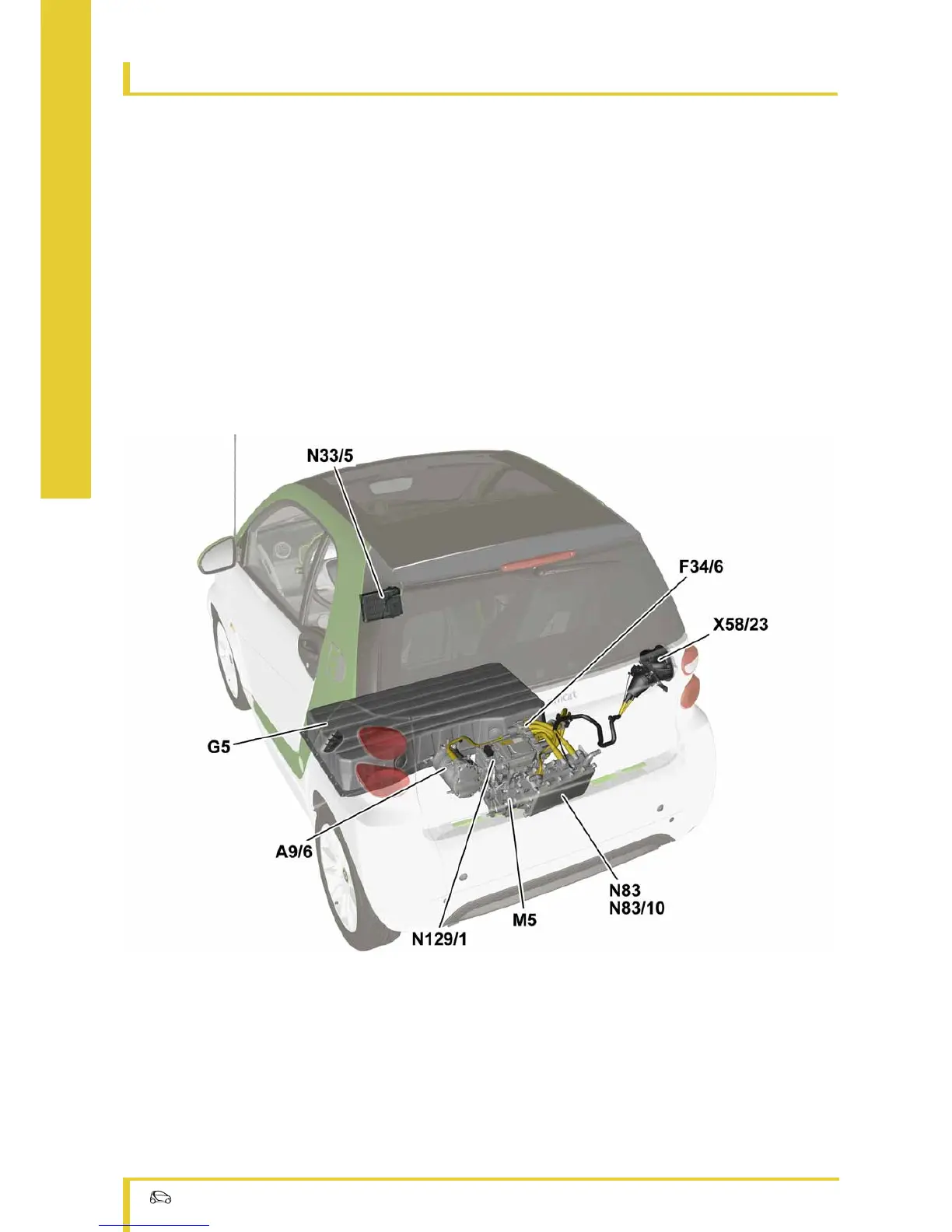

P54.00-2890-00
A9/6 Electric refrigerant compressor
F34/6 High-voltage adapter plate fuse box
G5 High-voltage battery
M5 Electric drive motor
N33/5 High-voltage PTC heater
N83 On-board charger 3kW
N83/10 On-board charger 22 kW
(with code (908) 22 kW on-board charger)
N129/1 Power electronics control unit
X58/23 Charger feed-in socket
