Charger feed-in socket
Electrical system
39
Introduction of smart fortwo electric drive (3rd Generation) • Model Series 451
USA/Canada

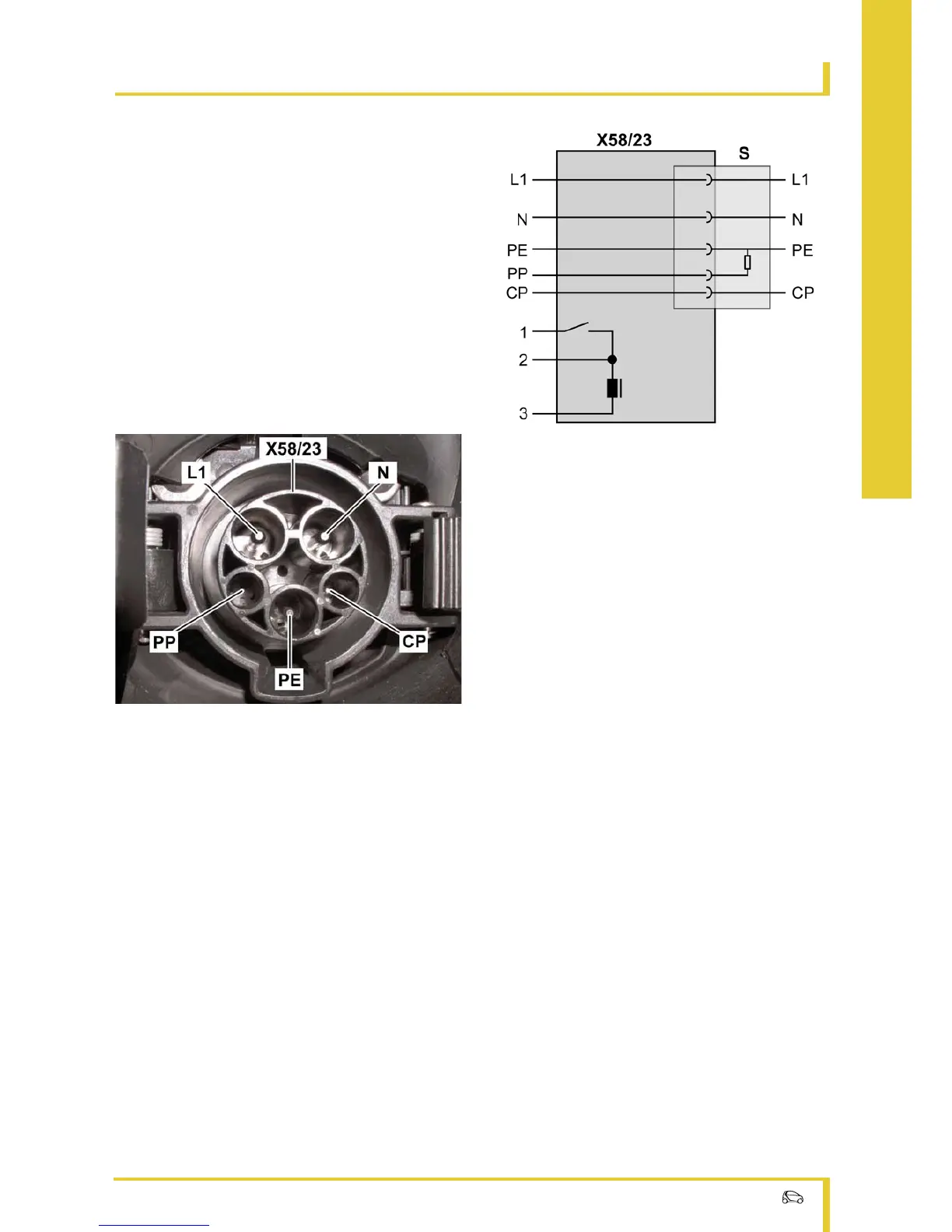

The 5-pin socket has 3 high-voltage contacts for
the alternating voltage feed and 2 signal contacts
for CP and Proximity.
The CP contact is used for data exchange with the
charging station and the PP contact allows the
vehicle to detect when the charging cable is
plugged in.
P54.10-3722-00
Block diagram
1 Locking status
2Lock
3 Release
CP Control Pilot
L1 Phase L1
NNeutral wire
PE Protective Earth
PP Proximity
S Charging cable connector
X58/23 Charger feed-in socket
P54.10-3720-00
CP Control Pilot
L1 Phase L1
NNeutral wire
PE Protective Earth
PP Proximity
X58/23 Charger feed-in socket
