High-voltage adapter plate fuse box
Electrical system
45
Introduction of smart fortwo electric drive (3rd Generation) • Model Series 451
P54.15-3497-00

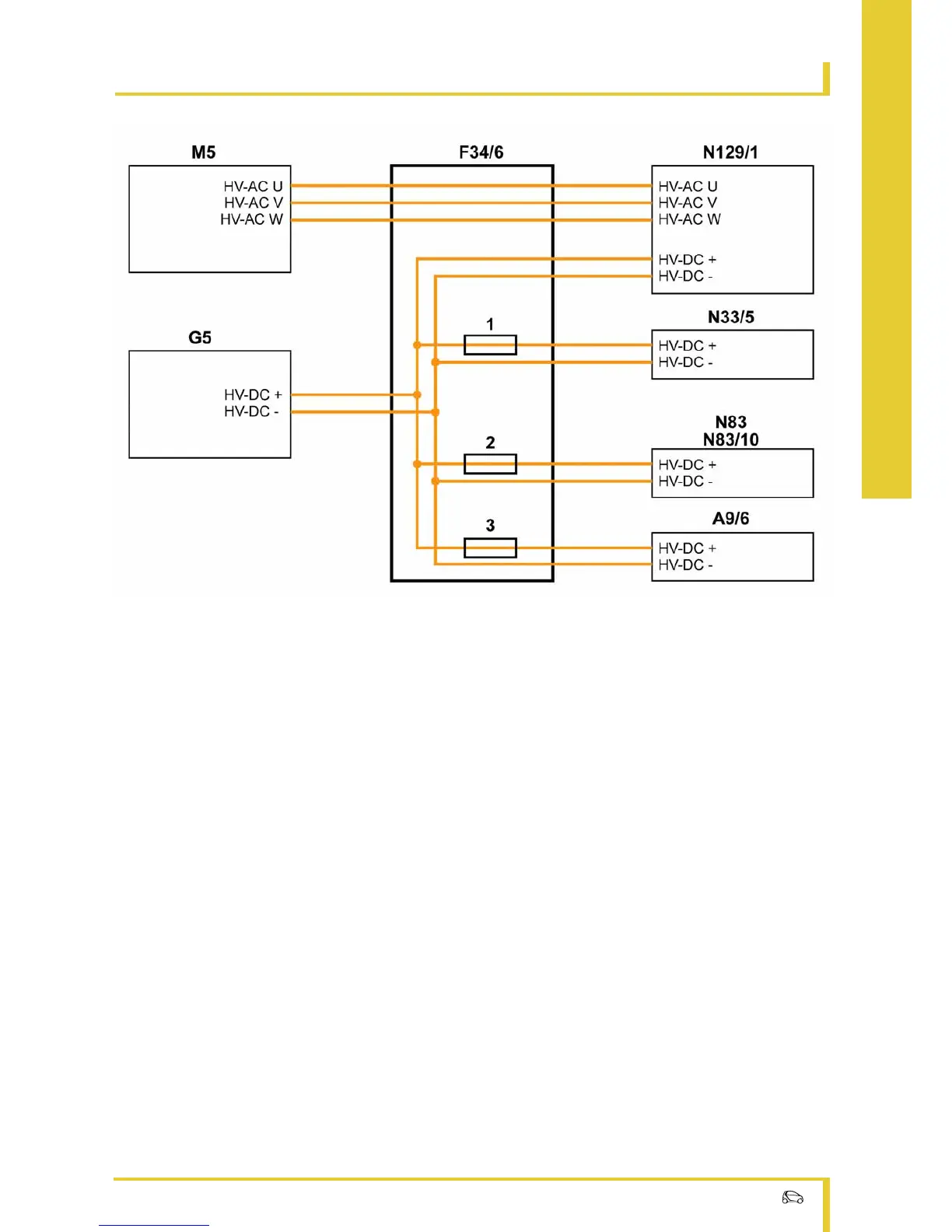

Block diagram of high-voltage fuses
1 High-voltage PTC heater fuse (40 A)
2 3 kW on-board charger fuse (40 A) or
22 kW on-board charger fuse (100 A)
3 Electric refrigerant compressor fuse (40 A)
A9/6 Electric refrigerant compressor
F34/6 High-voltage adapter plate fuse box
G5 High-voltage battery
M5 Electric drive motor
N33/5 High-voltage PTC heater
N83 On-board charger 3kW
N83/10 On-board charger 22 kW
(with code (908) 22 kW on-board charger)
N129/1 Power electronics control unit
