Routines 9!9
Checking fluids
Determining the coolant level

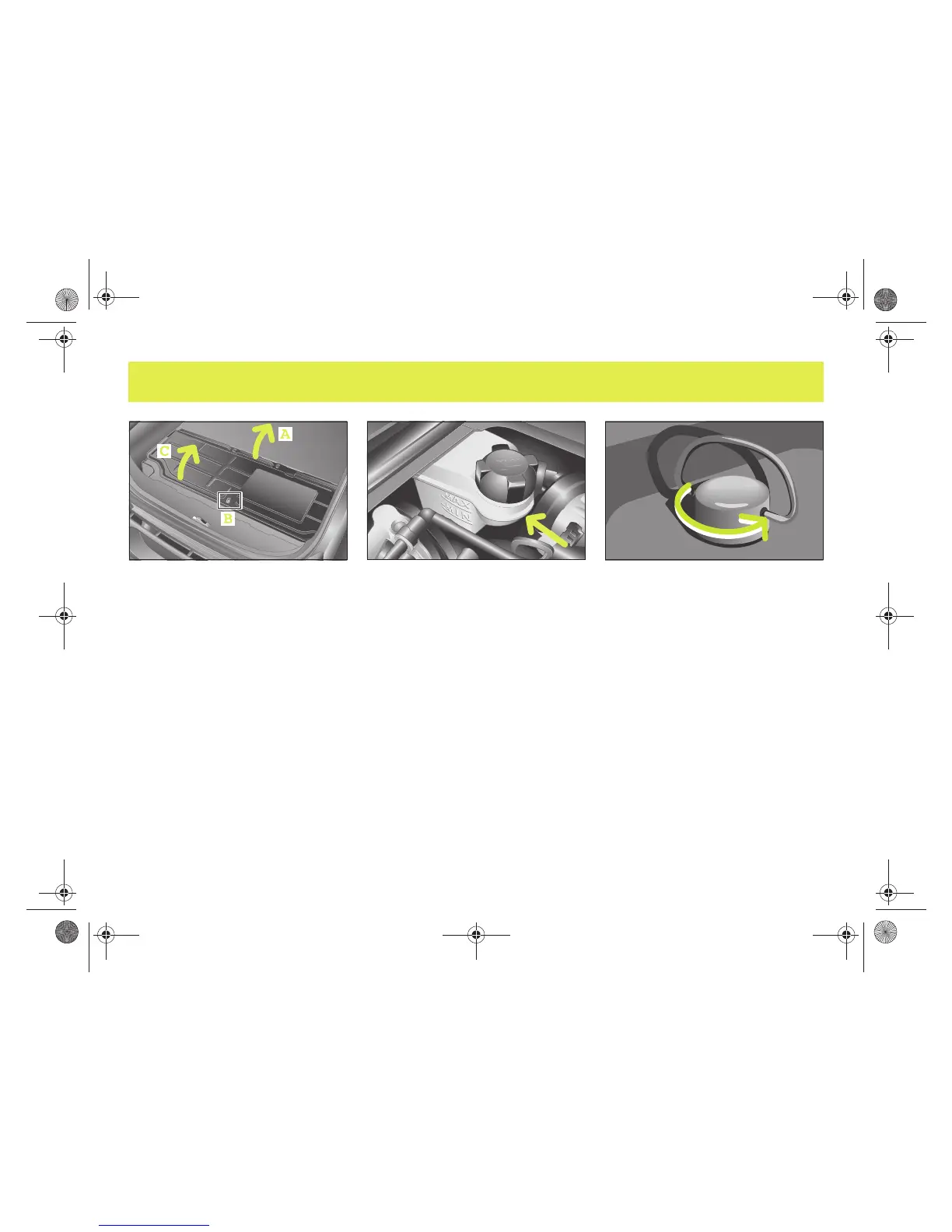

! Open the rear luggage compartment.
! Fold the carpet back (A).
! Remove the fastening screw (B) for the
engine compartment cover.
! Remove the engine compartment cover
(C).
! Check the level in the reservoir by
looking at it side!on.
>The fluid level must lie between the
MIN and MAX marks.
>Note!
Warm coolant expands, which is why it
may extend beyond the maximum filling
level.
Topping up coolant
! Let the radiator cool down for at least
30 minutes.
! Cover the cap for the coolant expansion
reservoir with a cloth before touching
it.
! Turn the cap one complete revolution
in order to allow the excess pressure to
escape.
! Unscrew the cap and remove it.
! You should only top up the coolant as
far as the maximum filling level.
! Replace the cap and tighten when
finished.
