Anti-theft alarm system (ATA [EDW])
100
Body
Introduction of the smart fortwo, Model Series 451
P80.50-2648-00

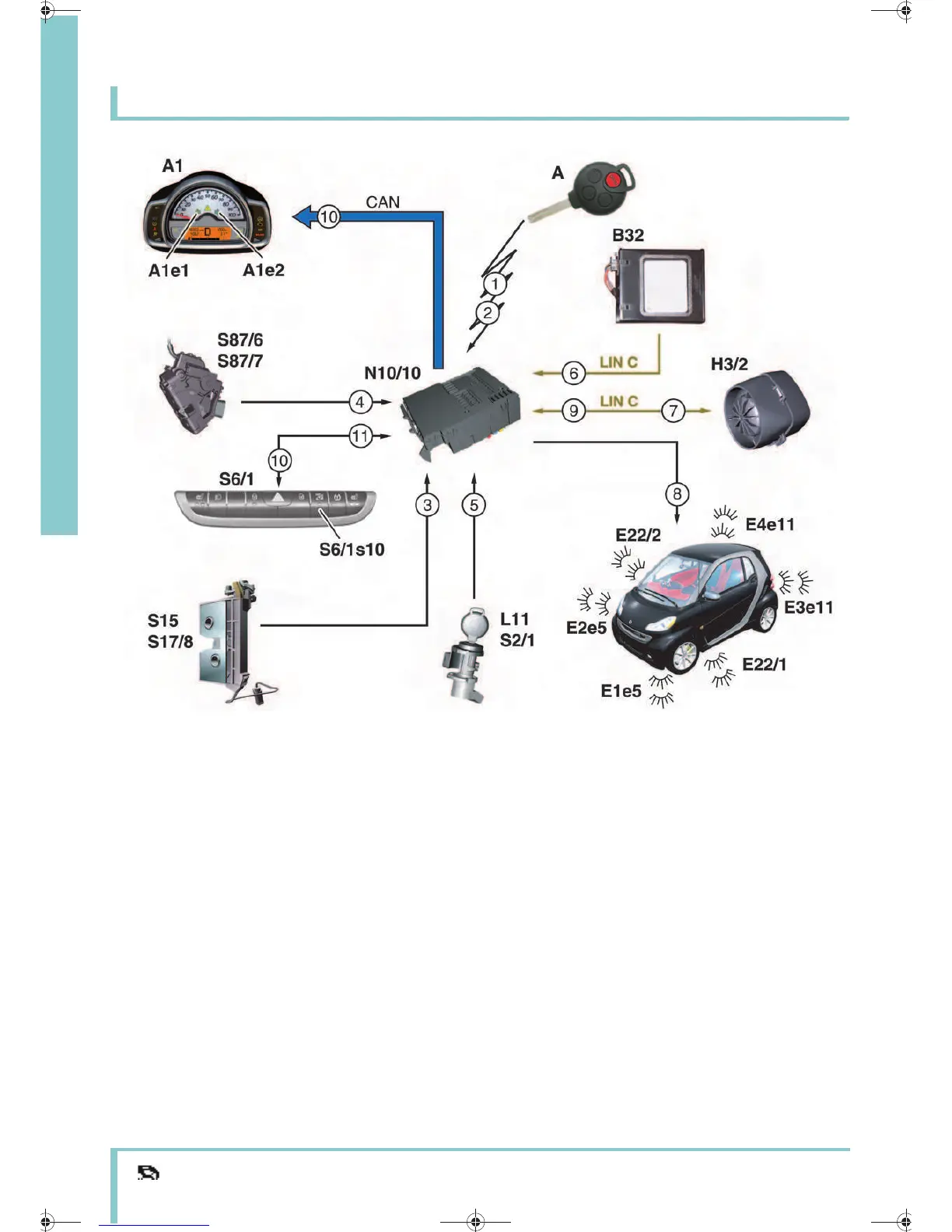

Data flow chart of anti-theft alarm system (ATA [EDW])
1 Activate ATA [EDW] with transmitter key
2 Deactivate ATA [EDW] with transmitter key
3 Rear-end door status
4 Doors status
5 Deactivate ATA [EDW] via ignition/starter
switch
6 Movement in interior signal
7 Alarm siren actuation
8 Turn signal lights actuation
9 Inclination sensor status change
10 Turn signal indicator actuation
11 Tow-away protection/interior protection
shutoff
A1 Instrument cluster
A1e1 Left turn signal indicator lamp
A1e2 Right turn signal indicator lamp
B32 ATA [EDW] microwave sensor
E1e5 Left turn signal light
E2e5 Right turn signal light
E3e11 Left brake/turn signal light
E4e11 Right brake/turn signal light
E22/1 Left additional turn signal lamp
E22/2 Right additional turn signal lamp
H3/2 Alarm siren with inclination sensor
L11 Transponder coil
N10/10 SAM control unit
S2/1 Ignition/starter switch
S6/1 Cockpit switch group
S6/1s10 Tow-away protection/interior protection
switch
S15 Remote trunk opening switch
(coupé)
S17/8 Trunk lid rotary tumbler microswitch
(cabrio)
S87/6 Right door rotary tumbler microswitch
S87/7 Left door rotary tumbler microswitch
A Transmitter key
CAN Controller Area Network
(data bus/CAN bus)
LIN C Interior Local Interconnect Network 2
