Wiring harnesses
24
Electrical system
Introduction of the smart fortwo, Model Series 451
P54.18-4507-00
Wiring harness groups

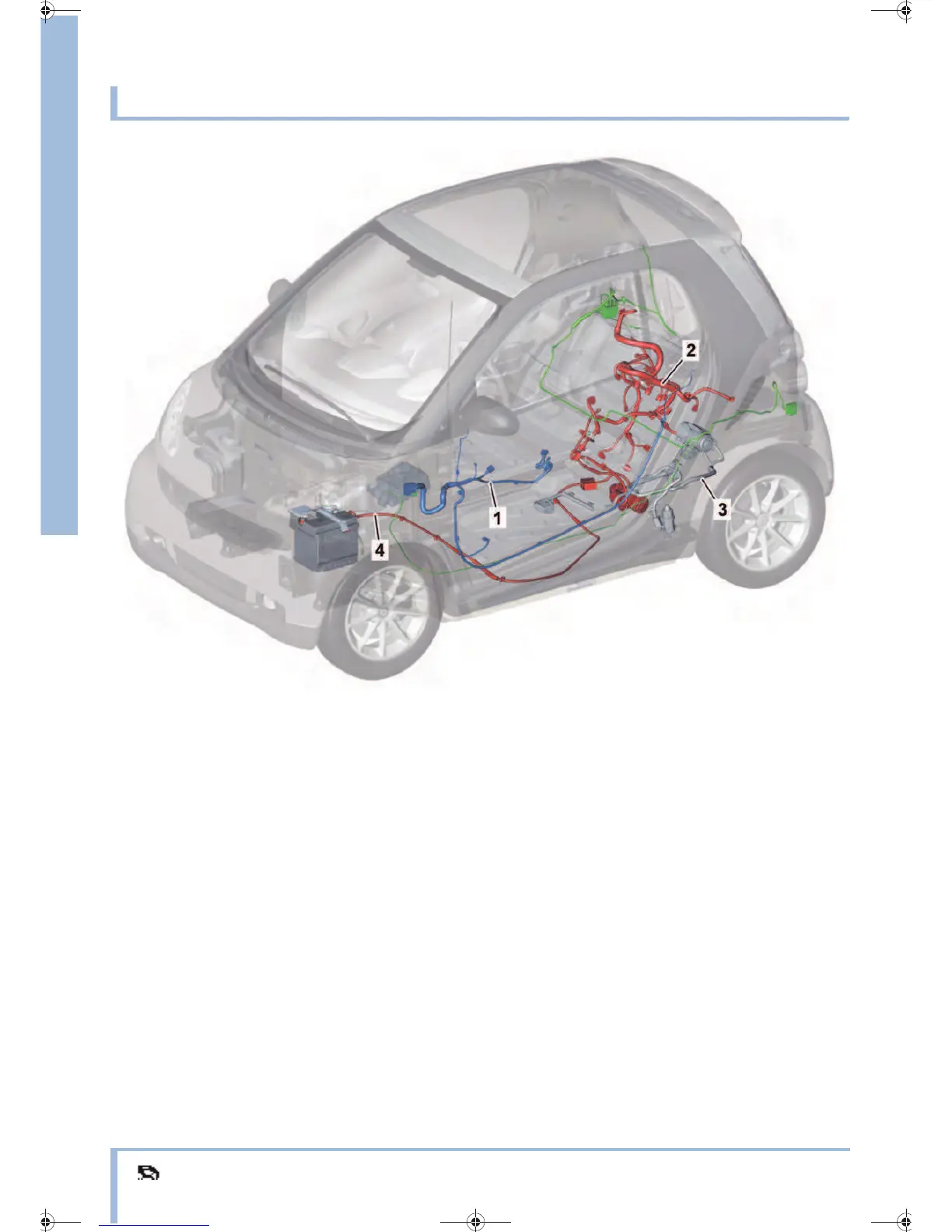

The wiring harness is divided into the following groups:
1 Main wiring harness
2 Engine wiring harness
3 Transmission wiring harness
4 Battery wiring harness
Not illustrated:
- Door wiring harness
- Soft top wiring harness (in smart fortwo cabrio)
- Rear-end door wiring harness
