Complete networking
22
Electrical system
Introduction of the smart fortwo, Model Series 451

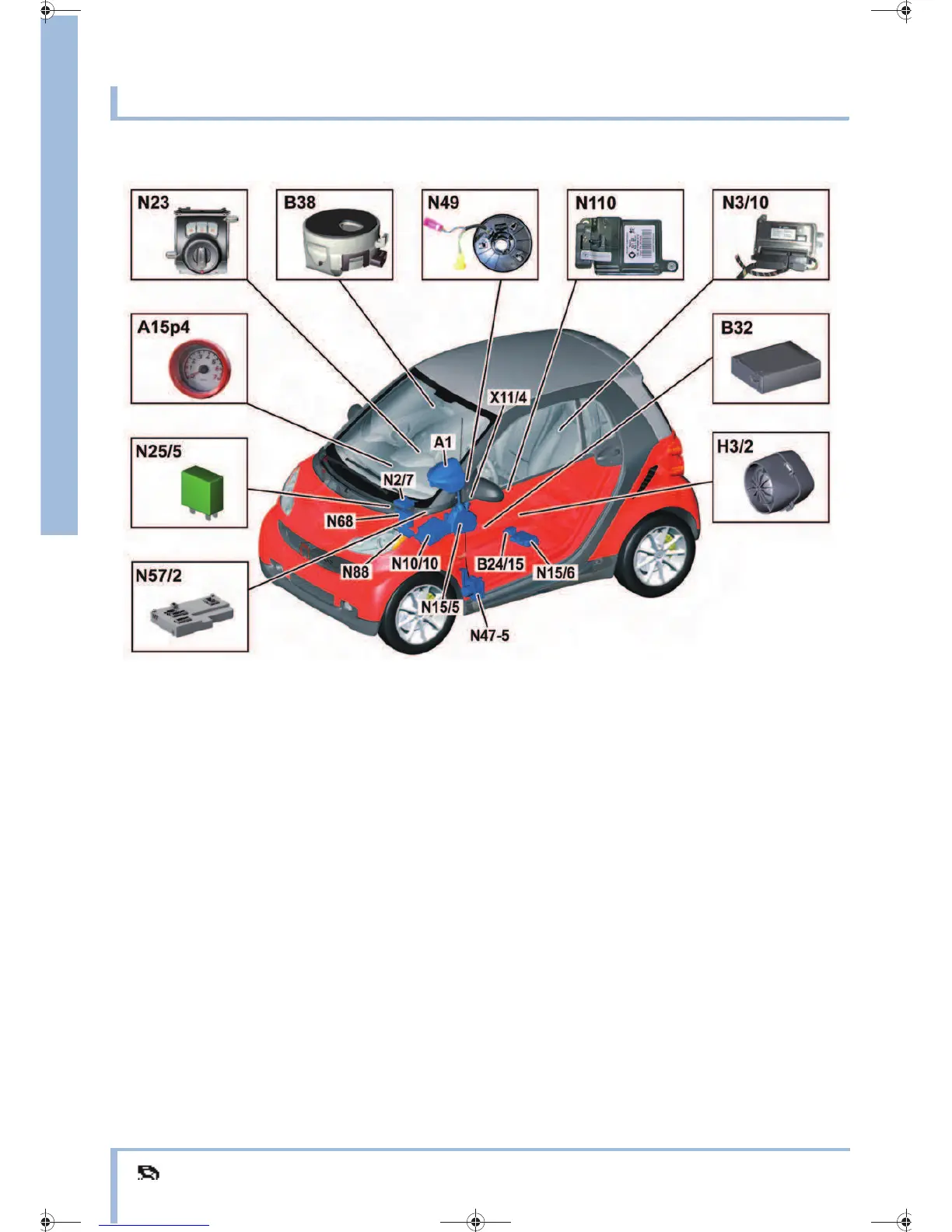

Overall network - location of components
P00.19-4338-00
Overall network - full equipment
A1 Instrument cluster
on the left side of the instrument panel
A15p4 Tachometer
(with code (V31) Cockpit clock and tachome-
ter package)
in the center of the instrument panel
B24/15 Yaw rate, lateral and longitudinal accelera-
tion sensor
under the floor covering near the driver
seat
B32 ATA [EDW] microwave sensor
(with code (V01) Anti-theft alarm system
(FFO)) under the center console near the
handbrake lever
B38 Rain sensor/light sensor
(with code (V54) Rain/light sensor)
in the middle of the windshield near the in-
side rearview mirror
H3/2 Alarm siren with inclination sensor
(with code (V01) Anti-theft alarm system
(FFO)) on the right in front of the fuel tank
N2/7 Restraint systems control unit
in the center under the instrument panel
N3/10 ME-SFI [ME] control unit
behind the right side paneling in the rear
N10/10 SAM control unit
on the left under the instrument panel
N15/5 Electronic selector lever module control
unit
(Legend continued on the next page)
