SMART Series 451 - Fuel system; Exhaust system

Fuel supply
44
Fuel system
Introduction of the smart fortwo, Model Series 451
P47.-10-2433-00

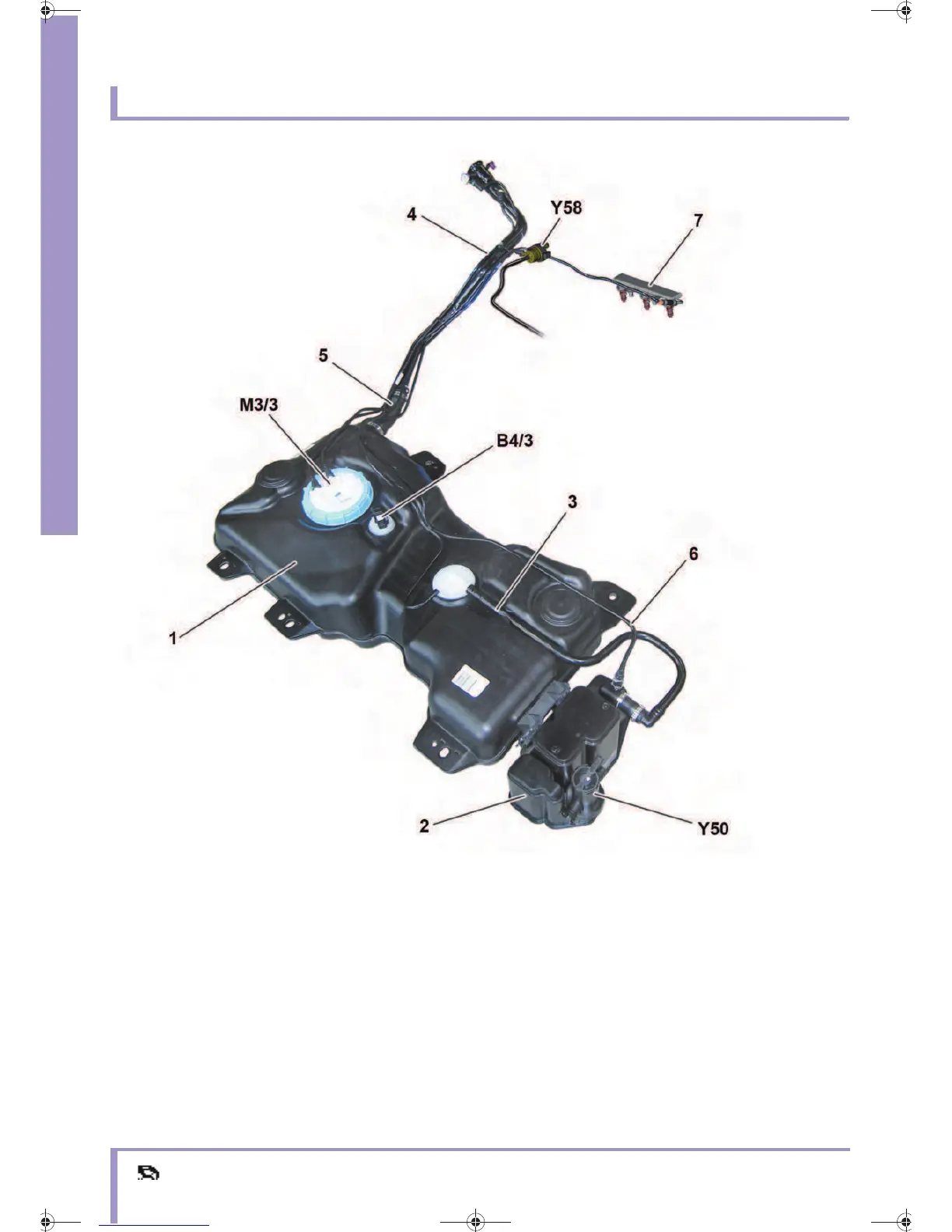

Fuel system
1 Fuel tank
2 Activated charcoal filter
3 Vent line
4 Filler neck
5 Filler neck hose connection
6 Purge line
7 Fuel distributor rail
B4/3 Fuel tank pressure sensor
M3/3 Fuel pump with fuel level sensor
Y50 Outside air shutoff valve
Y58 Tank vent valve
