Introduction of the smart fortwo, Model Series 451
P54.30-9683-00

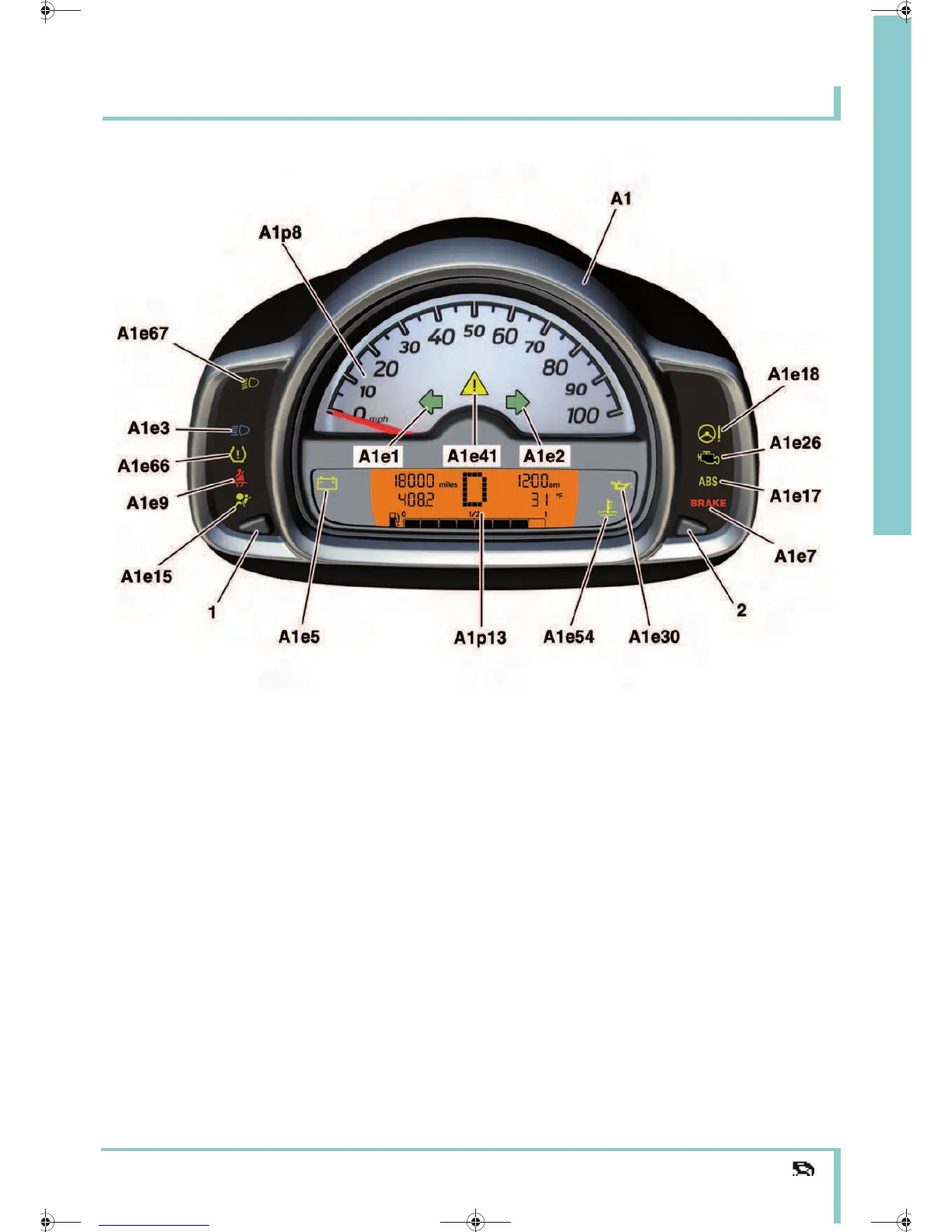

Instrument cluster
1 Left button, select multiple display / set
clock
2 Right button, instrument illumination / set
clock
A1 Instrument cluster
A1e1 Left turn signal indicator lamp
A1e2 Right turn signal indicator lamp
A1e3 High beam indicator lamp
A1e5 Alternator charge monitoring and warning
lamp
A1e7 Brake fluid and parking brake warning lamp
A1e9 Seat belt warning lamp
A1e15 Airbag indicator and warning lamp
A1e17 ABS indicator lamp
A1e18 Electric steering indicator lamp
A1e26 CHECK ENGINE indicator lamp
A1e30 Oil pressure warning lamp
A1e41 ESP warning lamp
A1e54 Coolant temperature warning lamp
A1e66 Tire pressure monitor warning lamp
A1e67 Low beam indicator lamp
A1p8 Electronic speedometer
A1p13 Multifunction display
