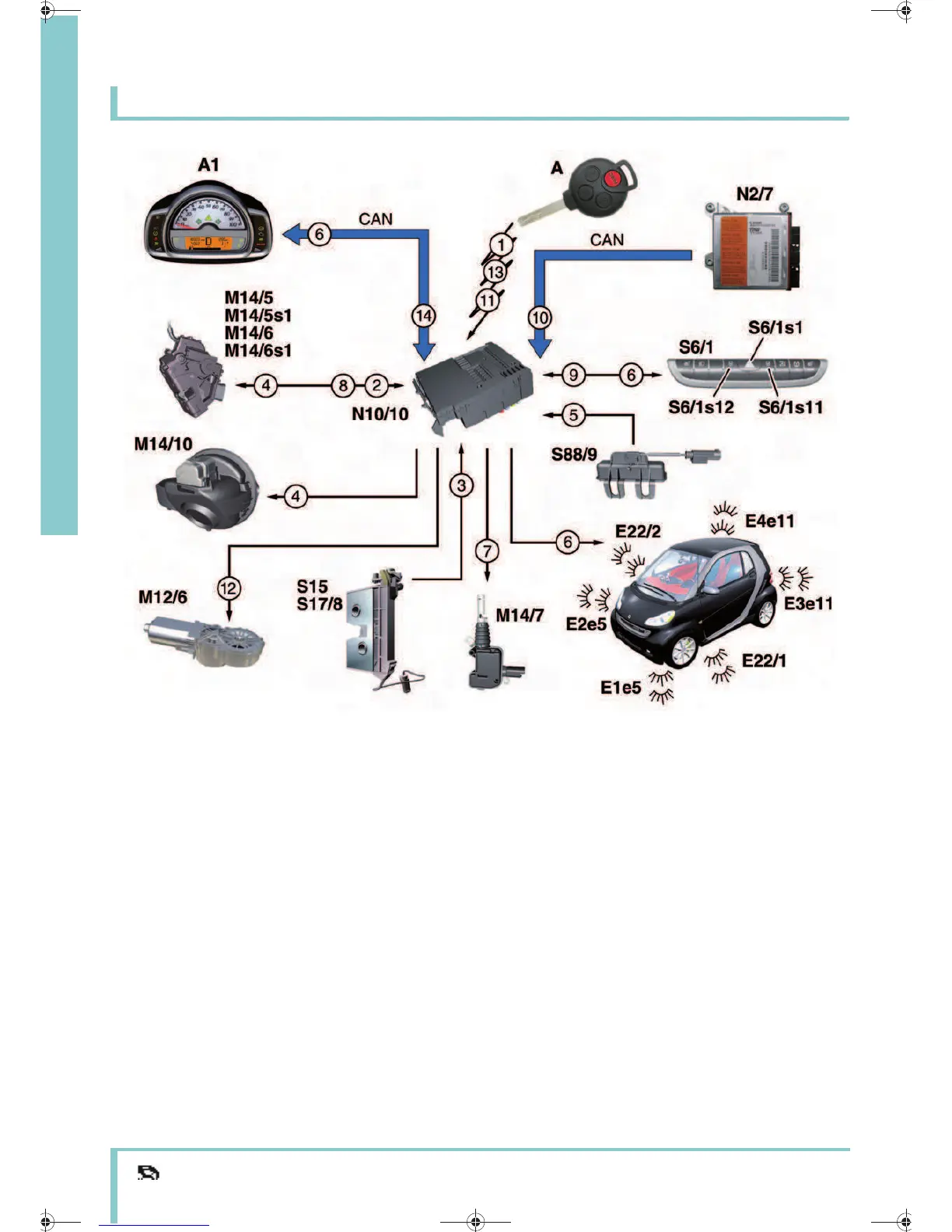

Central locking
98
Body
Introduction of the smart fortwo, Model Series 451
1 Unlocking/locking request
2 Doors status
3 Rear-end door status
4 Unlocking/locking actuation
5 Rear-end door unlocking request
6 Visual feedback actuation
7 Rear-end door unlocking actuation
8 Unlocking via inside door opener request
9 Inside unlocking/locking request
10 Emergency opening request
11 Rear-end door opening request (coupé)
12 Open soft top actuation (cabrio)
13 Open soft top request (cabrio)
14 Vehicle speed
A1 Instrument cluster
E1e5 Left turn signal light
E2e5 Right turn signal light
E3e11 Left brake/turn signal light
E4e11 Right brake/turn signal light
E22/1 Left additional turn signal lamp
E22/2 Right additional turn signal lamp
M12/6 Electric soft top motor (cabrio)
M14/5 Right door CL [ZV] motor
M14/5s1 Right door CL [ZV] microswitch
M14/6 Left door CL [ZV] motor
M14/6s1 Left door CL [ZV] microswitch
M14/7 Rear-end door CL [ZV] motor
M14/10 Fuel filler flap CL [ZV] motor
N2/7 Restraint systems control unit
N10/10 SAM control unit
S6/1 Cockpit switch group
S6/1s1 Hazard warning flasher switch
S6/1s11 Inside unlock CL [ZV] switch
S6/1s12 Inside lock CL [ZV] switch
S15 Remote trunk opening switch
(coupé)
S17/8 Trunk lid rotary tumbler microswitch
(cabrio)
S88/9 Rear-end door handle switch
A Transmitter key
CAN Controller Area Network
(data bus/CAN bus)
P80.20-3177-00
