CONFIDENTIAL AND PROPRIETARY
The Information contained in this document shall remain the sole exclusive property of s.m.s, smart microwave sensors GmbH and shall not
be disclosed by the recipient to third parties without prior consent of s.m.s, smart microwave sensors GmbH in writing.
UMRR-0C Type 42 User Manual USA-Canada_100MHz.docx Version 2 I Page 7 of 19 I November 22, 2017
5 Hardware
5.1 UMRR sensor
An example picture of a UMRR (universal medium-range radar) sensor (housing type 070707)
is shown in the figures below.

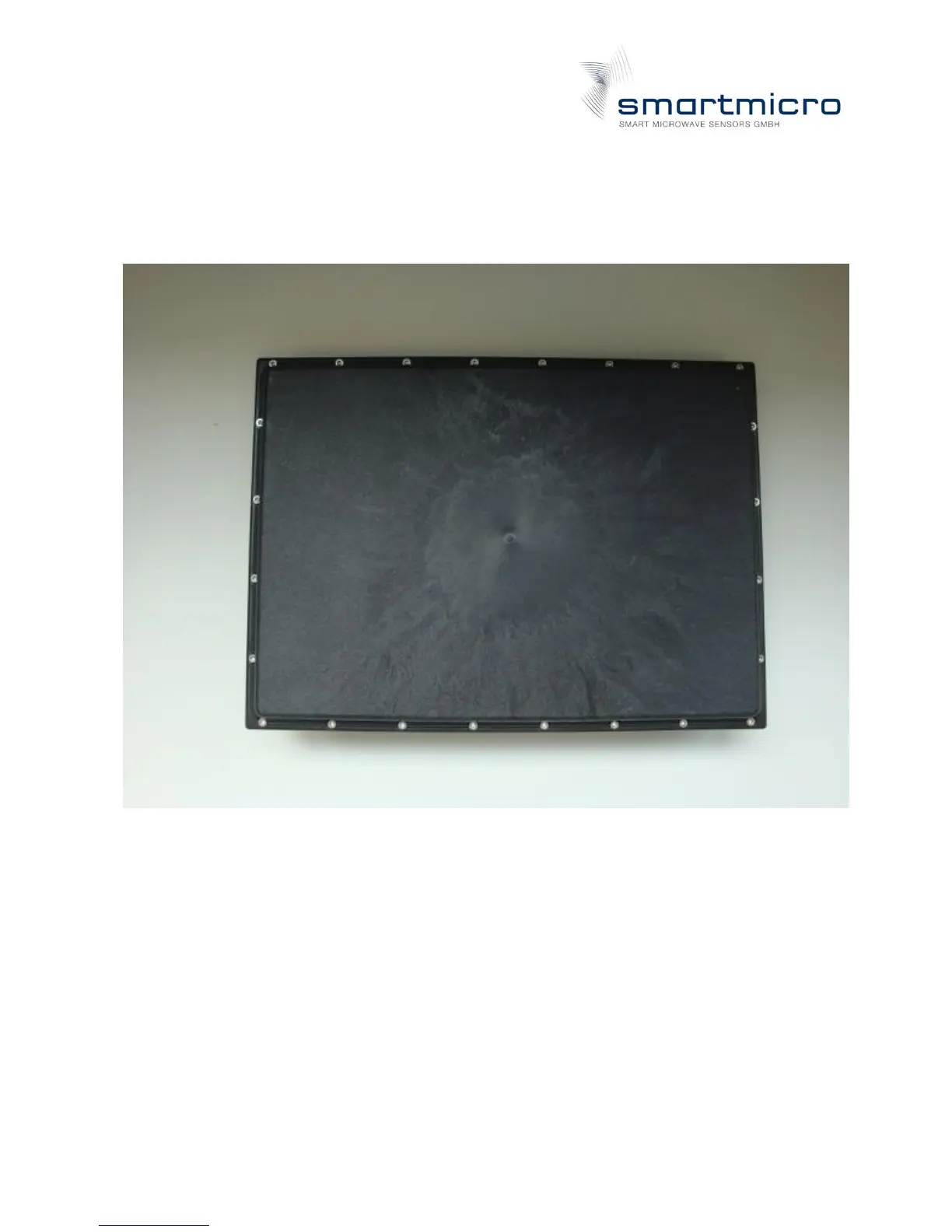

Figure 1: UMRR sensor, housing type 070707, front
