SmartPool NC71AU - NC71 AU Cleaner Parts

2
NC71AU
CLEANER PARTS
A
A
A
22

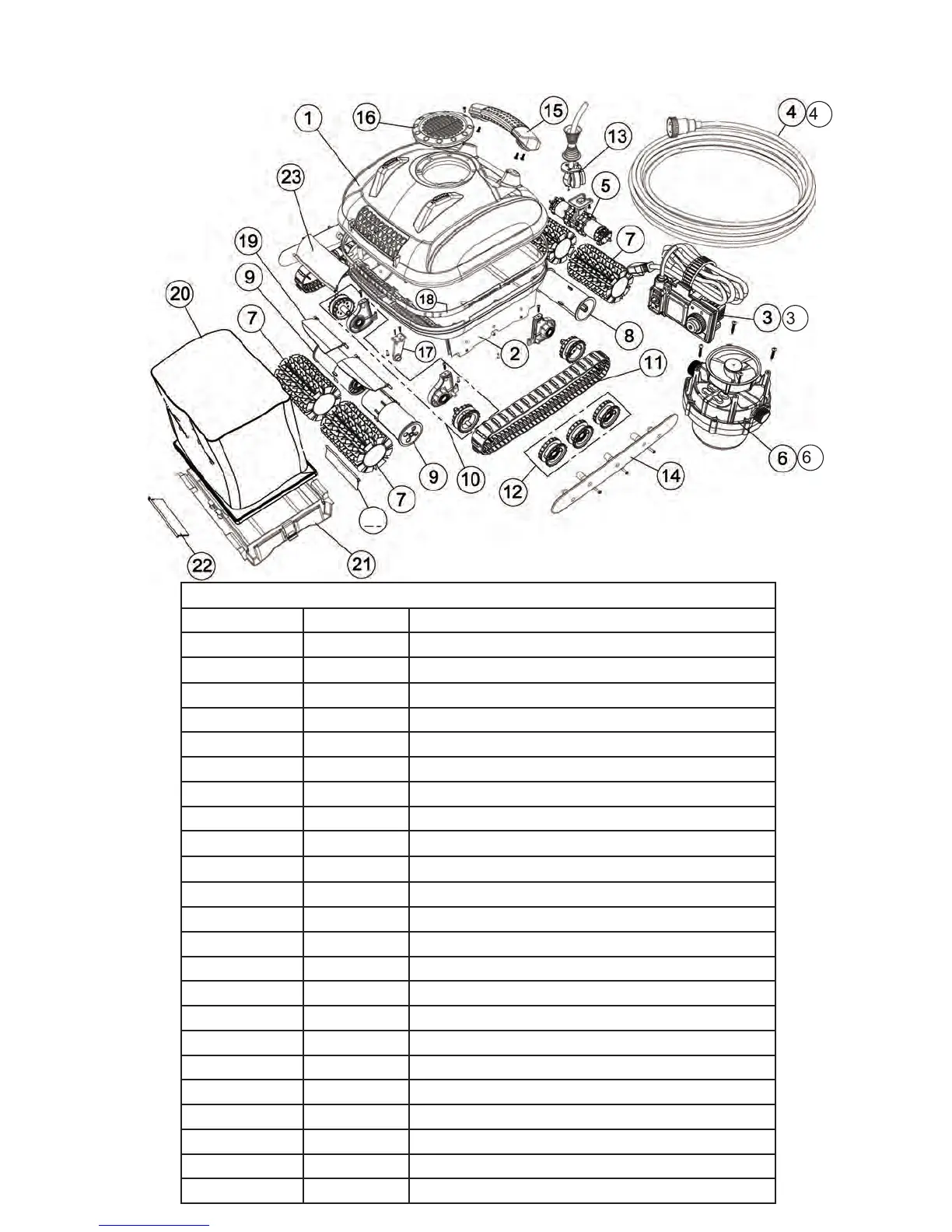

ADMIRAL ULTRA (NC71AU)
LOCATION PRODUCT # DESCRIPTION
1 NC7115 TOP SHELL
2 NC7106 LOWER CHASSIS
3 NC7122AU POWER SUPPLY
4 NC7123 CABLE
5 NC7107 DRIVE MOTOR
6 NC7113 PUMP MOTOR
7 NC1004 DRIVE BRUSH
8 NC7108 DRIVE WHEEL TUBE
9 NC7112 NON DRIVE WHEEL TUBE
10 NC7104 BRUSH MOUNT WITH BEARING (L/R SIDES)
11 NC7116 TRACKS (SET OF 2)
12 NC7117 TRACK WHEELS (SET OF 6)
13 NC7105 CABLE STRAIN RELIEF
14 NC7118 TRACK WHEEL COVER (L/R SIDES)
15 NC7109 HANDLE
16 NC7110 IMPELLER COVER
17 NC7103 BRUSH CENTER BRACKET
18 NC7119 UPPER/LOWER GASKET SEAL
19 NC7111 INNER DRAIN FLAPS
20 NC7120 FILTER BAG
21 NC7102 BOTTOM LID
22 NC7101 BOTTOM LID DOORS
23 NC7114 QUICK DRAIN FLAP
