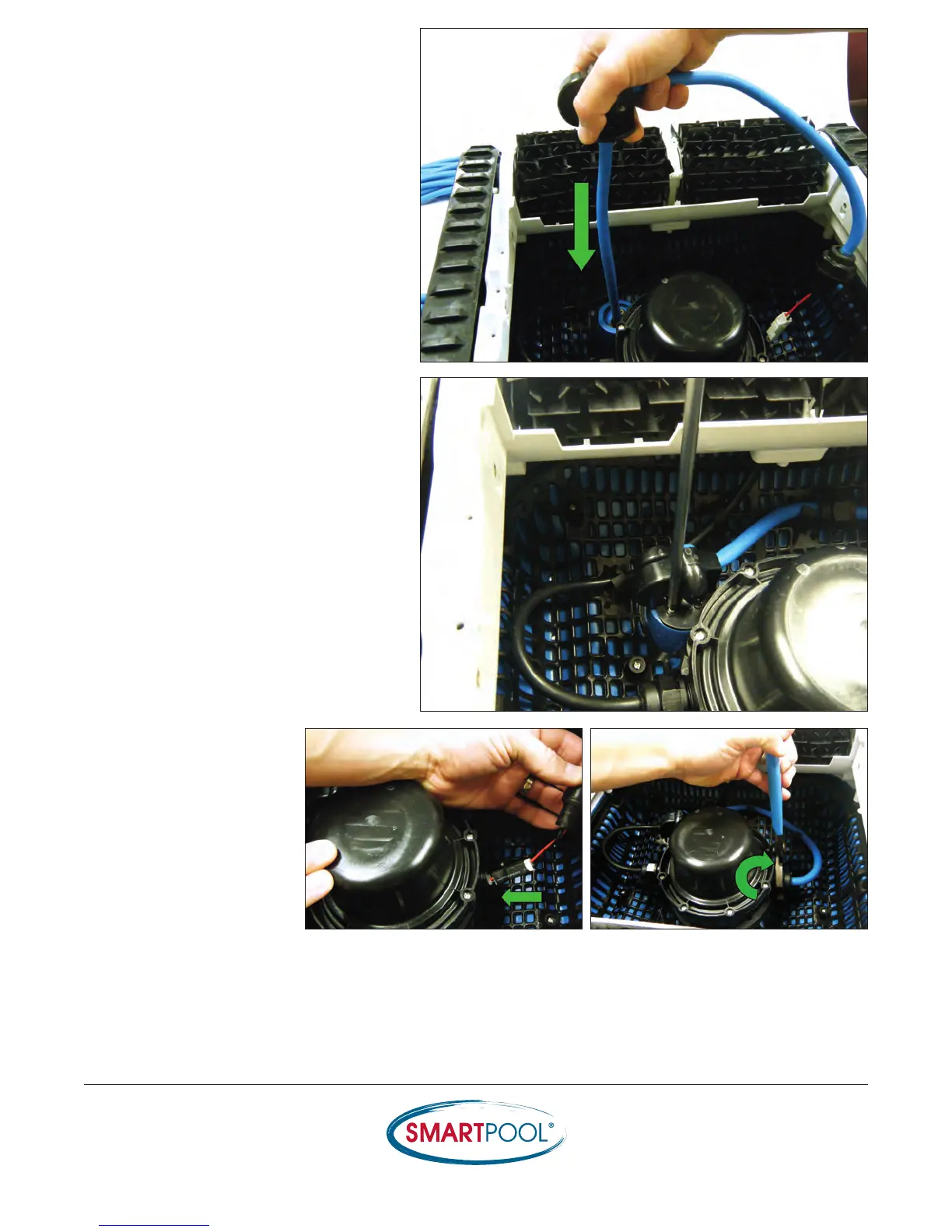

11) Pull the Cable from the back of cleaner so
that the Strain Relief is resting against the
shell.
12) Reinstall the (2) screws that hold the
strain relief to the shell of the cleaner by
aligning the threads of the cable collar.
13) Reconnect the Cable
harness (picture shows
shrink tubing: NOT
need), feed the wire
into the Pump Motor
and tighten the fitting.
