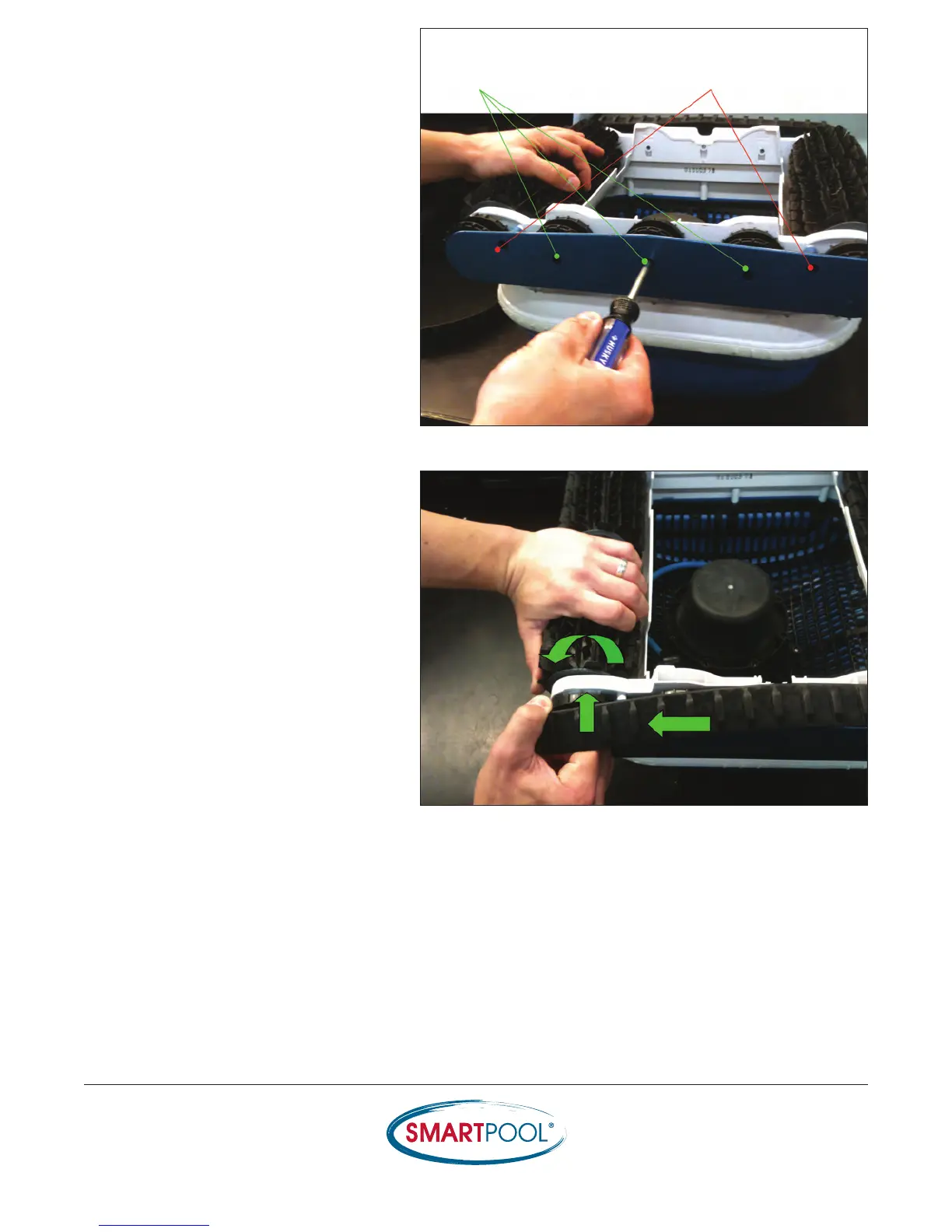

14) Reinstall the Side-Plates and tighten
the screws using a Phillips Head
screwdriver.
(Note: The curve of the Side-Plate
should face the pool’s surface or the
up direction in this example.
The (3) center screws
are machine threaded
The (2) outside screws
are self-tapping)
15) Reinstall the tracks by placing one end
on the drive pulley, pulling the track to
the opposing pulley and rotating the
brush to fit the track.
