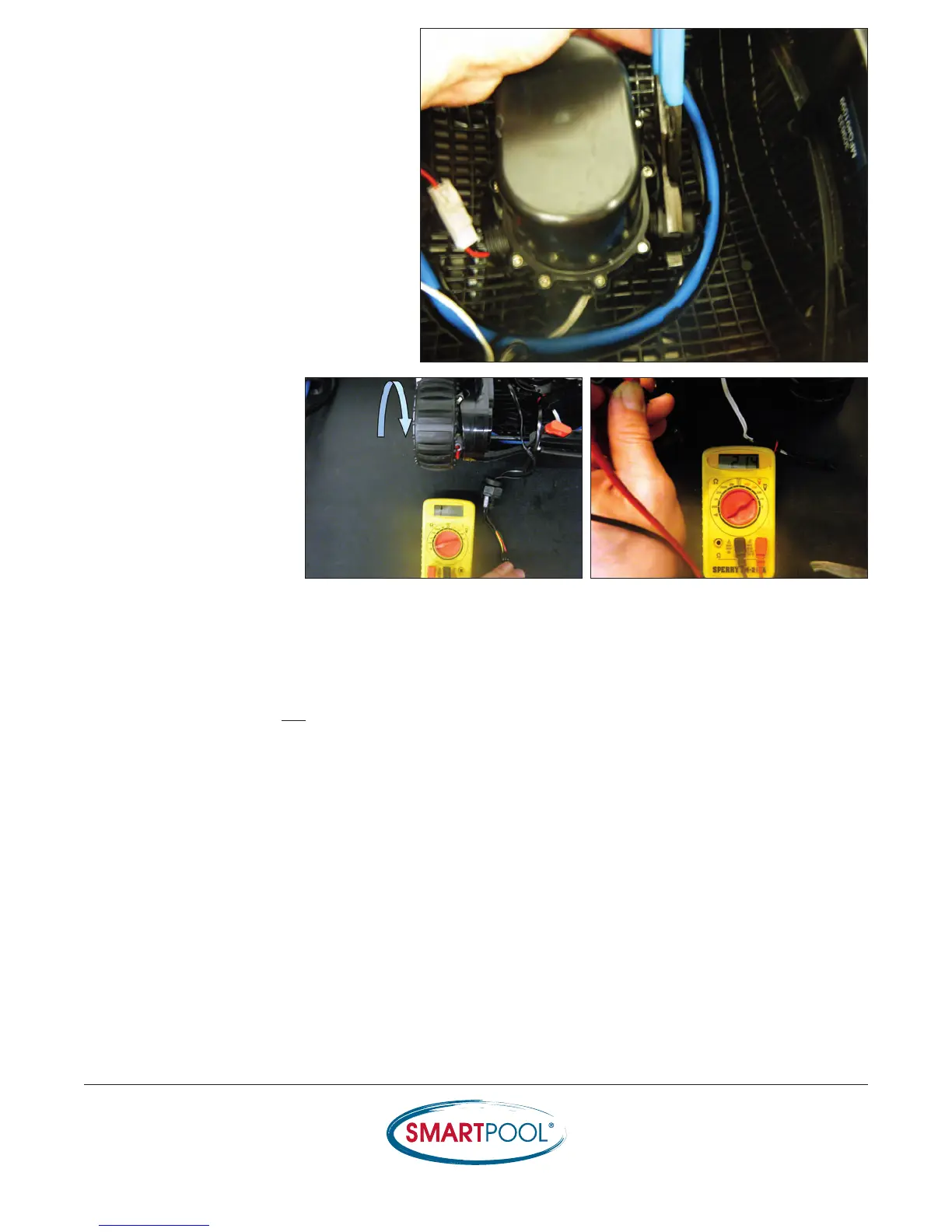

14) Loosen the pressure fitting to the
Sensor Wheels, pull on the wires to
expose the connection and separate
the connection.
15) While reading
resistance/checking for
continuity, place the
prongs of the voltmeter
on the two metal contacts
on 1 of the 2 Sensor
Wheel connections and
rotate the Sensor Wheel.
Repeat this process for
the other wheel.
• If the circuit does not Open and Close then replace the Chassis.
• If both Sensor Wheels Test OK then replace the Pump Motor and Water Test.
