51

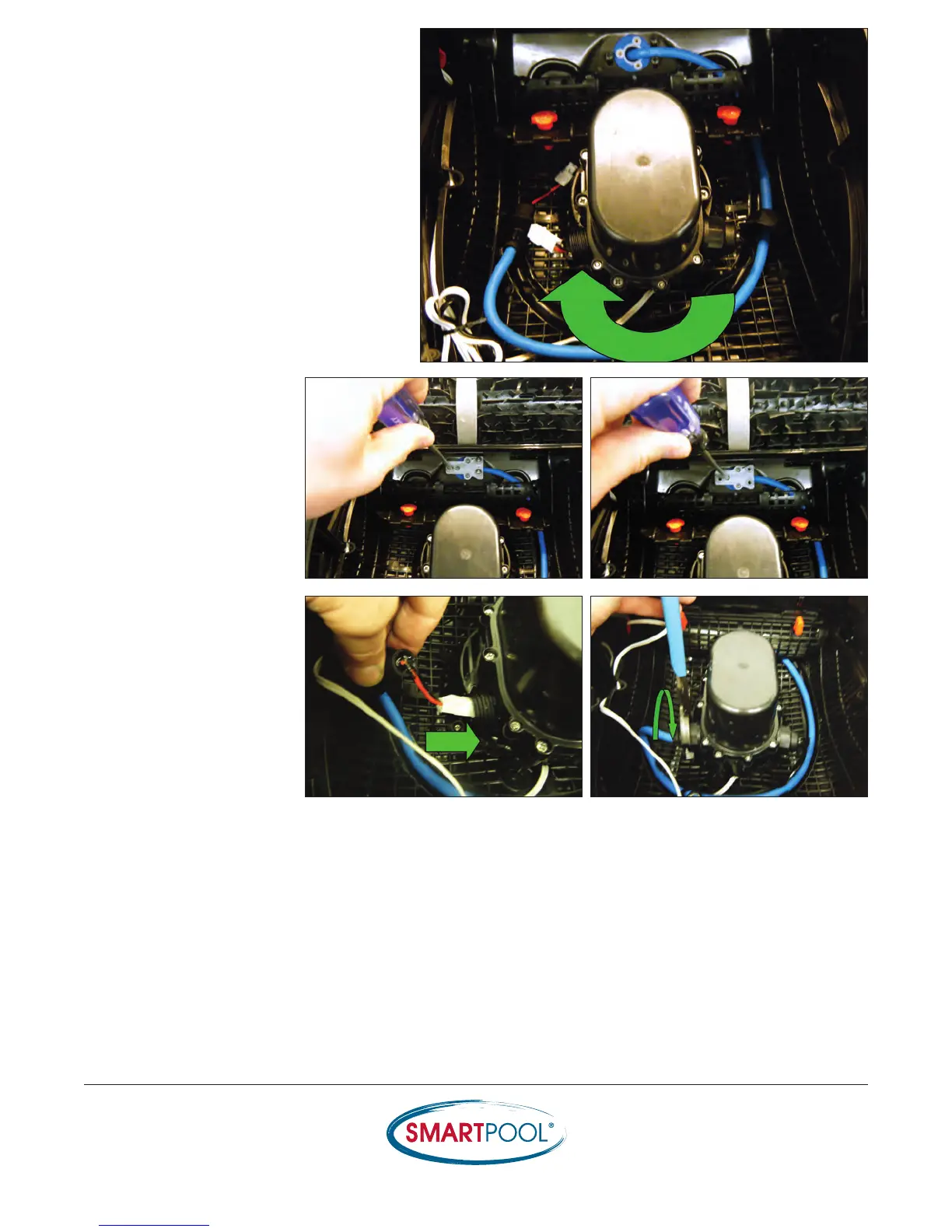

6) Pull enough Cable into the cleaner to
reach the Pump Motor by feeding it
around the cable channel.
8) Reconnect the cable
harness, insert the
connection into the Pump
Motor and tighten the
pressure fitting.
7) Align the holes of the
Strain Relief and the
Cable and secure the
Cable to the cleaner
shell. Start with the larger
outer screws and then
install the inner screws.
