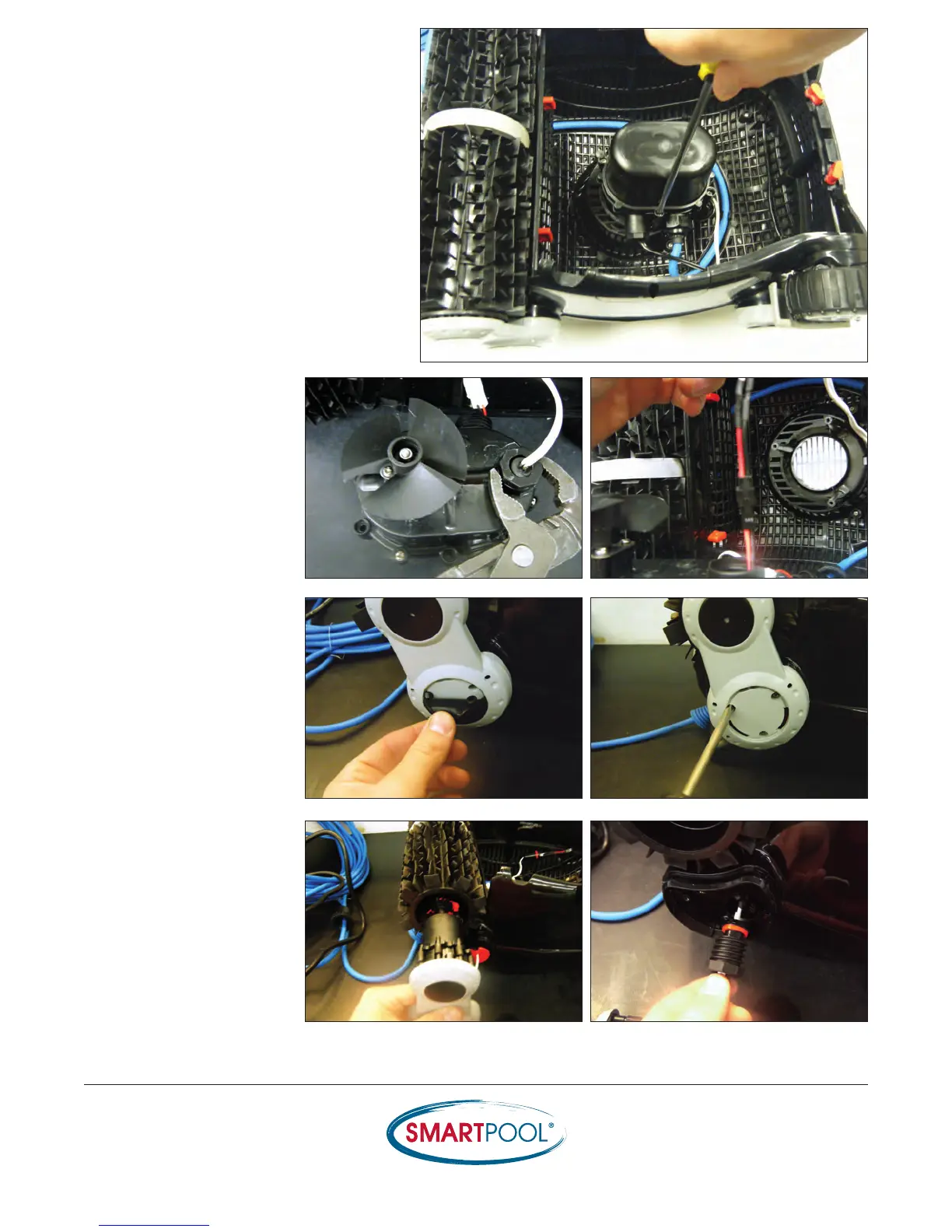

1) Unscrew the Pump Motor from the unit
by removing the (4) mounting screws.
2) Loosen the pressure
fitting to the Drive
Motor, pull on wire to
expose connection and
disconnect the harness.
3) Remove the large rubber
cap on the Drive Motor
side and remove the (3)
motor mount screws.
4) Remove the Drive Motor
from the Drive Tube and
pull the cable through
the shell.
