SmartPool NC71AU - Page 63

w w w . s m a r t p o o l . c o m
63

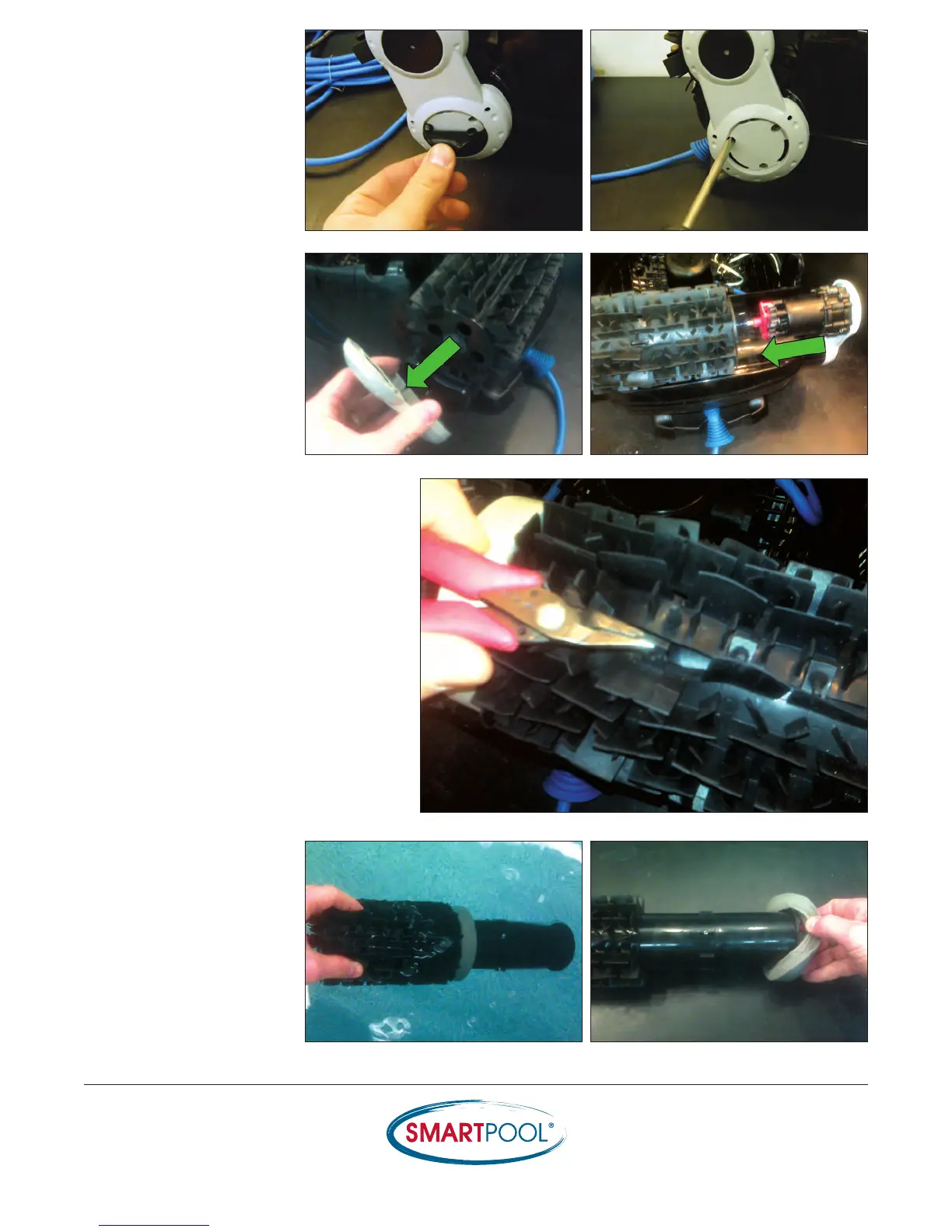

1) Remove the large rubber
cap on the NON-Drive
Motor side and remove
the (3) motor mount
screws.
2) Remove the Drive Tube
Mount and slide wheel
tube assembly off the
Drive Motor.
3) Lift the support tab over the post to
remove the brush from the wheel tube.
4) Soften the ring by
submerging it in water,
then remove the ring
from the wheel tube.
