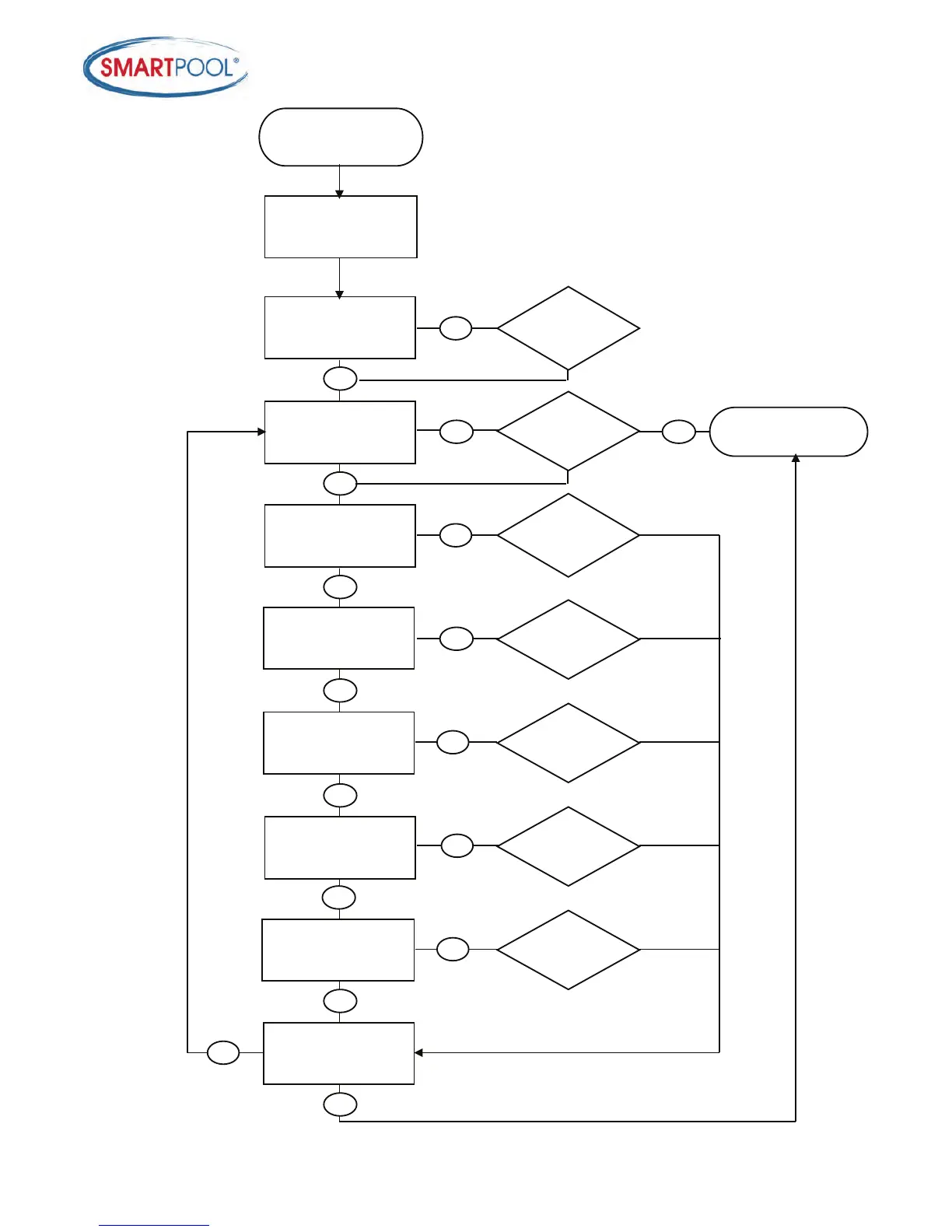

Smartpool Robotic Cleaner Troubleshooting Guide
Models:
Nitro/Admiral/Admiral Plus
Test
Cable
(25-28Vdc)
Test
Power Supply
(28-32Vdc)
Self Test
(OK)
Filter Bag Properly
Installed
Replace
Power
Supply
Water Test
(OK)
Replace
Cable
Return to Customer
Test
Pump Motor
(25-28Vdc)
Replace
Pump Motor
Test Drive Motor
(18-23Vdc)
Remove any debris from
impeller or tracks and
check for damage.
Install Filter
Bag
correctly
Replace
Drive Motor
Y
N
Y
Y
N
Y
N
N
N
Y
Y
Y
N
If Necessary:
Test
Sensor Wheels
(Circuit Open/Close)
Replace
Chassis
N
Water Test
(OK)
Y
N
Y
