SmartPool PT4i - Page 3

3
REMOVING THE CLEANER FROM THE POOL
INSTALLATION
• Slowly pull the blue cord to get the cleaner to the pool surface and near
the edge of the pool. DO NOT PULL THE CLEANER OUT OF THE POOL BY
THE CORD.
• Reach down and grasp the handle of the cleaner and remove it from the
pool as shown in Figures 1 and 2.

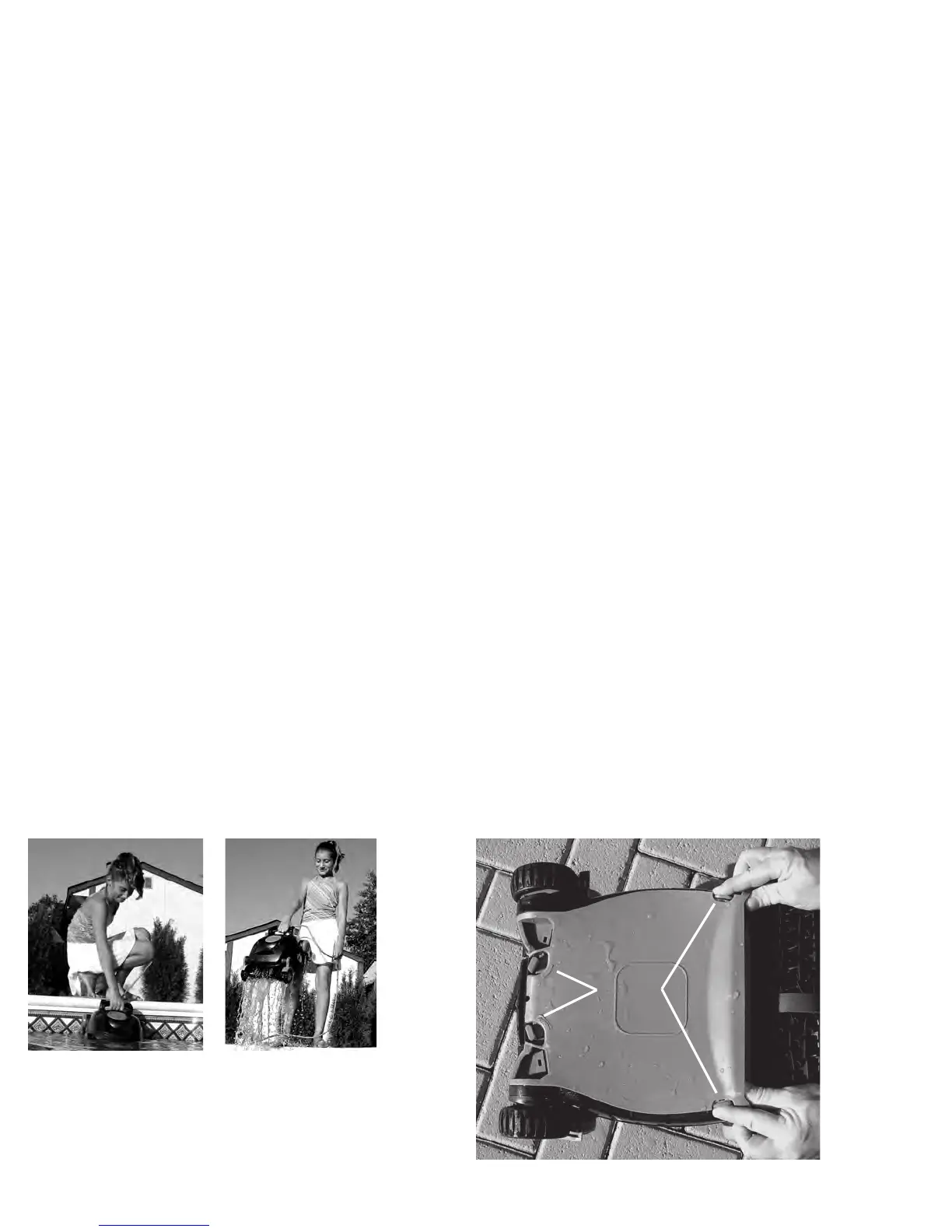

FIGURE 1: Grasping Handle
FIGURE 2: Lift from Pool by Handle
CLEANING THE FILTER BAG (Filter Bag Should Be Cleaned After Every Use.)
• Turn cleaner upside down and place on ground so the bottom lid is exposed.
• Turn red locking pegs (by wheel area) to the unlocked position as shown in Fig 3. Next
press the two red locking clips near the roller brush in towards the center of the unit.
Lift the bottom lid out.
BA
A: Turn levers
inward as
indicated by
arrows
imprinted
on lid
B: Press the
red tabs
inward as
shown and
lift lid off
cleaner
FIGURE 3
Congratulations on your purchase of the most technologically advanced automatic pool vacuum available today. The PT4i is easy to use and will make maintaining your pool
affordable and effortless. Following these simple directions will ensure that the PT4i will quickly and efficiently clean your pool today and for many years to come.
• Check to make sure the power supply is in the OFF position.
• Plug the power supply into a GFI (ground Fault Interrupter) or ELI (Earth Link Interrupter) protected electrical outlet (110 Volt).
• Do not plug the power supply into an extension cord.
• Plug in the connector from the cleaner into the power supply. The connector is keyed so that it will only plug into the power supply one way. Make sure that the plug is pushed all the
way onto the power supply. Slide the connector lock (strain relief) onto the connector and turn the connector lock clockwise until it is snug.
• Walk the cleaner to the farthest point of the pool to ensure full pool coverage.
DO NOT RUN THE CLEANER OUT OF THE WATER.
OPERATING THE CLEANER OUT OF THE WATER WILL DAMAGE THE MOTORS AND VOID THE WARRANTY
• Place the cleaner into the pool and if needed rock the cleaner side to side to release any trapped air. The cleaner will sink to the bottom of the pool.
• Put enough of the blue cord into the water to assure that the cleaner can easily reach all areas of the pool.
• Turn the switch on the power supply to the ON position.
• The cleaner will begin its cleaning program.
• The cleaner will automatically shut itself down after two hours.
• If a second cleaning is required or the unit is accidentally shut off, you should wait 30 seconds before switching the unit on again.
IMPORTANT NOTE: During normal operation, the cleaner will appear to shut off for a few seconds, raise the front wheels off the pool
bottom and move either left or right or turn for an undetermined amount of time. This is normal and has been preprogrammed into
the unit to assure the quickest and most efficient cleaning of your pool.
