3 Electronic switch mode
Com line connects
Up line
Motor up
Com
Down
Up
Com line connects
Down line
Motor down
Com
Down
Up
Com line connected to the
Up line and Down line
Motor stop
Com
Down
Up
Com line connects
Stop line
Motor stop
Com
Down
Up
Stop
4 Single channel pushbutton switch mode
Com line connects to Up
or Down lines first time
Motor up
Com
Up/Down
Com
Up/Down
Com
Up/Down
Com line connects to Up
or Down line second time
Motor stop
Com line connects to Up
or Down line third time
Motor down

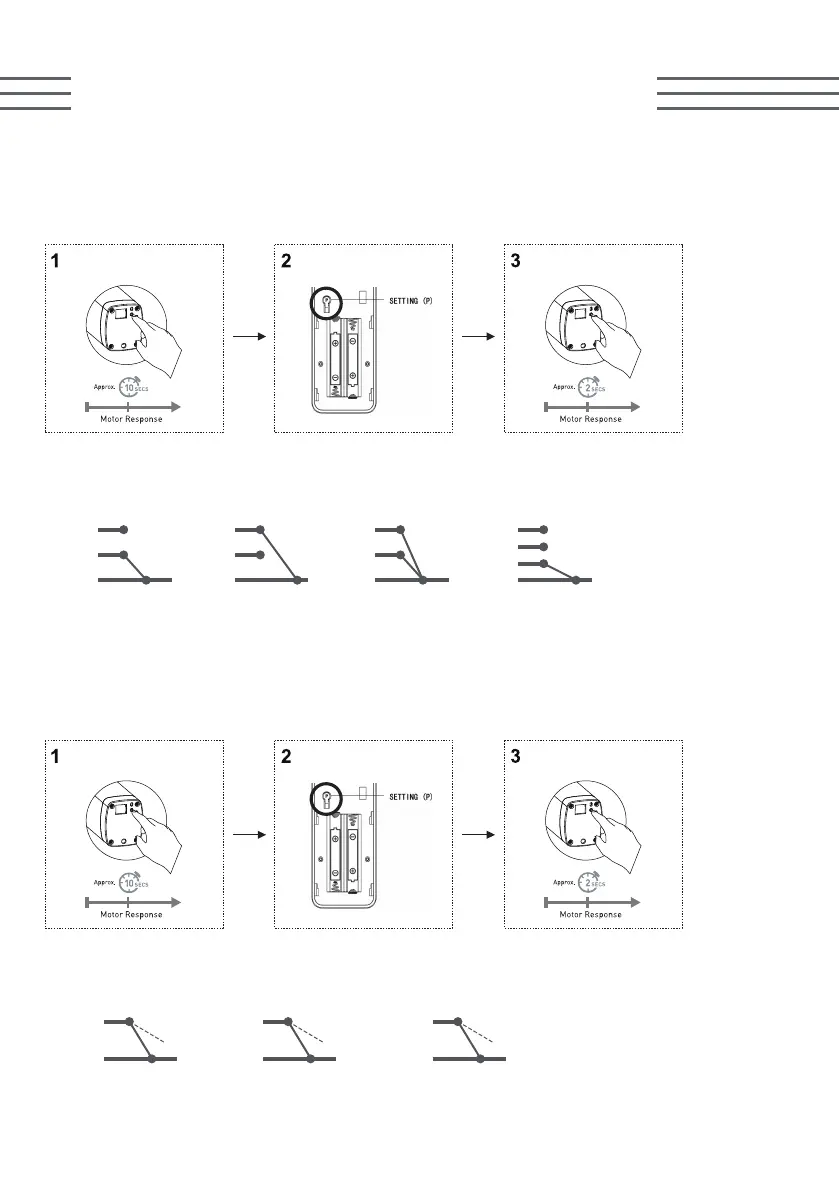

Weak-current Switch Modes (Optional)
Press and hold P1 button for 10 S (3 flashes ) release button and beeps 3 times, press P2 for 3 times (3
flashes and 3 beeps), then press P1 button for 2S (5 flashes and 3 beeps), the mode has been successfully
switched.
Press and hold P1 button for 10S (3 flashes), release button and beeps 3 times, press P2 for 4 times (4
flashes and 4 beeps), then press P1 button for 2S (5 flashes and 3 beeps), the mode has been successfully
switched.
Note: 3 flash and 3 beep Note: 5 flashes and 3 beeps
Note: 3 flashes, release button and
3 beeps
Press & Hold motor button
(2sec)
Press P three times
Press & Hold motor button
(10sec)
Note: 4 flash and 4 beep Note: 5 flashes and 3 beeps
Note: 3 flashes, release button and
3 beeps
Press & Hold motor button
(2sec)
Press P four times
Press & Hold motor button
(10sec)
