SMC Networks Barricade SMC2404WBR User Manual

BACK – Router - Static IP Connection
NEXT – Computer Configuration - Configuring your
PC
Connecting To Your SMC2404WBR 11/22 Mbps Wireless Broadband
Router
There are 3 major segments that you will connect together: Modem to
Router to Computer.

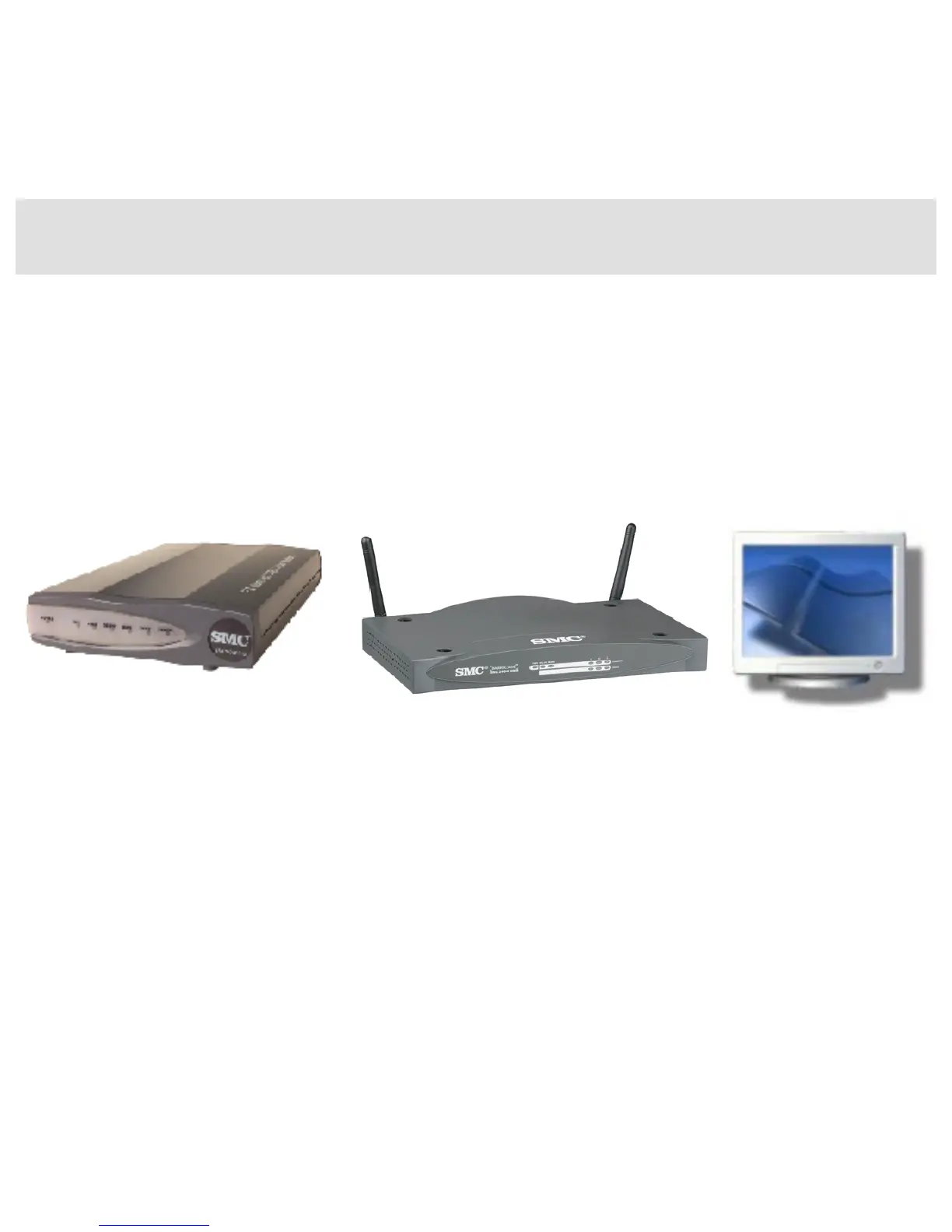

Figure 1.0 The picture above illustrates the hardware needed to set up your
network. (Shown above from left to right is the SM8002CM and
SMC2404WBR. The picture of the monitor symbolizes the connection coming
from your router to your computer.)
Step 1: You must connect your computer to the router using the RJ45 cable that
came with the router. Then connect the modem to the WAN port of the router
using the cable that came with your modem. Make sure that the BNC connection
to the cable modem is secure at all times. Plug the appropriate power adapter into
the router.
Step 2: Double-check to be sure that the RJ45 connection coming from the
modem connects to the WAN port at the back of the router. Once the RJ45
connector is plugged into the WAN port, you should hear it click into the RJ45
