System Outline

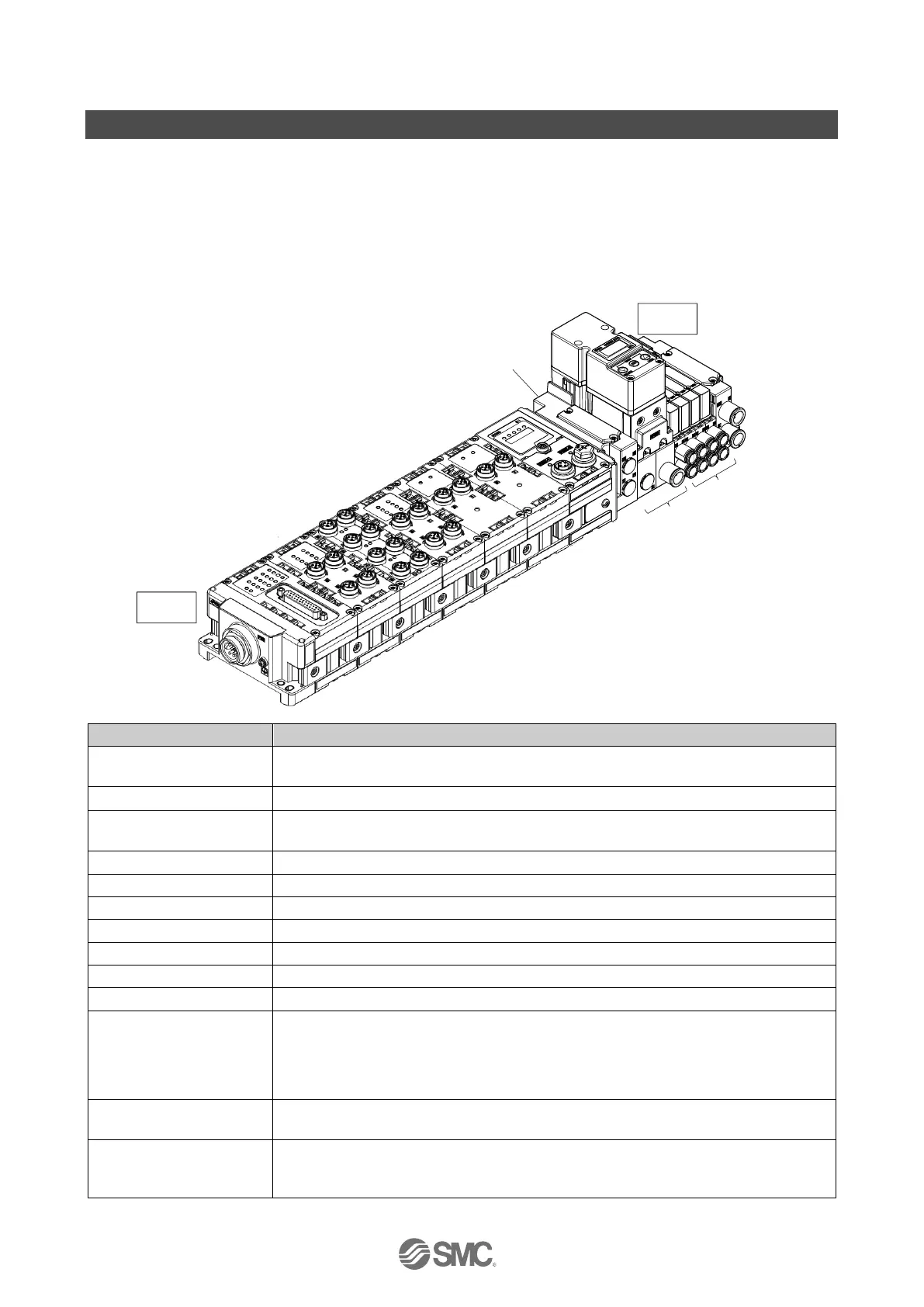

■System configuration
The EX600 range of units can be connected to a fieldbus to realize the reduction of input or output device
wiring and the distributed control system.
The system communicates with the fieldbus through the SI unit.
One SI unit can be connected to manifold valves with up to 64 stations (128 outputs) and up to 4 ITV
modules in random order. In addition, up to 9 sets of input, output, input/output units, and IO-Link master
units, including SI units, can be connected in random order.
Name
Function
SI unit
Performs fieldbus communication, solenoid valve manifold ON/OFF output, and ITV
module control.
Digital input unit
For connecting sensors with switch output capability. PNP & NPN types are available.
Digital output unit
For connecting output device such as solenoid valves, lamps, buzzers, etc.
PNP & NPN types are available.
Digital I/O unit
This unit has both digital input and output functions. PNP & NPN types are available.
Analogue input unit
For connecting sensors with analogue output capability.
Analogue output unit
For connecting to equipment which can receive analogue signals.
Analogue I/O unit
This unit has both analogue input and output functions.
IO-Link master unit
Compatible with IO-Link devices. There are two port types, class A and class B.
End plate
Connected at EX600 Manifold’s D-side, incorporating the power supply connection.
SUP/EXH block assembly
In addition to supplying air, connects electrically a SI unit to a manifold block.
Manifold block assembly
It is electrically connected to another manifold block assembly and communicates with
each other.
There are two types: one for valve stations and the other for ITV modules. For valve
stations, the number of stations increase/decrease in increments of 4 stations (8 outputs)
per block.
Solenoid valve manifold
An assembly of solenoid valves. These are mounted on a manifold block assembly and
operate by receiving output signals from the manifold block assembly.
ITV module
For the stepless control of air pressure in proportion to electrical signals.
This is mounted on a manifold block assembly and communicates with the SI unit via
the manifold block assembly.
ITV module
Solenoid valve manifold
SI unit
Analogue input unit
Analogue output unit
Analogue I/O unit
Digital input unit
IO-Link master unit
Digital I/O unit
End plate
Unit 0
Unit 1
Unit 2
Unit 4
Unit 5
Unit 6
Unit 3
D side
U side
Manifold block
assembly for
ITV module
SUP/EXH block
assembly
Manifold block
assembly for
Solenoid valve
