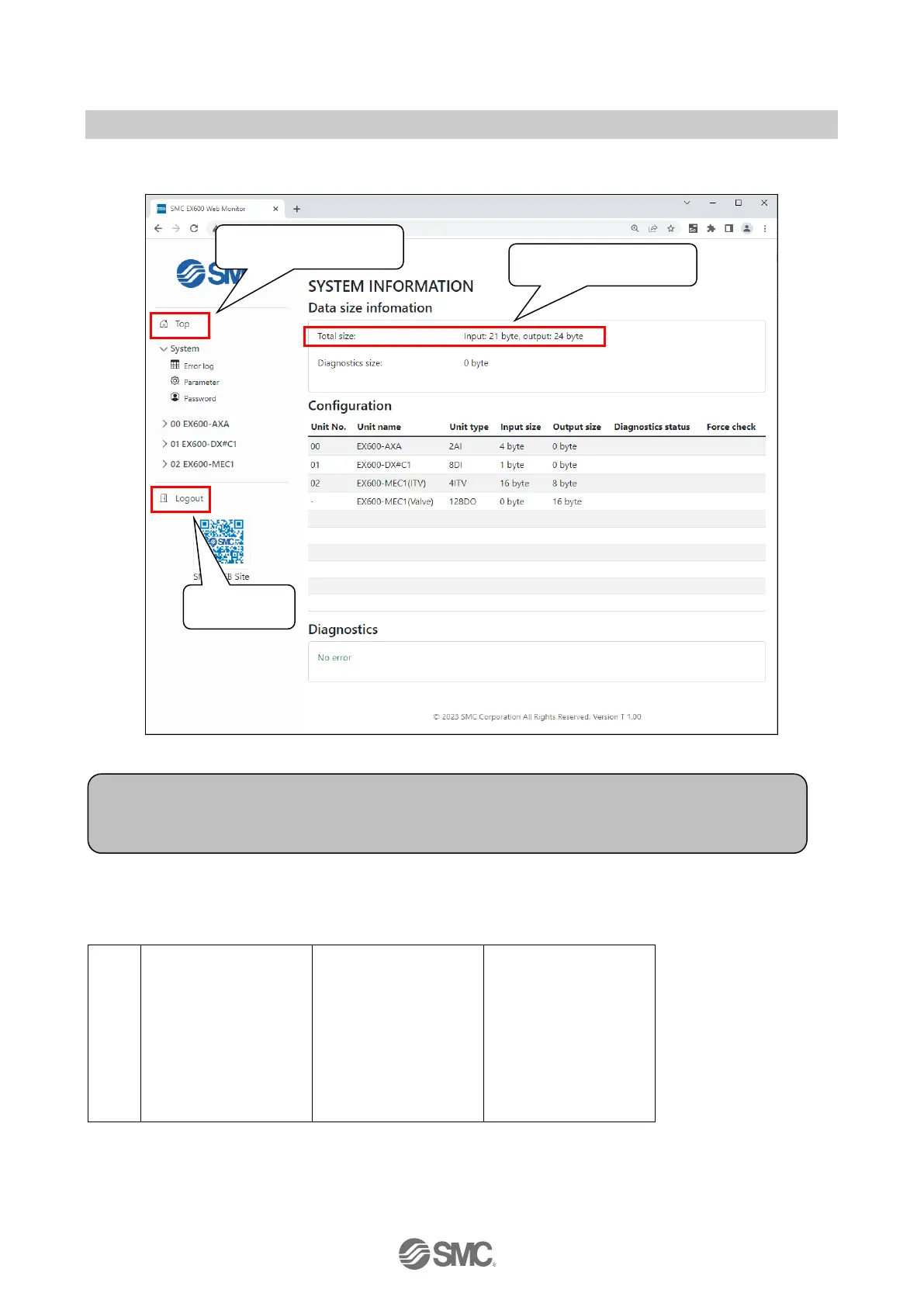

(5) When the unit information is loaded, the SYSTEM INFORMATION web page is displayed.
This page is the TOP web page of the EX600 webserver.
Configuration
Unit No.0
Unit No.1
Unit No.2
End
plate
EX600-AXA
EX600-DX#C1
SI unit
EX600-MEC1
[switch setting]
No diagnostics
4 ITV modules max.
128 valve outputs max.
NOTE
The above screen shows the case when the manifold hardware configuration is as shown below.
The total size of
input/output is displayed.
Click here to return to this
screen from other pages.
Click here to
log out.
