26.8. Recovering the IP address of the Ethernet ITV
Note: ITVs have a factory preconfigured static IP address (192.168.1.20). Use this procedure when
the current IP address of an ITV is unknown.
Power off the ITV
Set all the dip switches down or off or 0.
Power on the ITV
Wait for the MS LED to start to flash green
Power off the ITV
Set the dip switches to all up or On or 1
ITV should now be back to default IP address of 192.168.1.20

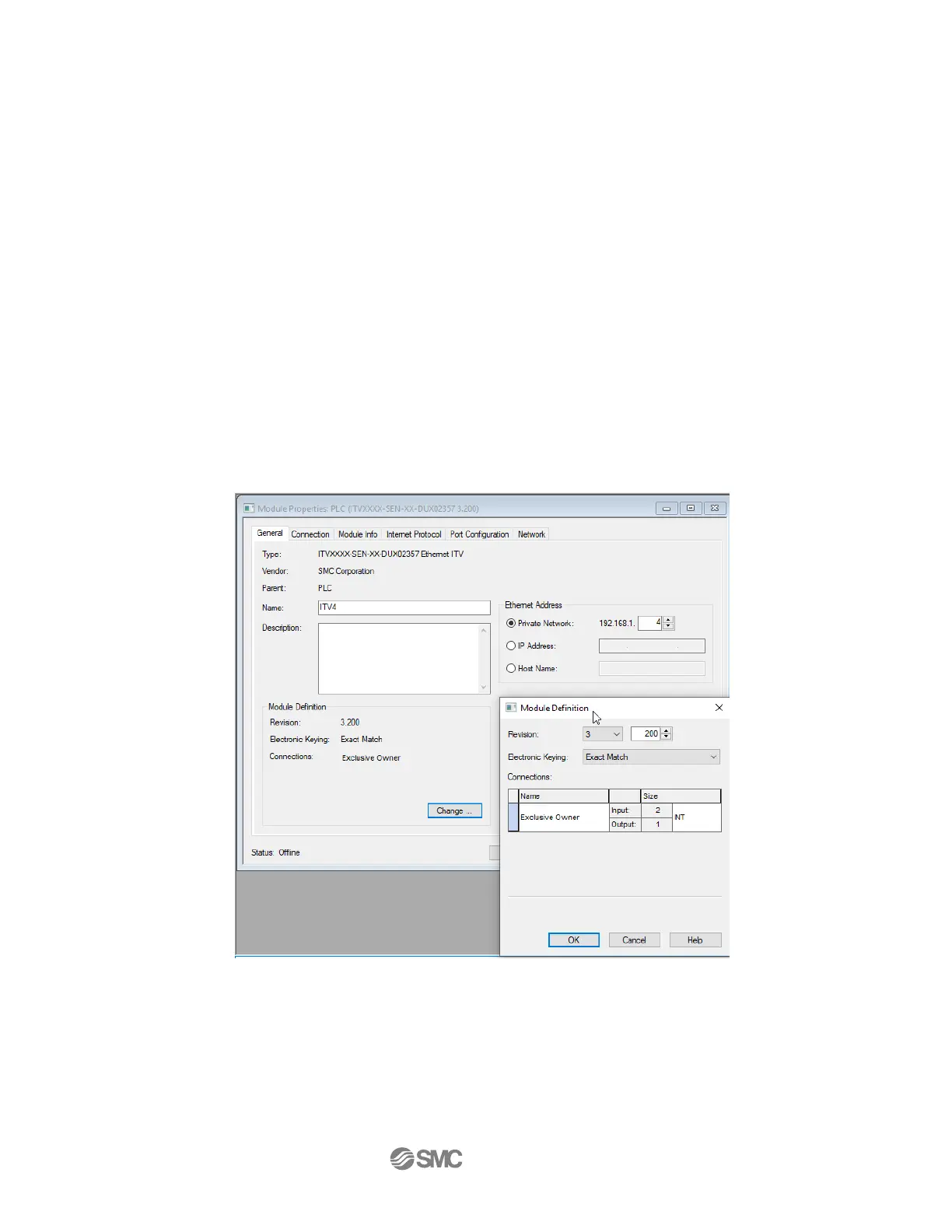

Figure 54:
26.9. Initial Power-up
The ITV web page is the mechanism used to configure an ITV and prepare it for installation. The
ITV web page may also be used to operate and control the ITV.
