1. Plug the Aux input cable into the Auxiliary Inputs multi-connector.
2. Open the SET menu and program a simple
CLOSE for Operation.
©EuroSMC, S.A. 2005 – PME-500-TR Basic Performance Test Procedures Page 4 of 4
A1
3. Set Duration to 2000 ms for the Close command.
4. Set the Trigger option to Aux1(ON).
5. Open the TEST screen and press the START /
STOP button. A message “Waiting for trigger”
should be displayed at the bottom of the screen.
6. Identify the two 4-mm terminals labelled as A1
at the free end of the Auxiliary Input test cable.

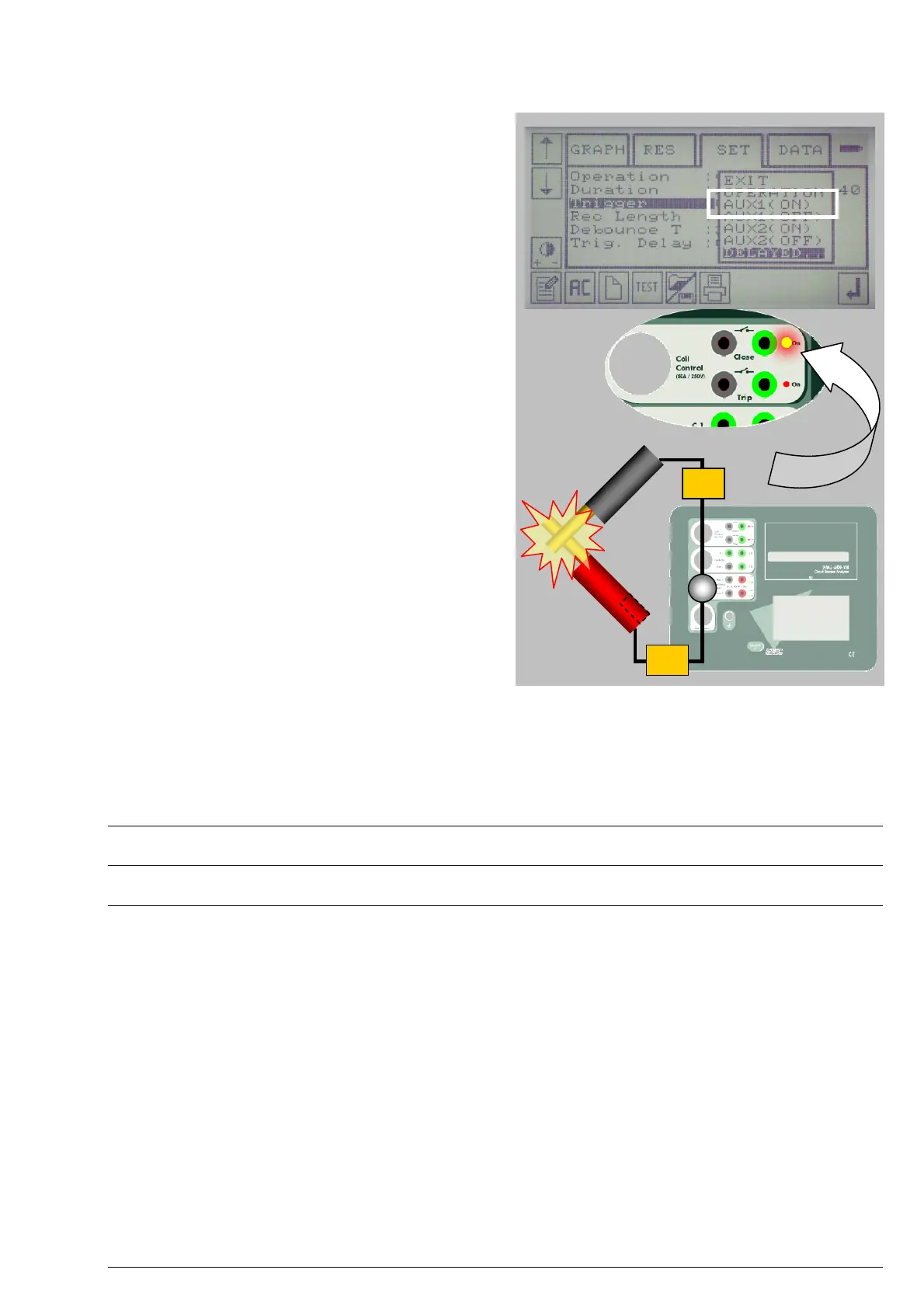

7. While observing the red Close LED on the right
of the black / green Close coil control inputs, put
the two A1 terminals in contact momentarily as
shown in the figure. The Close LED should turn
on for 2 seconds. To repeat, just press the
START / STOP button and try again.
8. Repeat steps 4-7, this time choosing Aux2(ON)
in step 4 and using the terminals labelled as A2.
9. Exit the TEST menu
10. Interconnect both A1 terminals by inserting one
into the back of the other. Do the same with both
A2 leads.
11. Enter the SET menu and set the Trigger option
to Aux1(OFF).
12. Open the TEST screen and press the START /
STOP button. A message “Waiting for trigger”
should be displayed at the bottom of the screen.
A1
13. While observing the red Close LED on the right of the black/green Close coil control inputs, undo the
connection of the two A1 terminals. The Close LED should turn on for 2 seconds. To repeat, re-connect
the terminals, press the START / STOP button and try again.
14. Repeat steps 11-13, this time choosing Aux2(OFF) for Trigger in the SET menu and disconnecting the
terminals labelled as A2 in step 13.
NOTE
Restore your normal settings and check the unit’s date/time for proper adjustment before putting the PME-500-TR back into the transport bag
