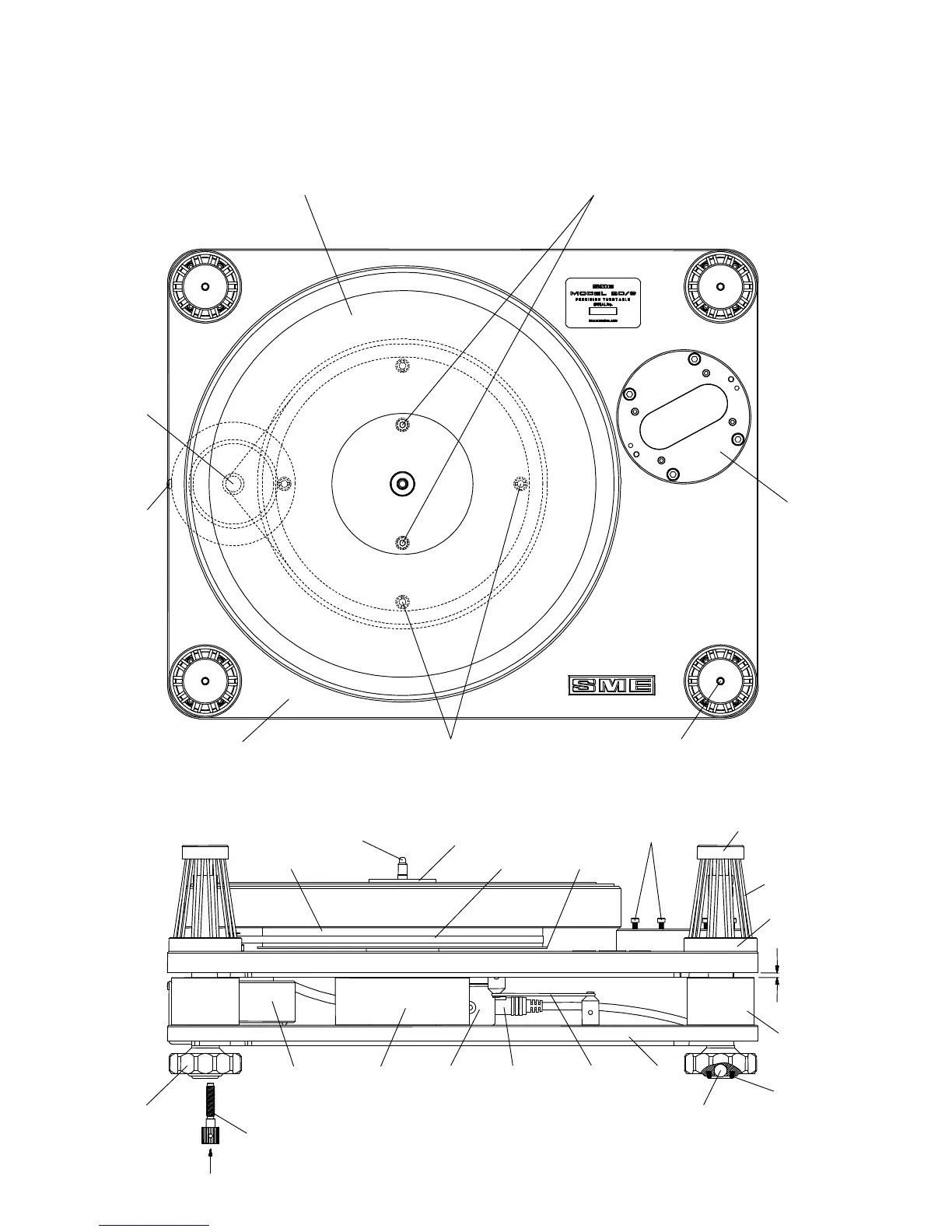

7. PARTS IDENTIFICATION
Platter
Suspension
Transit Screws
Arm Mounting
Plate
Motor
Pulley
Motor
Retaining
Band
Sub-Chassis Pulley Transit Screws
Insert 3mm Ball-Ended Wrench here
Turntable Spindle
Driven Pulley
Record Spindle Washer
Drive Belt
Pulley Flange
M3 x 12 Socket Cap
Upper Gallery
Cover
Lower Gallery
Cover
Suspension
Bands
Height Setting
Gauge
Column Base
Rubber
Insert Pad
Stainless
Steel Ball
Base
Centralising
Band
Low Voltage
Output Cable
Interconnection
Box
Suspension
Dashpot
Motor Transit
Screw
Supporting Feet
Motor
8
