Instructions for the installer

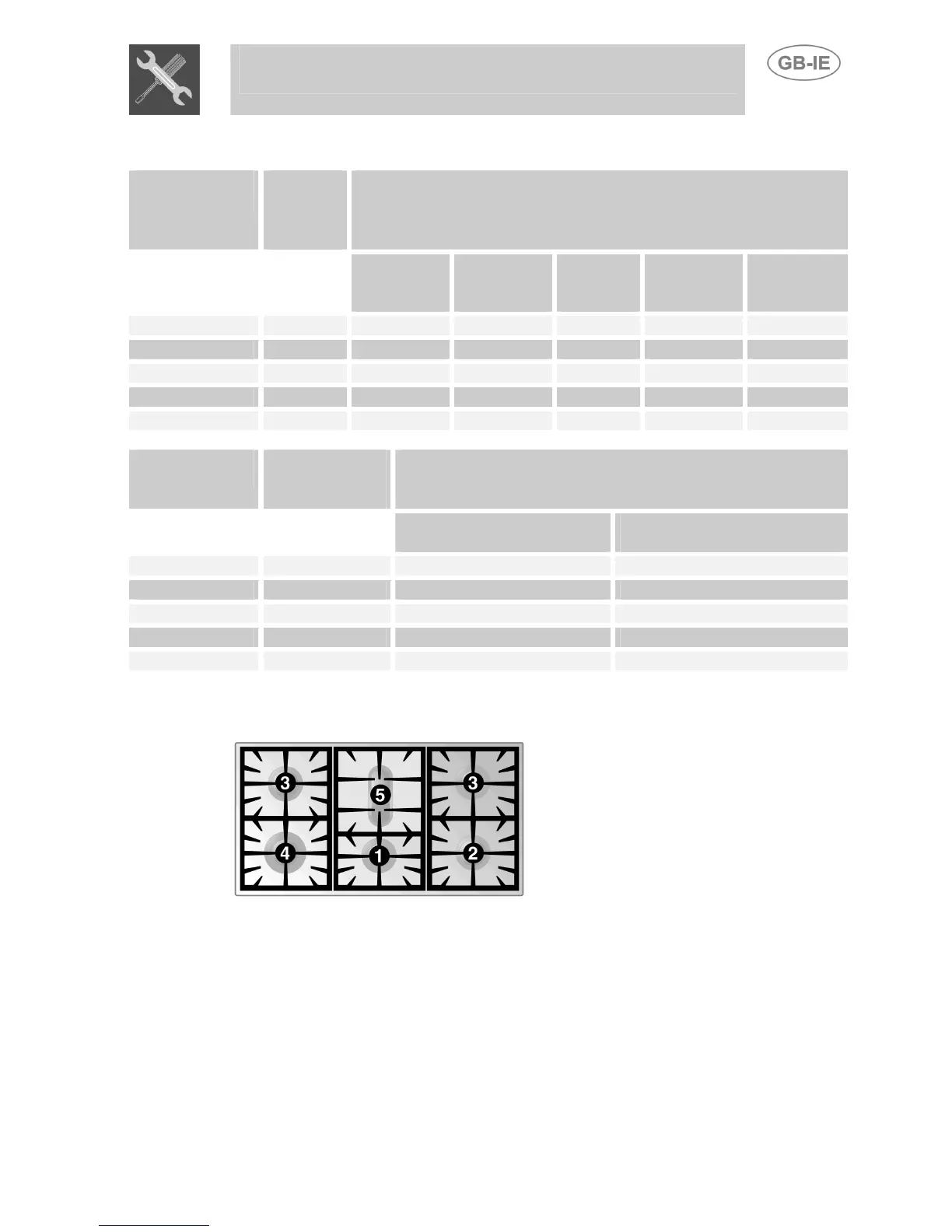

3.2 Burner and nozzle characteristics table
Burner
Rated
heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary 1.05 50 30 360 76 75
Semi-rapid 1.8 65 33 450 131 129
Rapid 3 85 45 750 218 215
Triple crown 3.3 91 68 1600 240 236
Fish pan 1.9 68 45 800 138 136
Burner
Rated heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced Flowrate
(W)
Auxiliary 1.05 72 360
Semi-rapid 1.8 97 450
Rapid 3 115 750
Triple crown 3.5 133 1600
Fish pan 1.9 94 800
3.3 Arrangement of burners on cooking hob
BURNERS
1 Auxiliary
2 Semi rapid
3 Rapid
4 Ultra rapid
5 Fish pan
