Instructions for the installer
2.2 Installing the oven
The oven is designed for installation into any piece of furniture as long as

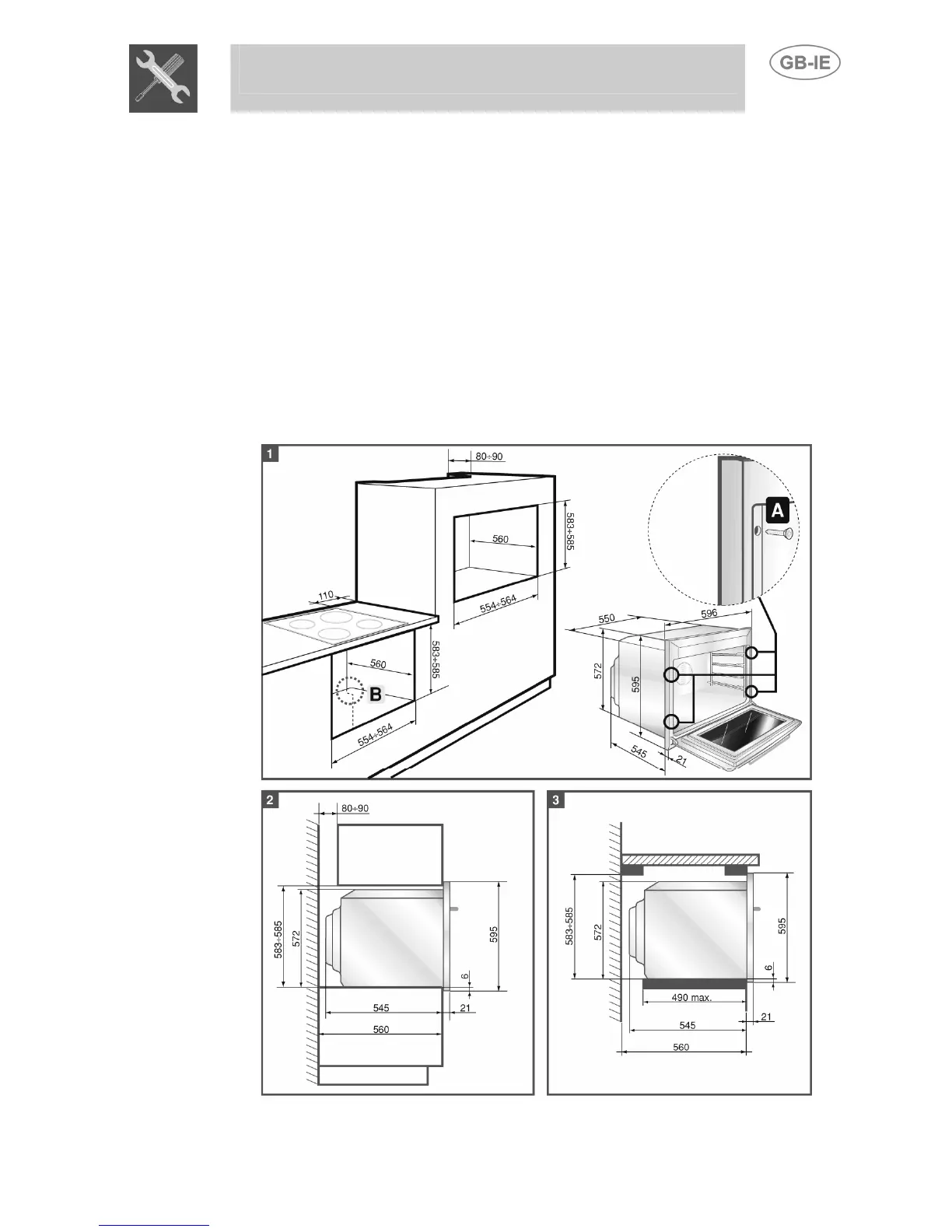

it is heat-resistant. Proceed according to the dimensions shown in
Figures 1, 2 and 3. For installing under a work top, follow the dimensions
given in Figure 3. For installing under a work top beneath a hob with
controls connected to the oven, ensure a minimum clearance from any
side walls of at least 110 mm as shown in Figure 1.
For installing in a column, follow the dimensions given in Figure 2
allowing for a clearance of 80 to 90 mm at the top and sides of the
column. Tighten the four screws (ref.A) inside the frame to secure (Fig.
1).
For installing beneath a separate hob, allow for a rear and bottom
clearance as shown in Figure 1 (ref. B). See relevant instructions for
fitting and securing the hob.
